ASRock P4 Combo [9/38] Asrock i o plu

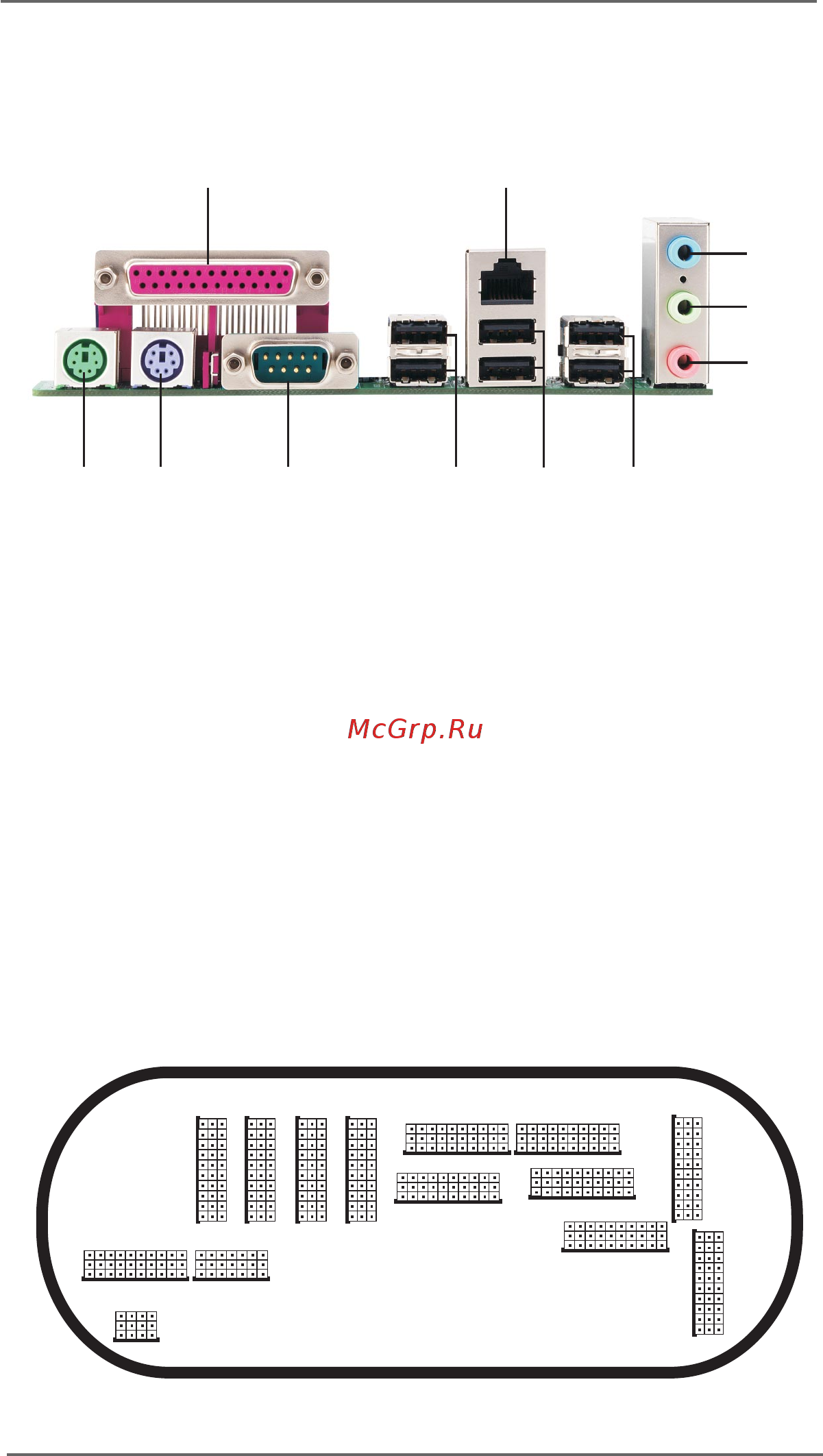

1.4 ASRock I/O Plus

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 Shared USB 2.0 Ports (USB45)

8910

11 11

11 11111111

11 11111111 11 11111111

11 11111111

11 11111

J8 J18

J9 J6 J10

J21

J13 J12

J11

Magnification of No. 6 on page 8

(J1-J6 Jumpers, J8-J13 Jumpers, J18 / J21 Jumpers)
