12

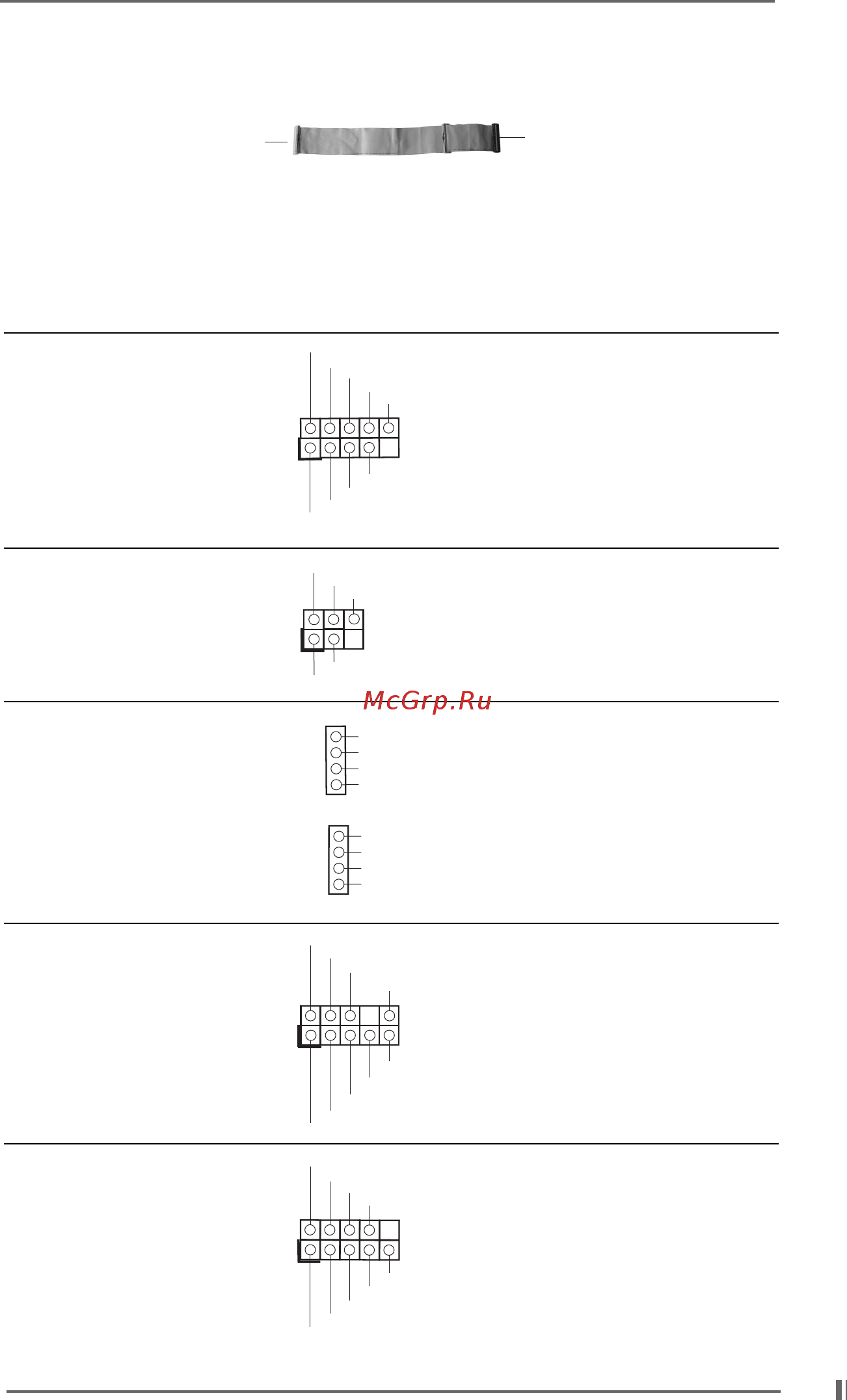

80-Pin ATA 100/133 cable
Note: To optimize compatibility and performance, please connect your hard
disk drive to the primary IDE connector (IDE1, blue) and CD-ROM to the
secondary IDE connector (IDE2, black).
USB header ASRock I/O
TM
already
(9-pin USB45) provided 4 default USB ports.
(see p.6 item 13) If the 4 USB ports on the rear
panel are not sufficient, an
USB header is available for 2
additional USB ports.
Infrared module connector This connector supports an
(5-pin IR1) optional wireless transmitting
(see p.6 item 14) and receiving infrared module.
Internal audio connectors These connectors allow you
(4-pin CD1, 4-pin AUX1) CD1 to receive stereo audio input
(CD1: see p.6 item 24) from sound sources such as
(AUX1: see p.6 item 23) a CD-ROM, DVD-ROM, TV
AUX1 tuner card, or MPEG card.
Front panel audio connector This is an interface for front
(9-pin AUDIO1) panel audio cable that allows
(see p.6 item 20) convenient connection and
control of audio devices.
System panel connector This connector accommo-
(9-pin PANEL1) dates several system front
(see p.6 item 12) panel functions.
Connect to the IDE devices
Connect to the motherboard
BlackBlue
USB_PWR
USB_PWR
P+5
P-5
P+4
P-4
GND
GND
DUMMY
1
DUMMY
GND
+5V
IRTX
IRRX
1
CD-R
GND
GND
CD-L
AUX-R
GND
GND
AUX-L
GND
DUMMY
+5VA
BACKOUT-R
BACKOUT-L
AUD-OUT-L
AUD-OUT-R
MIC-POWER
MIC
1
GND
PWRBTN#
PLED-
PLED+
DUMMY
RESET#
GND
HDLED+
HDLED-
1
