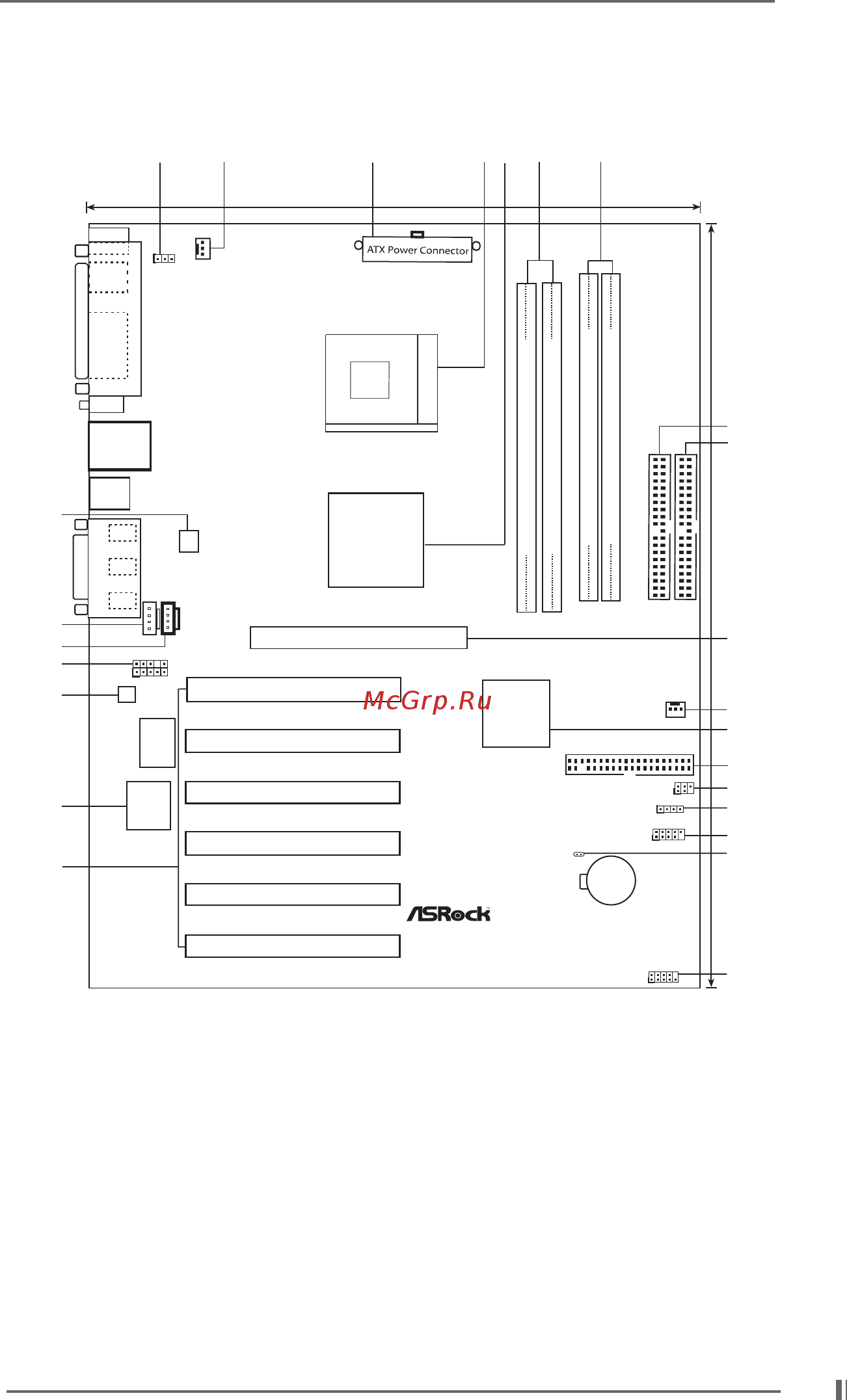

1.3 Motherboard Layout
1 ATX power connector (ATXPWR1) 14 Infrared module connector (IR1)
2 CPU socket 15 External speaker connector (SPEAKER1)
3 CPU fan connector (CPU_FAN1) 16 South Bridge controller
4 North Bridge controller 17 Clear CMOS (CLRCMOS1)
5 184-pin DDR DIMM slots (DDR1-2, Blue) 18 PCI slots (PCI 1- 6)
6 168-pin SDRAM DIMM slots (SDR1-2, Black) 19 Audio CODEC
7 Primary IDE connector (IDE1, Blue) 20 Front panel audio connector (AUDIO1)
8 Secondary IDE connector (IDE2, Black) 21 LAN PHY
9 Chassis fan connector (CHA_FAN1) 22 PS2_USB_PWR1 jumper
10 Floppy connector (FLOPPY1) 23 Internal audio connectors: AUX1 (White)
11 Flash Memory 24 Internal audio connectors: CD1 (Black)
12 System panel connector (PANEL1) 25 AGP slot
13 USB 2.0 header (USB45)
SiS
645DX
Chipset
PS2_USB_PWR1
Accelerated Graphics Port
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
30.5cm (12.0 in)
24.4cm (9.6 in)
Audio CODEC
AUX1
Mic
In
GAME AUDIO1
USB01
LAN
USB23
Mic in
Line out
GAME AUDIO1
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
COM1
SiS
South
Bridge
Audio1
CPU_FAN1
PANEL 1
SPEAKER1
Line
In
Line in
1 2
3
4
12
18
19
20
21
11
23
24
22
CMOS
Battery
IDE1
FLOPPY1
10
1
HDLED RST
PLED PWRBTN
USB45
IR1
mPGA478B
PCI 6
1
1
1
1
CLRCMOS1
CHA_FAN1
IDE2
SDR DIMM1 (64 bit, 168-pin module)
SDR DIMM2 (64 bit, 168-pin module)
6
32
01
10
32
DDR DIMM1 (64/72 bit, 184-pin module)
DDR DIMM2 (64/72 bit, 184-pin module)
5
2MB
BIOS
Super
I/O
CD1
LAN
PHY
1
PE PRO-HT
ATA 13 3
USB2.0
5.1CH
17
13
15
14
9
7
8
16
25
HT
