ASRock PE PRO-HT [11/25] Connectors

FLOPPY1

Pin1

Red marking

IDE1

PIN1

IDE2

PIN1

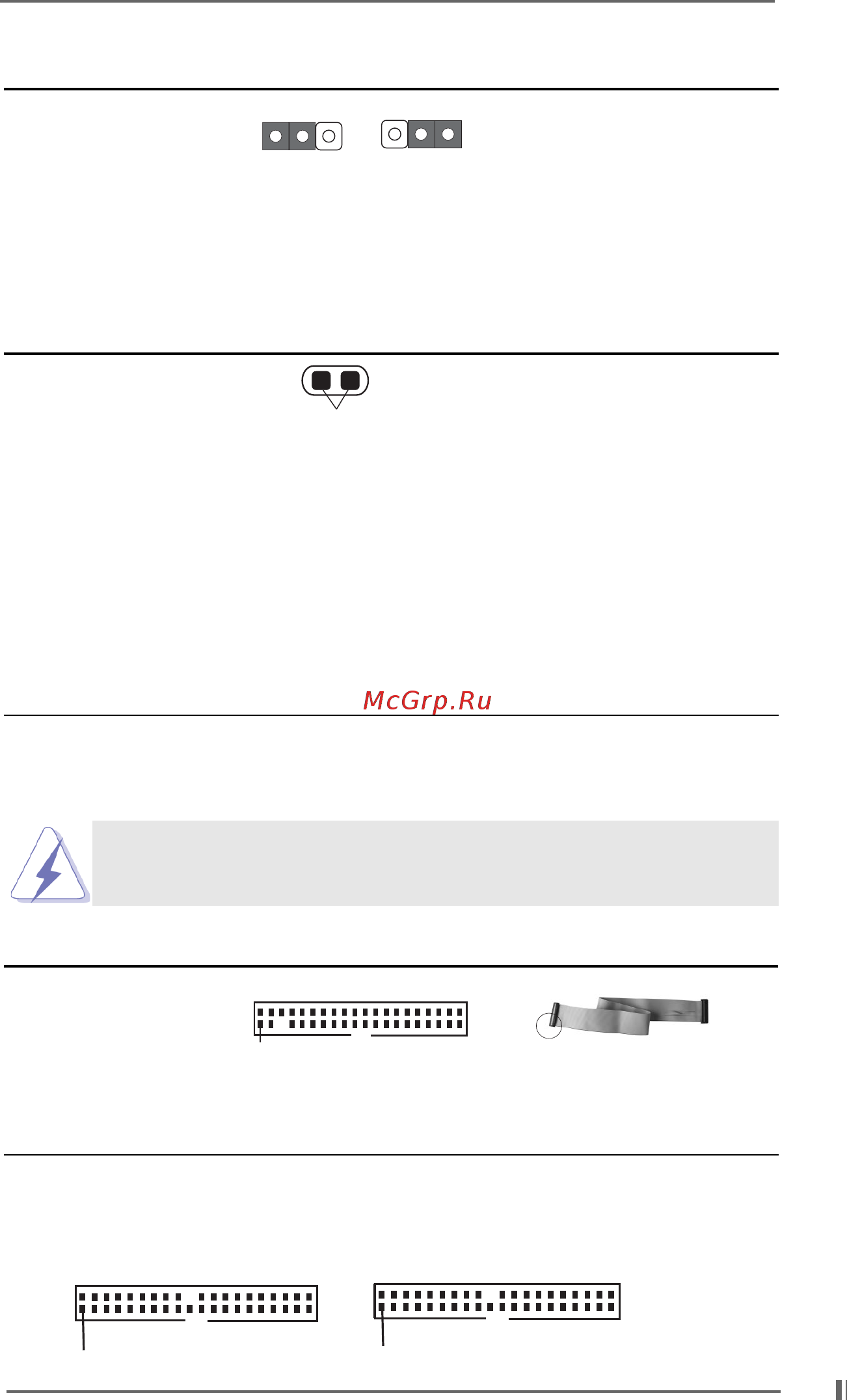

Jumper Setting Description

PS2_USB_PWR1 Short pin2, pin3 to enable

(see p.6 item 22) +5VSB (standby) for PS/2 or

USB wake up events.

Note: To select +5VSB, it requires 2 Amp and higher standby current provided

by power supply.

Clear CMOS Description

CLRCMOS1 To clear and reset the system

(see p.6 item 17) parameters to default setup,

please turn off the computer and

unplug the power cord, then

short the solder points for more

than 3 seconds by using metal

material, e.g., a paper clip.

Note:These solder points allow you to clear the data in CMOS. The data in CMOS

includes system setup information such as system password, date, time,

and system setup parameters.

2.8 Connectors

Connectors are NOT jumpers. DO NOT place jumper caps over

these connectors.

Connector Figure Description

FDD connector

(33-pin FLOPPY1)

(see p.6 item 10)

Note: Match the red marking on the floppy ribbon cable with Pin1.

Primary IDE connector (Blue) Secondary IDE connector (Black)

(39-pin IDE1) (39-pin IDE2)

(see p.6 item 7) (see p.6 item 8)

+5V

1_2

+5VSB

2_3

solder points
