ASRock Fatal1ty B450 Gaming-ITX/ac [10/172] I o panel

English

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

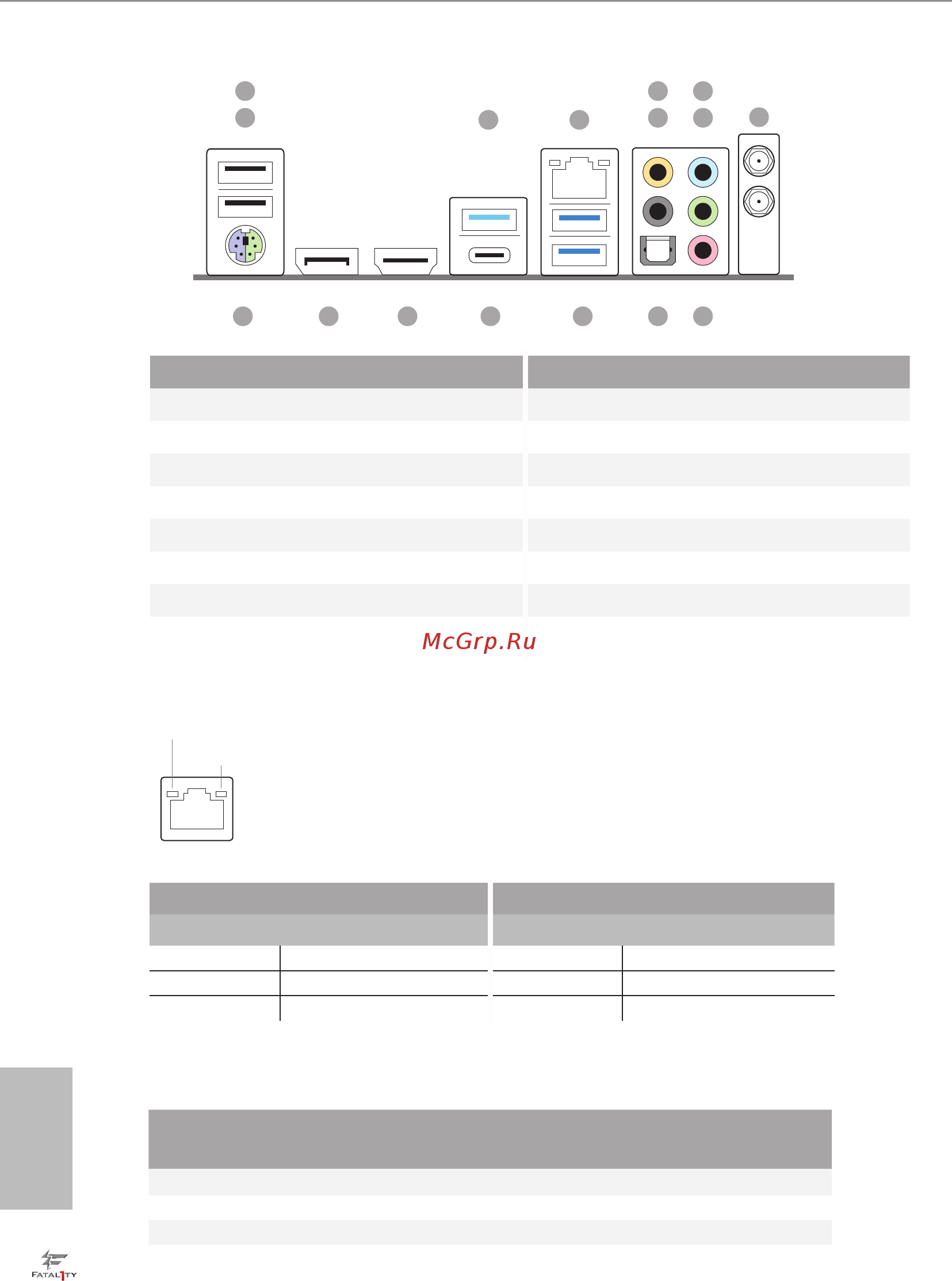

I/O Panel

No. Description No. Description

1 Fatal1ty Mouse Port (USB_1) 9 Antenna Ports

2 USB 2.0 Port (USB_2) 10 Microphone (Pink)

3 USB 3.1 Gen2 Type-A Port (USB31_TA_1) 11 Optical SPDIF Out Port

4 LAN RJ-45 Port* 12 USB 3.1 Gen1 Ports (USB3_12)

5 Central / Bass (Orange) 13 USB 3.1 Gen2 Type-C Port (USB31_TC_1)

6 Rear Speaker (Black) 14 HDMI Port

7 Line In (Light Blue) 15 DisplayPort 1.2

8 Front Speaker (Lime)** 16 PS/2 Mouse/Keyboard Port

101112131516

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 8)

Rear Speaker

(No. 6)

Central / Bass

(No. 5)

Line In

(No. 7)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V
