English
34

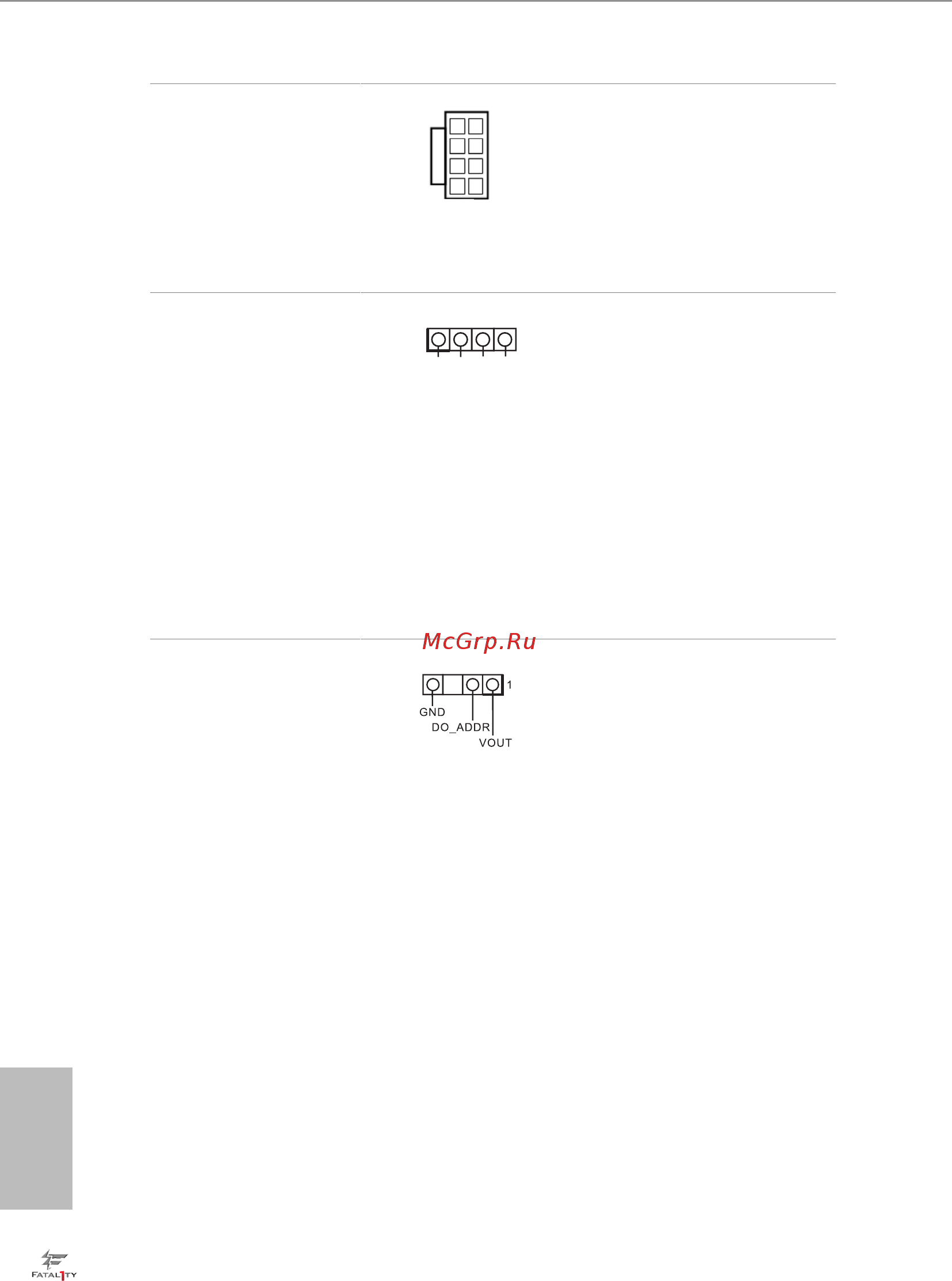

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.7, No. 1)
is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
AMD Fan LED Header
(4-pin AMD_FAN_
LED1)
(see p.7, No. 4)
AMD Fan LED Header is used to
connect RGB LED
extension cable that comes with
AMD heatsink. e cable
connection allows users to choose
from various LED lighting
eects.
Caution: Never install the Fan
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
Addressable LED Header
(3-pin ADDR_LED1)
(see p.7, No. 2)
is header is used to connect
Addressable
LED extension cable
which allows users to choose
from various LED lighting
eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 49 for fur-
ther instructions on this header.
12V G R B
1
5
8
1
