Fatal1ty B450 Gaming-ITX/ac Series
39
English
3.2 F-Stream
F-Stream is ASRock’s multi purpose soware suite with a new interface, more new
features and improved utilities.
3.2.1 Installing F-Stream
F-Stream can be downloaded from ASRock Live Update & APP Shop. Aer the
installation, you will nd the icon “F-Stream“ on your desktop. Double-click the
“F-Stream“ icon, F-Stream main menu will pop up.
3.2.2 Using F-Stream
ere are ve sections in F-Stream main menu: Operation Mode, OC Tweaker,
System Info, FAN-Tastic Tuning and Settings.

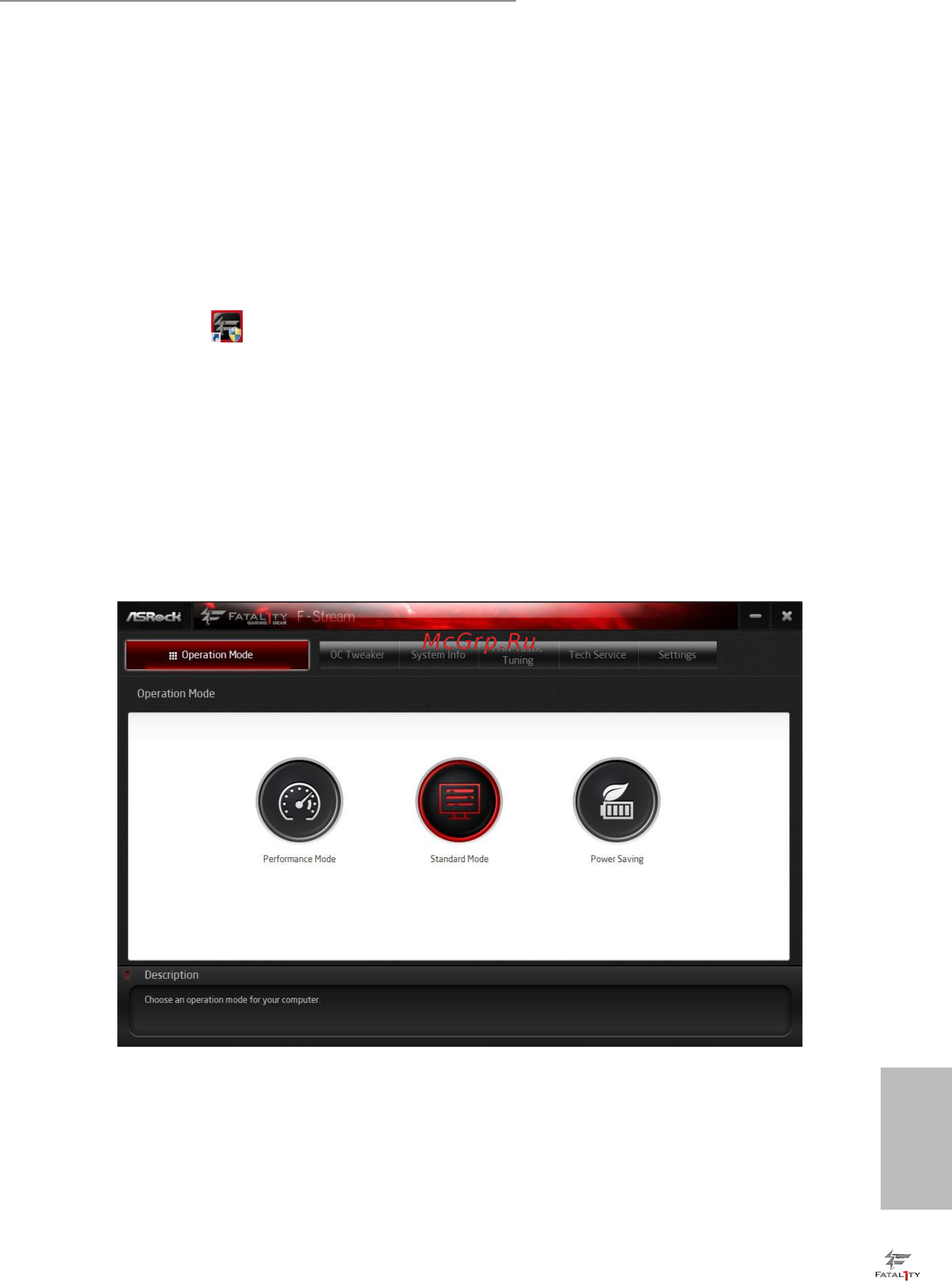

Operation Mode
Choose an operation mode for your computer.
