![ASRock 870 Extreme3 R2.0 [25/59] Onboard headers and connectors 2 onboard headers and connectors 2 onboard headers and connectors 2 onboard headers and connectors 2 onboard headers and connectors](/img/pdf.png)
ASRock 870 Extreme3 R2.0 [25/59] Onboard headers and connectors 2 onboard headers and connectors 2 onboard headers and connectors 2 onboard headers and connectors 2 onboard headers and connectors
![ASRock 870 Extreme3 R2.0 [25/59] Onboard headers and connectors 2 onboard headers and connectors 2 onboard headers and connectors 2 onboard headers and connectors 2 onboard headers and connectors](/views2/1691337/page25/bg19.png)
2525
2525
25
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB6_7) ports on the I/O panel, there are
(see p.12 No. 29) three USB 2.0 headers on this
motherboard. Each USB 2.0
header can support two USB
2.0 ports.
(9-pin USB8_9)
(see p.12 No. 28)
(9-pin USB10_11)
(see p.12 No. 27)
1
USB_PWR
P-8
GND
DUMMY
USB_PWR
P+8
GND
P-9
P+9
1
USB_ P WR
P-10
G ND
DUMMY
USB_ P WR
P +10
G ND
P-11
P +11
USB_ P WR
USB_ P WR
P +7
P-7
P +6
P-6
GND
GND
DUMMY
1

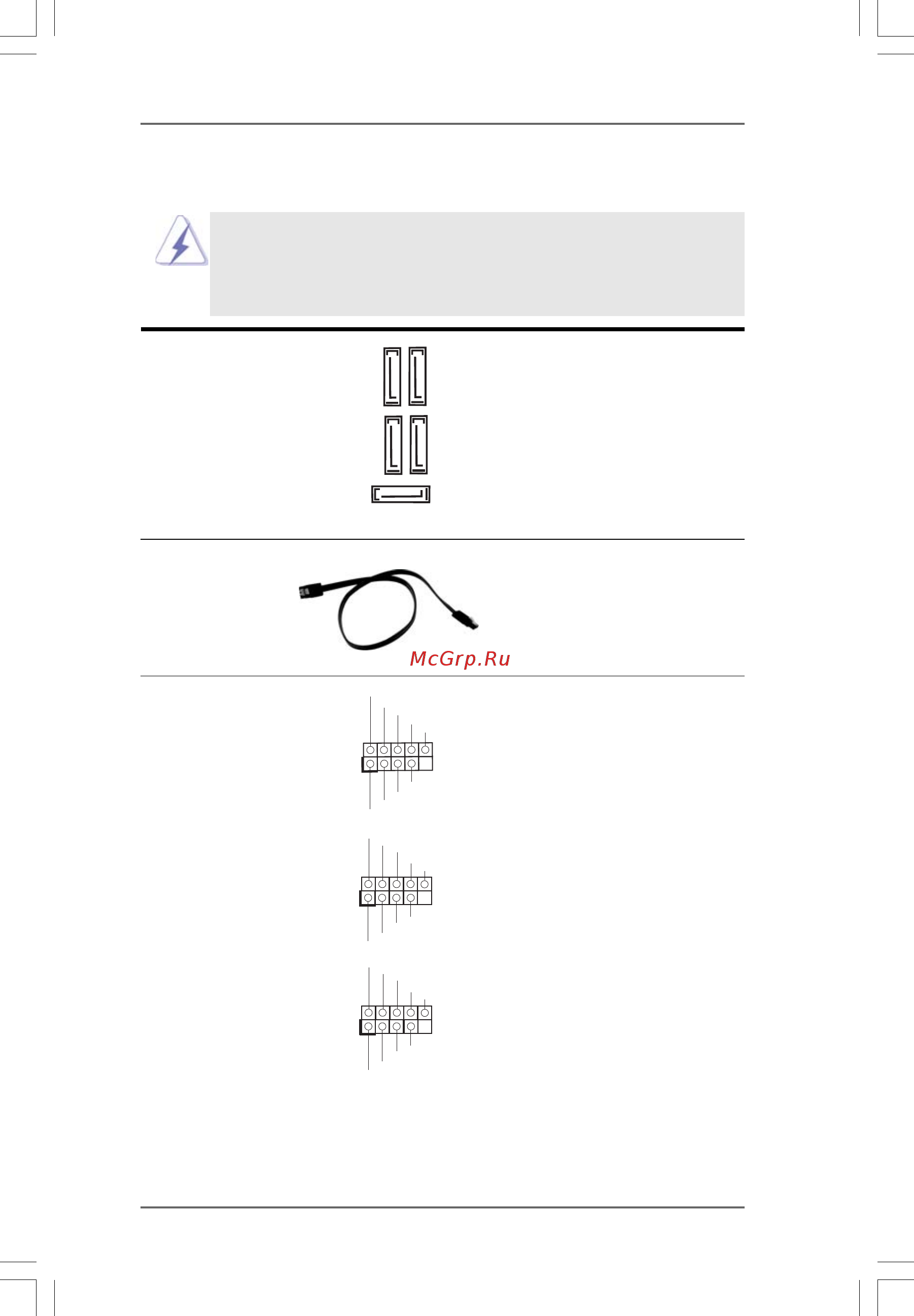

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors
2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors
2.8 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors These five Serial ATA3
(SATA3_1: see p.12, No. 18) (SATA3) connectors support
(SATA3_2_3: see p.12, No. 17) SATA data cables for internal
(SATA3_4_5: see p.12, No. 16) storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA3
(Optional) hard disk or the SATA3
connector on this motherboard.
SATA3_1
SATA3_2
SATA3_3
SATA3_4
SATA3_5
