4949
4949
49
3.4.23.4.2
3.4.23.4.2
3.4.2

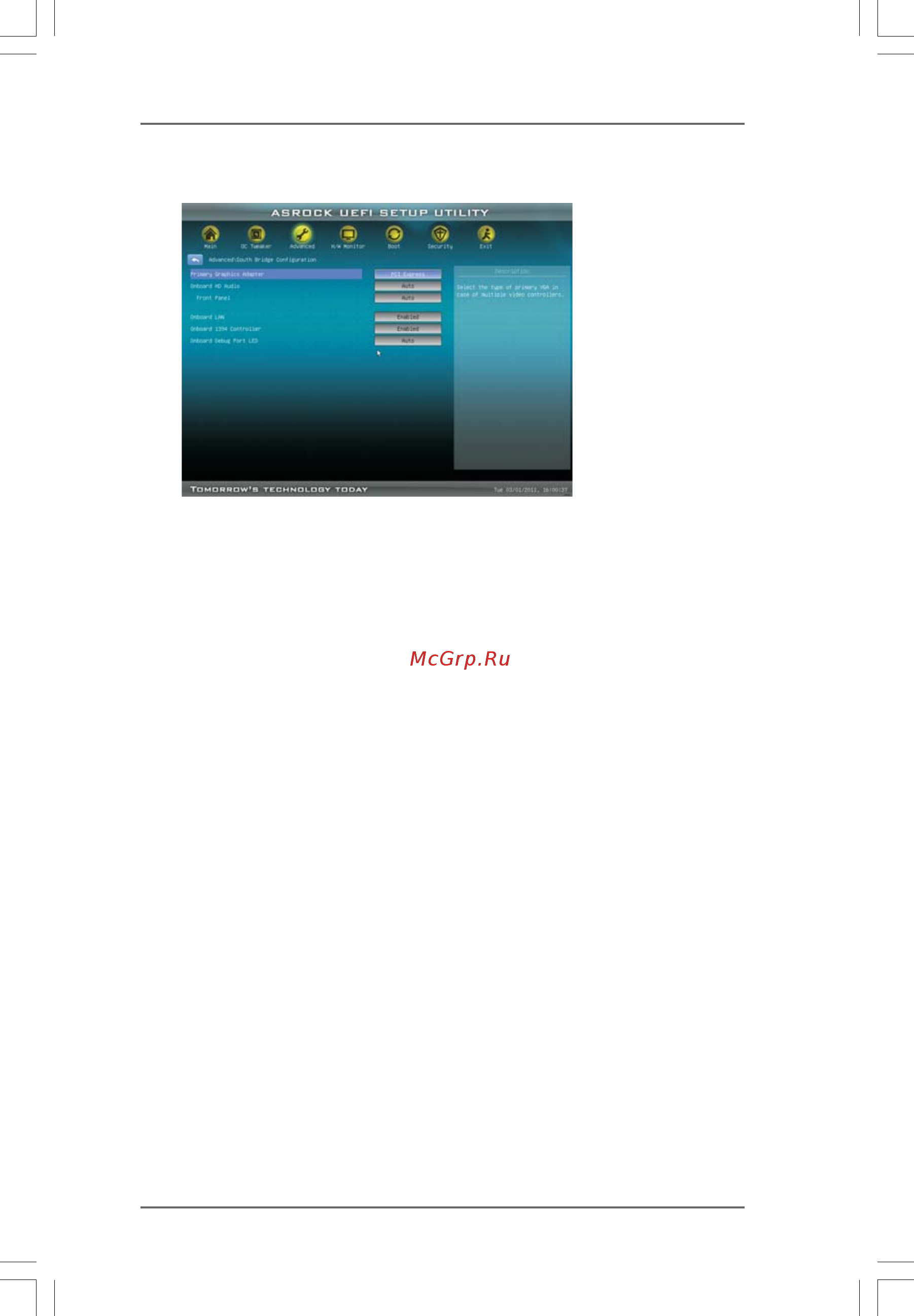

South Bridge ConfigurationSouth Bridge Configuration
South Bridge ConfigurationSouth Bridge Configuration
South Bridge Configuration
Primary Graphics Adapter
This item will switch the PCI Bus scanning order while searching for video
card. It allows you to select the type of Primary VGA in case of multiple
video controllers. The default value of this feature is [PCI Express].
Configuration options: [PCI] and [PCI Express].
Onboard HD Audio
Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If
you select [Auto], the onboard HD Audio will be disabled when PCI Sound
Card is plugged.
Front Panel
Select [Auto] or [Disabled] for the onboard HD Audio Front Panel.
Onboard LAN
This allows you to enable or disable the onboard LAN feature.
Onboard 1394 controller
This allows you to enable or disable the onboard 1394 controller.
Onboard Debug Port LED
This allows you to enable or disable the onboard Debug Port LED.
