ASRock 870 Extreme3 R2.0 [28/59] 2 8 2 8 2 8 2 8

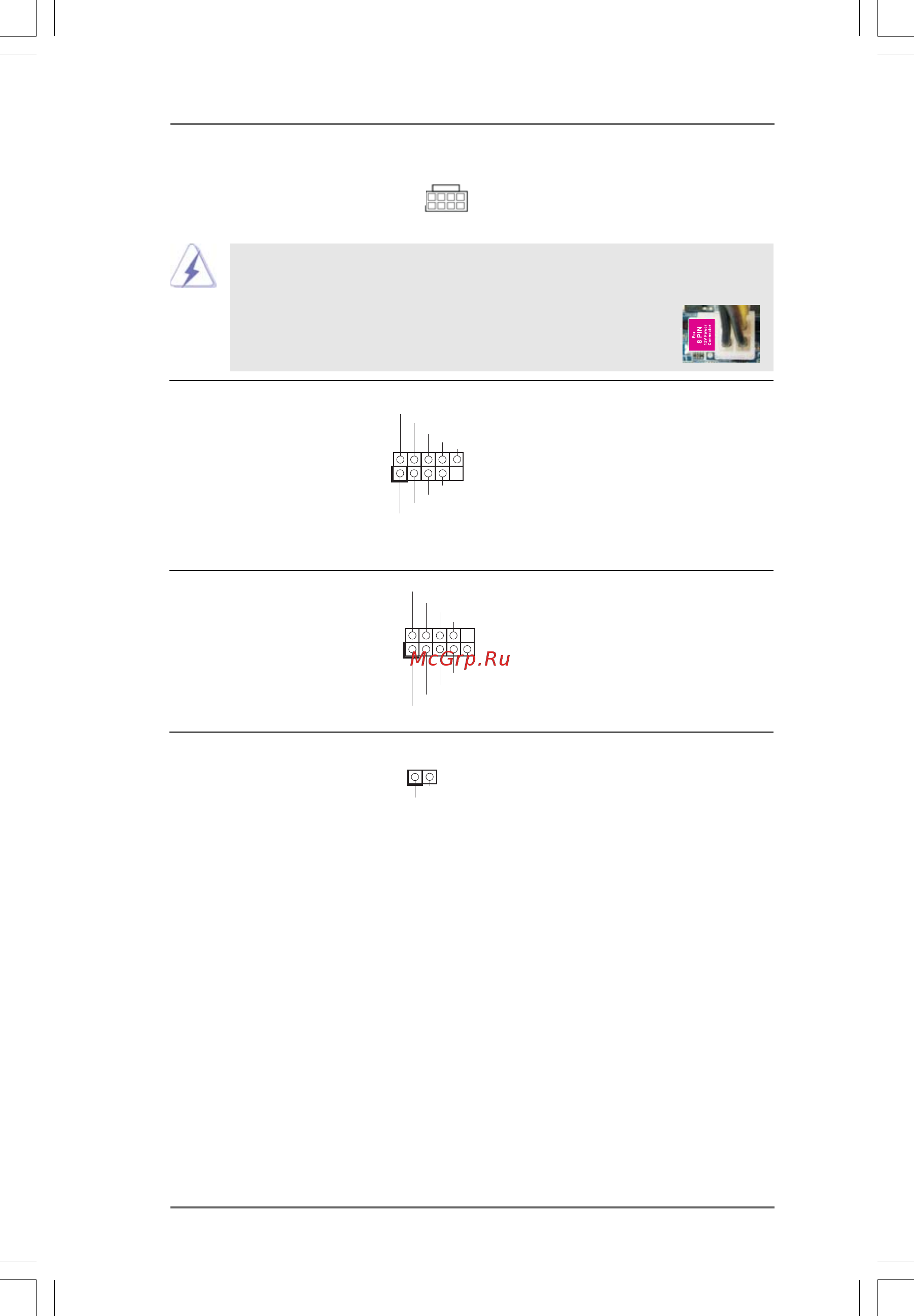

![ASRock 870 Extreme3 R2.0 [28/59] 2 8 2 8 2 8 2 8](/views2/1691337/page28/bg1c.png)
2828
2828
28
ATX 12V Power Connector Please connect an ATX 12V
(8-pin ATX12V1) power supply to this connector.
(see p.12 No. 1)
8 5
4 1
4-Pin ATX 12V Power Supply Installation
Though this motherboard provides 8-pin ATX 12V power connector, it can still work
if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power
supply, please plug your power supply along with Pin 1 and Pin 5.
8 5
4 1
IEEE 1394 Header Besides one default IEEE 1394
(9-pin FRONT_1394) port on the I/O panel, there is one
(see p.12 No. 25) IEEE 1394 header
(FRONT_1394) on this
motherboard. This IEEE 1394
header cansupport one IEEE
1394 port.
+12V
GND
+12V
1
RXTPBM_0
GND
RXTPAM_0
RXTPBP_0
GND
RXTPAP_0
Serial port Header This COM1 header supports a
(9-pin COM1) serial port module.
(see p.12 No.30)
CCTS #1
DDSR#1
DDTR #1
RRX D 1
DDCD#1
TTXD 1
GN D
RRTS #1
RRI#1
1
HDMI_SPDIF Header HDMI_SPDIF header, providing
(2-pin HDMI_SPDIF1) SPDIF audio output to HDMI VGA
(see p.12 No. 33) card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
SPDIFOUT
GND
1
