3.4.43.4.4
3.4.43.4.4
3.4.4

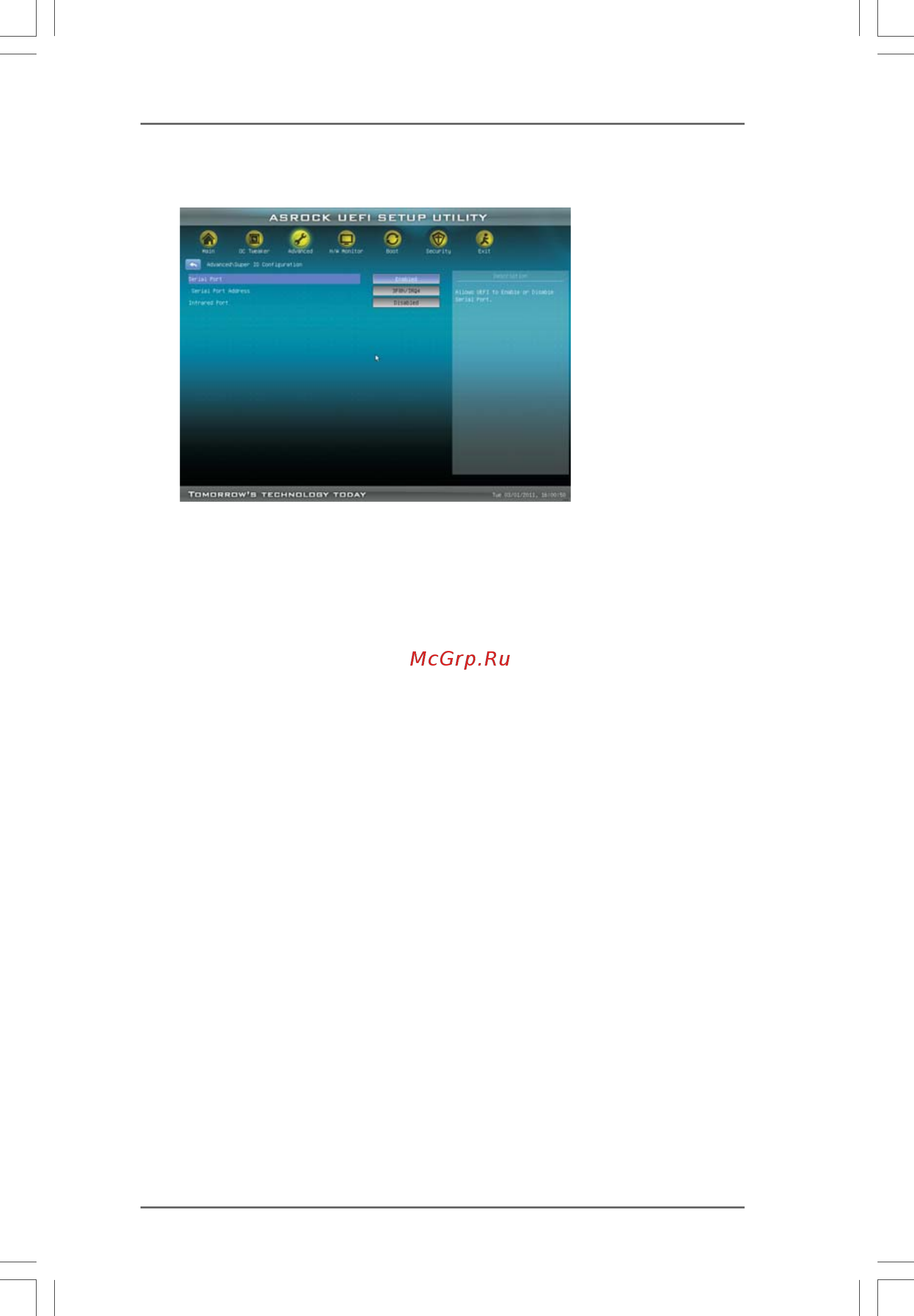

Super IO ConfigurationSuper IO Configuration
Super IO ConfigurationSuper IO Configuration
Super IO Configuration
Serial Port
Use this item to enable or disable the onboard serial port.
Serial Port Address
Use this item to set the address for the onboard serial port.
Configuration options: [Auto], [3F8 / IRQ4] and [3E8 / IRQ4].
Infrared Port
Use this item to enable or disable the onboard infrared port.
Infrared Port Address
Use this item to set the address for the onboard infrared port.
Confi guration options: [Auto], [2F8 / IRQ3] and [2E8 / IRQ3].
