Infrared Module Header This header supports an

(5-pin IR1) optional wireless transmitting

(see p.2 No. 32) and receiving infrared module.

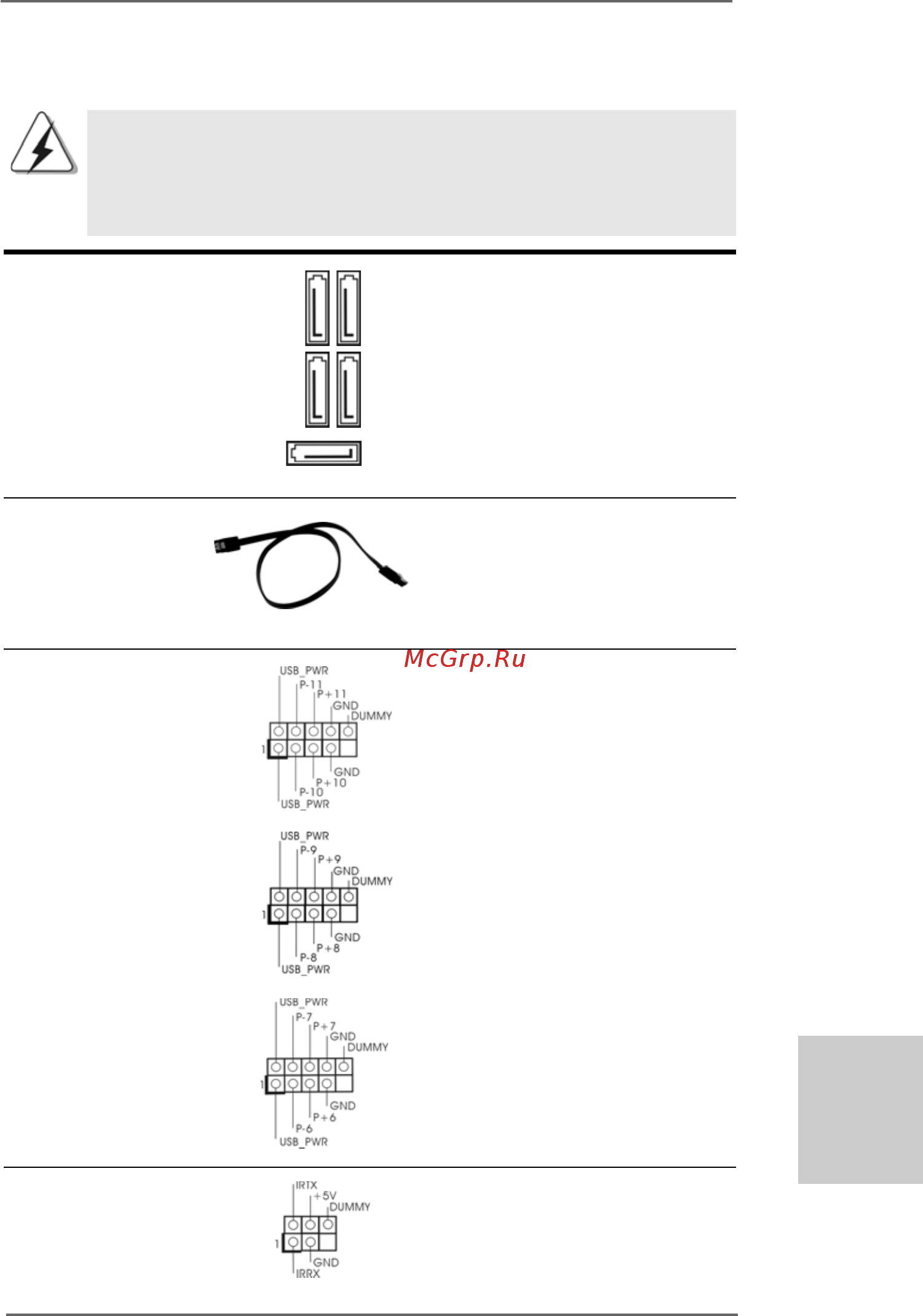

2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors

2.9 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA3

(Optional) hard disk or the SATA3

connector on this motherboard.

SATAIII_1 SATAIII_3

Serial ATA3 Connectors These five Serial ATA3

(SATAIII_1: see p.2, No. 17) (SATA3) connectors support

(SATAIII_2: see p.2, No. 16) SATA data cables for internal

(SATAIII_3: see p.2, No. 14) storage devices. The current

(SATAIII_4: see p.2, No. 15) SATA3 interface allows up to

(SATA3_5: see p.2, No. 18) 6.0 Gb/s data transfer rate.

SATA3_5

SATAIII_2 SATAIII_4

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB10_11) ports on the I/O panel, there are

(see p.2 No. 27) three USB 2.0 headers on this

motherboard. Each USB 2.0

header can support two USB

2.0 ports.

(9-pin USB8_9)

(see p.2 No. 29)

(9-pin USB6_7)

(see p.2 No. 30)
