2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 3 PCI slots and 3 PCI Express slots on this motherboard.

PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE Slots:

PCIE1 (PCIE x1 slot; Green) is used for PCI Express cards with x1 lane

width cards, such as Gigabit LAN card and SATA2 card.

PCIE2 (PCIE x16 slot; Green) is used for PCI Express x16 lane width

graphics cards, or used to install PCI Express graphics cards to

support CrossFire

function.

PCIE3 (PCIE x16 slot; Blue) is used for PCI Express x1 lane width

cards, such as Gigabit LAN card, SATA2 card, etc., or used to install

PCI Express graphics cards to support CrossFire

function.

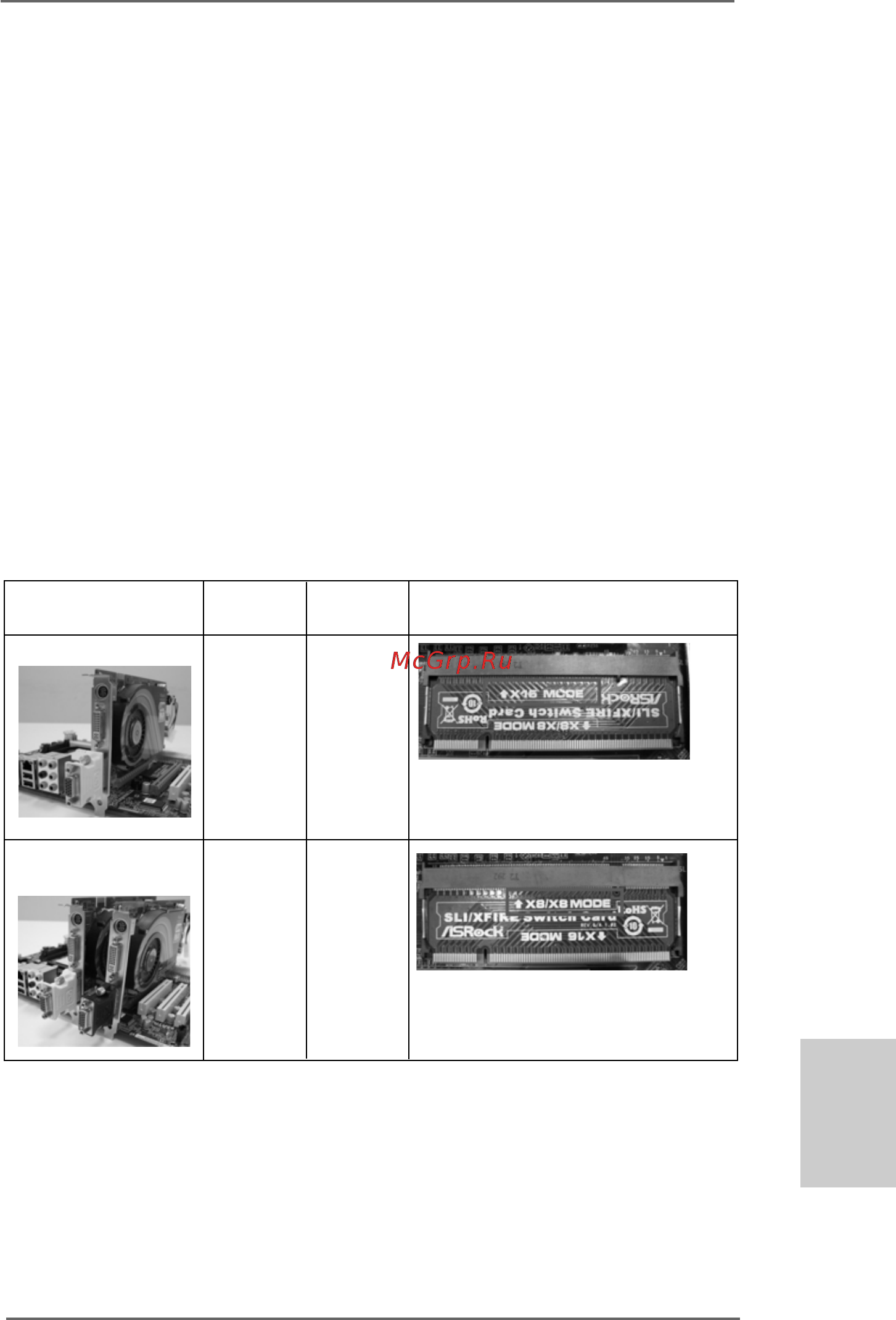

PCIE2 / PCIE3 / SLI/XFire Switch Card Retention Slot

Configurations

PCIE2 Slot PCIE3 Slot SLI/XFire Switch Card

(Green) (Blue) Retention Slot

Single Graphics Card PCIE x16 PCIE x1

Dual Graphics Cards PCIE x8 PCIE x8

in CrossFire

Mode

(Default)
