ASRock AOD790GX/128M Motherboard

EnglishEnglish

English

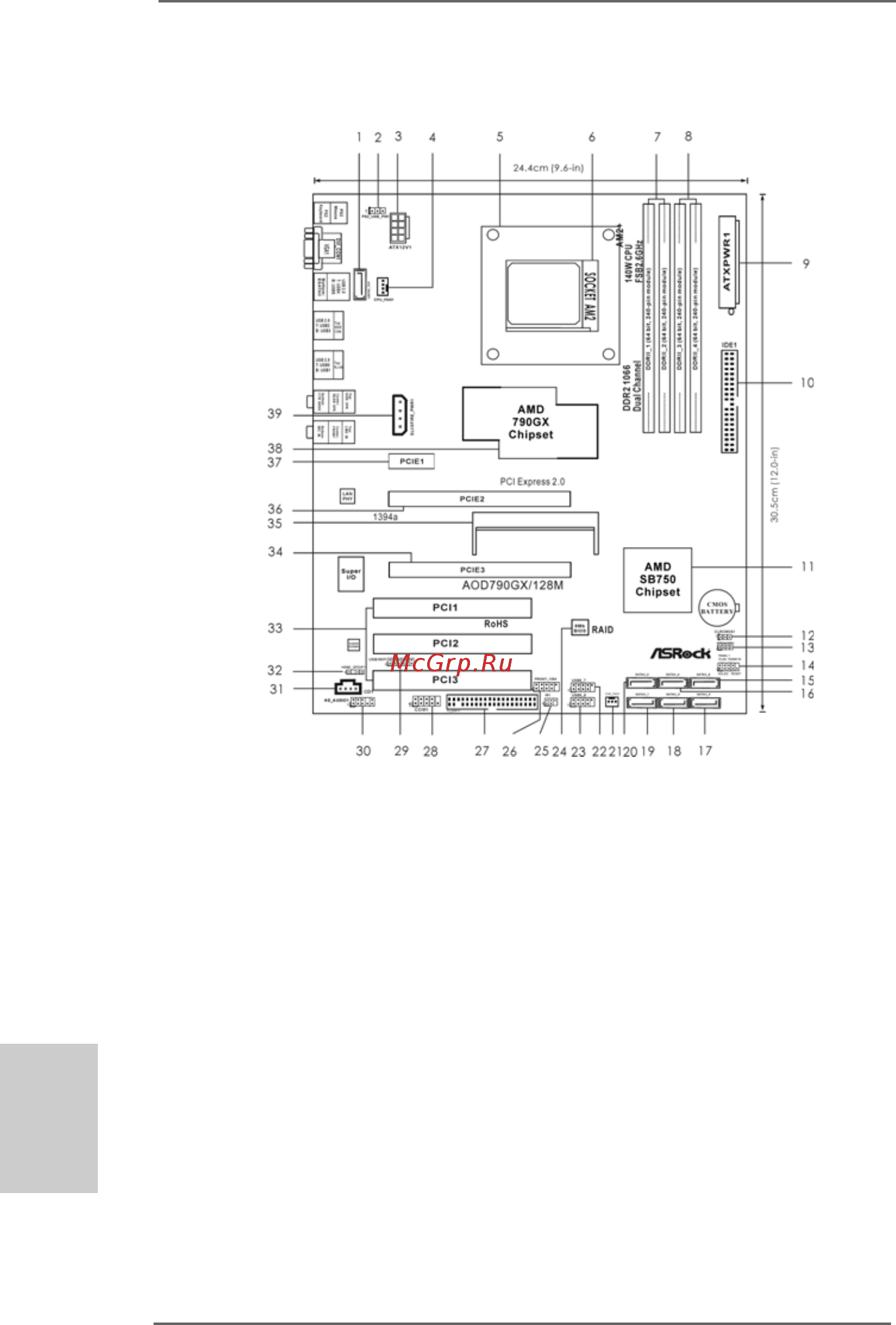

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 eSATAII Connector (eSATAII_TOP, Orange) 21 Chassis Fan Connector (CHA_FAN1)

2 PS2_USB_PW1 Jumper 22 USB 2.0 Header (USB6_7, Blue)

3 ATX 12V Power Connector (ATX12V1) 23 USB 2.0 Header (USB8_9, Blue)

4 CPU Fan Connector (CPU_FAN1) 24 SPI Flash Memory (8Mb)

5 CPU Heatsink Retention Module 25 Infrared Module Header (IR1)

6 AM2 940-Pin CPU Socket 26 Front Panel IEEE 1394 Header

7 2 x 240-pin DDR2 DIMM Slots (FRONT_1394, Red)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 27 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDR2 DIMM Slots 28 Serial Port Connector (COM1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 29 USB/WiFi Header (USB/WIFI, Yellow)

9 ATX Power Connector (ATXPWR1) 29 Internal Audio Connector: CD1 (Black)

10 Primary IDE Connector (IDE1, Blue) 30 Front Panel Audio Header

11 Southbridge Controller (HD_AUDIO1, Lime)

12 Clear CMOS Jumper (CLRCMOS1) 31 Internal Audio Connector: CD1 (Black)

13 Chassis Speaker Header 32 HDMI_SPDIF Header

(SPEAKER 1, Purple) (HDMI_SPDIF1, Yellow)

14 System Panel Header (PANEL1, Orange) 33 PCI Slots (PCI1- 3)

15 Sixth SATAII Connector (SATAII_6, Orange) 34 PCI Express 2.0 x16 Slot (PCIE3; Blue)

16 Fourth SATAII Connector (SATAII_4, Red) 35 SLI/XFire Switch Card Retention Slot

17 Fifth SATAII Connector (SATAII_5, Red) 36 PCI Express 2.0 x16 Slot (PCIE2; Green)

18 Third SATAII Connector (SATAII_3, Red) 37 PCI Express 2.0 x1 Slot (PCIE1; Green)

19 Primary SATAII Connector (SATAII_1, Red) 38 Northbridge Controller

20 Secondary SATAII Connector (SATAII_2, Red) 39 SLI / XFIRE Power Connector
