MEAN WELL HBG-240-24 Datasheet онлайн
■ Model Encoding
■ Description
■ Features ■ Applications
File Name:HBG-240-SPEC 2016-12-15
LED bay lighting
LED stage lighting
LED spot lighting

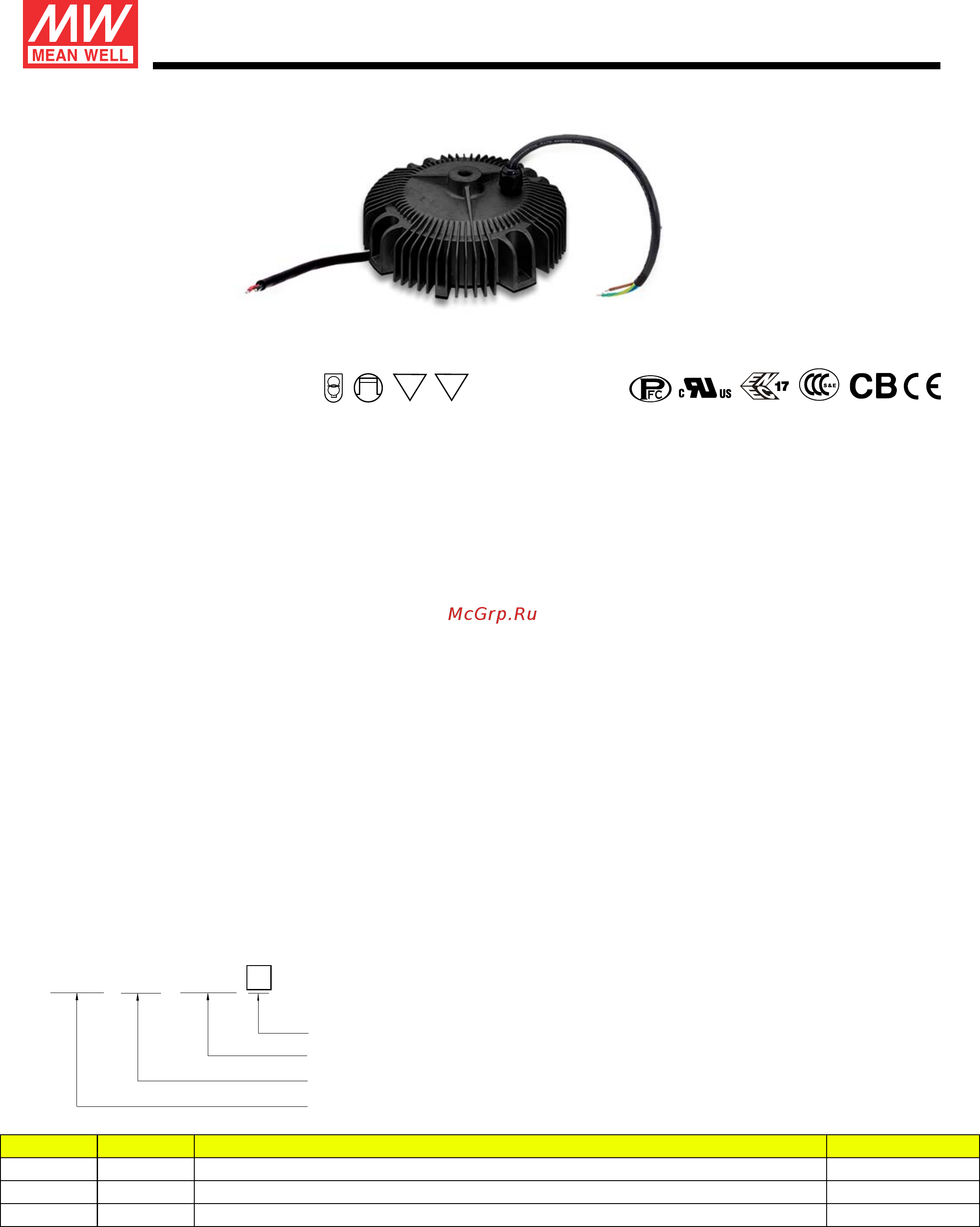

HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from
90~305VAC and offers the dual modes constant voltage and constant current output models with
different rated voltage between 24Vand 60V. Thanks to the high efficiency up to 93.5%,with the
fanless design, the entire series is able to operate for -40 ~ +75 case temperature under free air℃℃
convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to
fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as
-36HBG - 240
A
Rated output voltage(24/36/48/60V)
Rated wattage
Series name
Function mode option
dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
HBG-240 series
Constant Voltage + Constant Current mode output
MEAN WELL patented circular metal housing with
class design(Patent No.: )CN201220314551Ⅰ
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer;
3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty
Type
Blank
A
B
IP Level
IP67
IP65
IP67
Function Note
In Stock
In Stock
In Stock
Io fixed.
Io adjustable through built-in potentiometer.
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance)
240W Constant Voltage + Constant Current LED Driver
IP65 IP67
110
SELV
F
