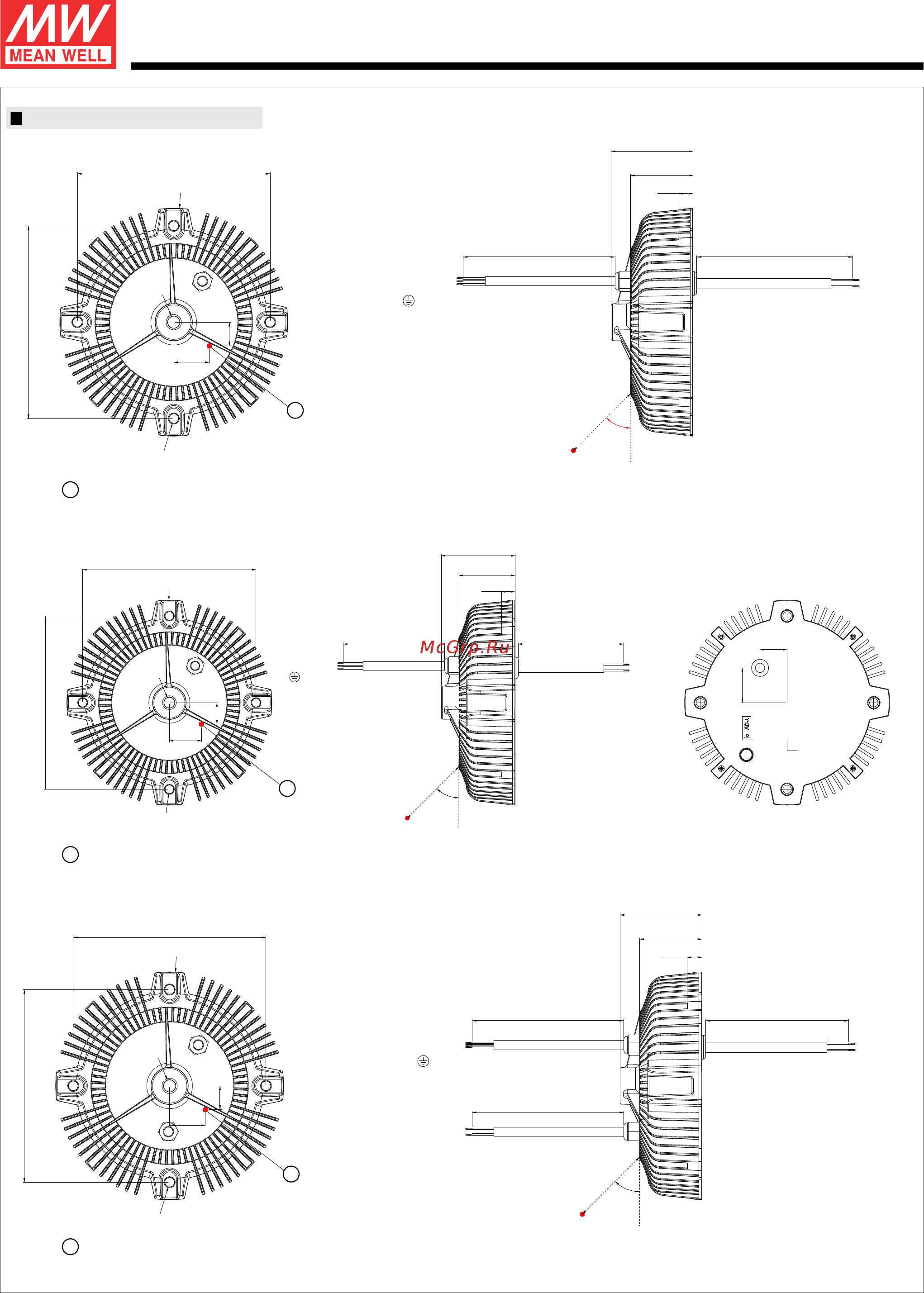

MECHANICAL SPECIFICATION
Case No.213 Unit:mm
HBG-240 series
File Name:HBG-240-SPEC 2016-12-15
Ta: Ambient Temperature measured point
※ Blank-Type
※ A-Type
※ B-Type
240W Constant Voltage + Constant Current LED Driver
SJTW 14AWG*2C
SJTW 18AWG*3C
+V(Red)
-V(Black)
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
162
162
ψ191.5
4- 8.0ψ
12.5
52.5
69
20
30
M12*P1.75-18h
300±20 300±20
45°
150
Ta
SJTW 14AWG*2C
SJTW 18AWG*3C
+V(Red)
-V(Black)
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
Ta
162
162
ψ191.5
4- 8.0ψ
12.5
52.5
69
20
30
M12*P1.75-18h
300±20 300±20
150
45°
25.25
32.5
SJTW 14AWG*2C
SJTW 18AWG*3C
+V(Red)
-V(Black)
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
DIM+(BLUE)
DIM-(WHITE)
SVT 18AWG*2C
Ta
162
162
ψ191.5
4- 8.0ψ
12.5
52.5
69
20
30
M12*P1.75-18h
300±20
300±20
300±20
45°
150
: Max. Case Temperature.(case temperature measured point)
tc
Ta: Ambient Temperature measured point
: Max. Case Temperature.(case temperature measured point)
tc
Ta: Ambient Temperature measured point
: Max. Case Temperature.(case temperature measured point)
tc
tc
tc
tc
