ASRock K7S8XE [12/27] Jumpers setup
![ASRock K7S8XE [12/27] Jumpers setup](/views2/1692524/page12/bgc.png)
12

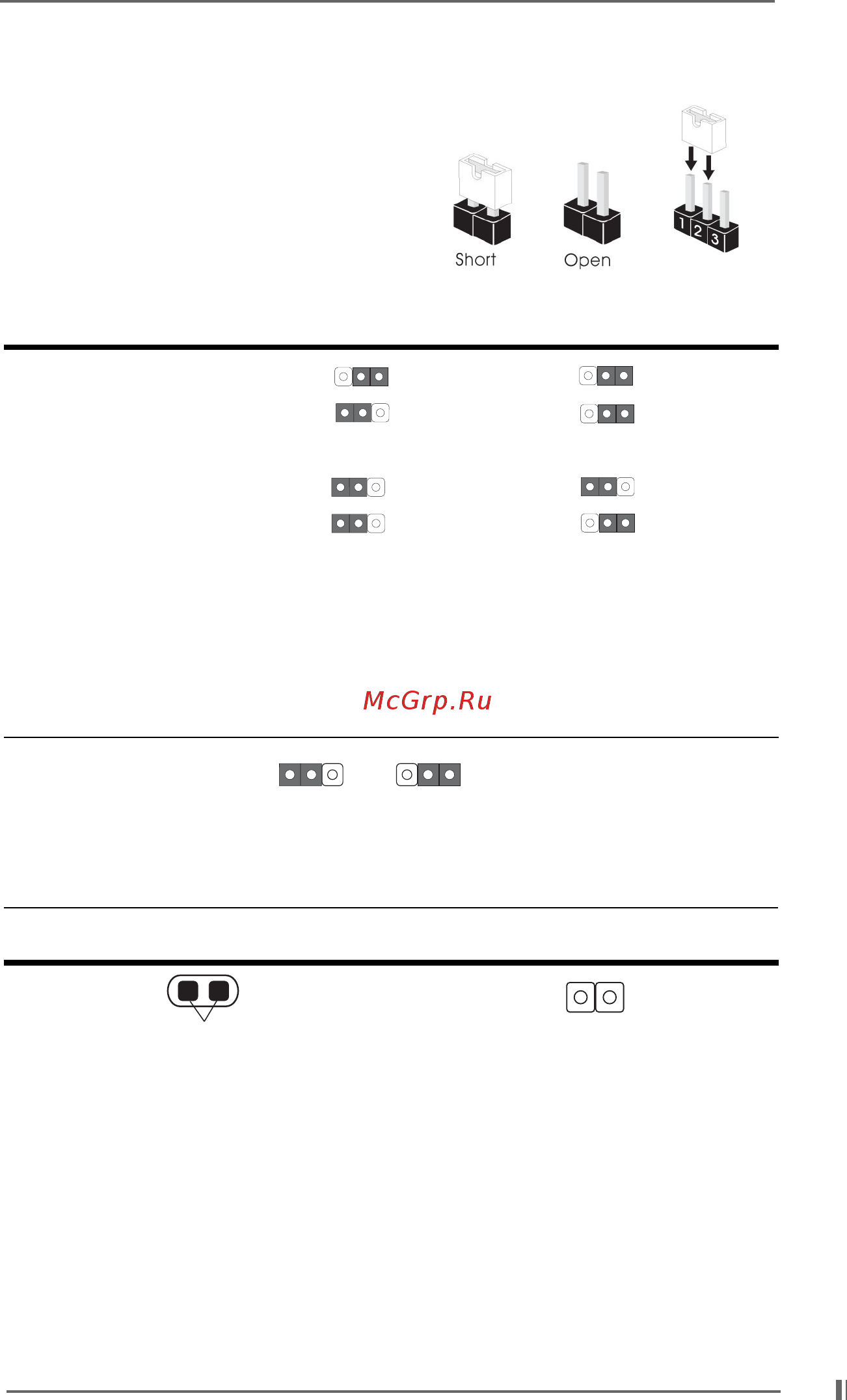

2.7 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “SHORT”. If no jumper
cap is placed on the pins, the jumper is
“OPEN”. The illustration shows a 3-pin
jumper whose pin1 and pin2 are “SHORT”.
Jumper Setting
FSB_SEL0
(see p.7 item 25)
FSB_SEL1
(see p.7 item 26)
Note:The setting of the CPU front side bus frequency of this motherboard is by
means of the adjustment of jumper-setting. Please follow the figures above
to set the CPU front side bus frequency. Please note that the setting of FSB
200MHz will function only when the installed CPU supports FSB 200MHz.
PS2_USB_PWR1 Short pin2, pin3 to enable
(see p.7 item 22) +5VSB (standby) for PS/2 or
USB wake up events.
Note:To select +5VSB, it requires 2 Amp and higher standby current provided
by power supply.
Clear CMOS
CLRCMOS1 CLRCMOS2
(see p.7 item 17) (see p.7 item 27)
Note:CLRCMOS1 and CLRCMOS2 allow you to clear the data in CMOS. The data in
CMOS includes system setup information such as system password, date,
time, and system setup parameters. There are 2 ways for you to clear and
reset the system parameters to the default setup. Please turn off the com-
puter and unplug the power cord, then you may either short the solder points
on CLRCMOS1 by using metal material, e.g., a paper clip for 3 seconds; or
you may use a jumper cap to short the pin on CLRCMOS2 for 3 seconds.
Please remember to remove the paper clip or the jumper cap after clearing
the CMOS.
FSB 100MHz
2_3
1_2
FSB_SEL0
FSB_SEL1
FSB 133MHz
2_3
FSB_SEL0
FSB_SEL1
2_3
FSB 166MHz
FSB_SEL1
1_2
1_2
FSB_SEL0
FSB 200MHz
1_2
2_3
FSB_SEL0
FSB_SEL1
+5V
1_2
+5VSB
2_3
solder points 2-pin jumper
