7

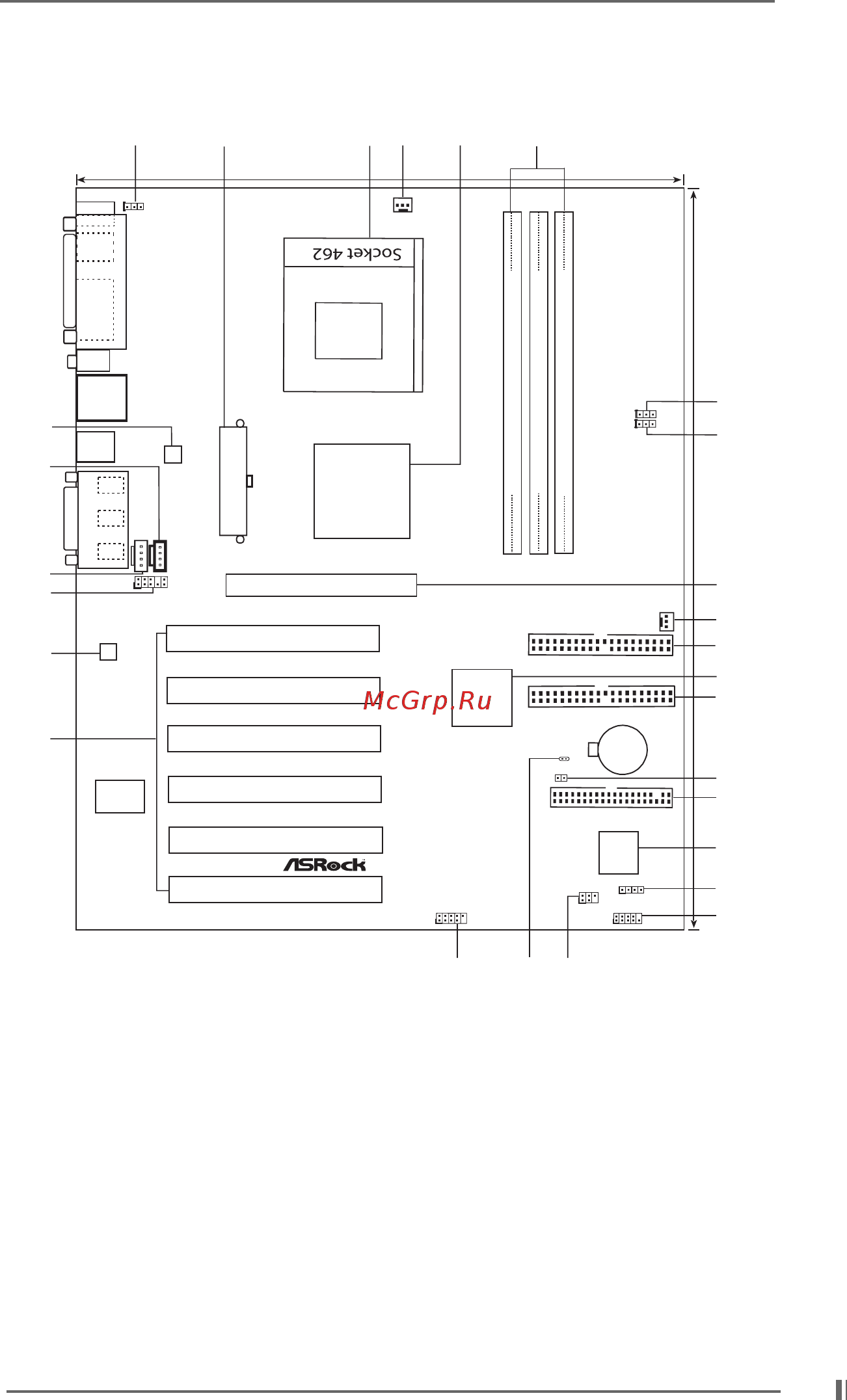

1.3 Motherboard Layout
1 ATX power connector (ATXPWR1) 15 External speaker connector (SPEAKER 1)
2 CPU socket 16 South Bridge controller
3 CPU fan connector (CPU_FAN1) 17 Clear CMOS (CLRCMOS1, solder points)
4 North Bridge controller 18 PCI slots (PCI 1- 6)
5 184-pin DDR DIMM slots (DDR 1- 3) 19 Audio CODEC
6 AGP slot (AGP1) 20 Front panel audio connector (AUDIO1)
7 Primary IDE connector (IDE1, Blue) 21 LAN PHY
8 Secondary IDE connector (IDE2, Black) 22 PS2_USB_PWR1 jumper
9 Chassis fan connector (CHA_FAN1) 23 Internal audio connector: AUX1 (White)
10 Floppy connector (FLOPPY1) 24 Internal audio connector: CD1 (Black)
11 Flash Memory 25 FSB select jumpers (FSB_SEL0)
12 System panel connector (PANEL1) 26 FSB select jumpers (FSB_SEL1)
13 USB 2.0 header (USB45, Blue) 27 Clear CMOS (CLRCMOS2, 2-pin jumper)
14 Infrared module connector (IR1)
PCI 2
K7S8XE
Audio CODEC
`
CMOS
Battery
ATA133
PCI 3
PCI 4
PCI 5
PCI 6
PCI 1
SiS
963L
SPEAKER1
USB45
IR1
1
1
1
2MB
BIOS
FLOPPY1
AGP1
PANEL 1
HDLED RESET
PLED PWRBTN
1
IDE1
IDE2
CLRCMOS1
Mic
In
GAME AUDIO1
USB01
LAN
USB23
Mic in
Line out
GAME AUDIO1
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
COM1
Line
In
Line in
PS2_USB_PWR1
CPU_FAN1
1
ATXPWR1
SiS
748
Chipset
Super
I/O
LAN
PHY
10
DDR DIMM1 (64/72 bit, 184-pin module)
32
DDR DIMM2 (64/72 bit, 184-pin module)
DDR DIMM3 (64/72 bit, 184-pin module)
45
FSB_SEL0 1
FSB_SEL1 1
24.4cm (9.6 in)
30.5cm (12.0 in)
12
3
4
5
8
16
7
27
10
11
15
12
17
13
18
19
23
24
21
22
6
1
AUDIO1
20
25
USB2.0
5.1CH
CHA_FAN1
9
14
CLRCMOS2
26
