The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.4 Installation of CPU Fan and Heatsink2.4 Installation of CPU Fan and Heatsink

2.4 Installation of CPU Fan and Heatsink

AMD Ahtlon

/ Duron

family CPUs with a speed of 600 MHz and higher

require larger heatsink and cooling fan. Thermal grease between the CPU

and the heatsink is also needed to improve heat transfer. Make sure that the

CPU and the heatsink are securely fastened and in good contact with each

other. For proper installation, please kindly refer to the instruction manuals

of vendors of CPU fan and heatsink.

2.5 Installation of Memory Modules (DIMM)2.5 Installation of Memory Modules (DIMM)

2.5 Installation of Memory Modules (DIMM)

SDRAM (Synchronous DRAM) DIMM (Dual In-line Memory Module)has 168 pins

and DDR (Double Data Rate) SDRAM DIMM has 184 pins.

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

The 168-pin SDRAM DIMM slot (black) and 184-pin DDR DIMM slot (blue) can be

easily distinguished by the fool-proof design.

Please do not insert both 168-pin SDRAM DIMM and 184-pin DDR

DIMM at the same time. Only use one single type of DIMMs at one

time. Also, for proper operation, it is not recommended to use

two different brands of the DIMMs at the same time.

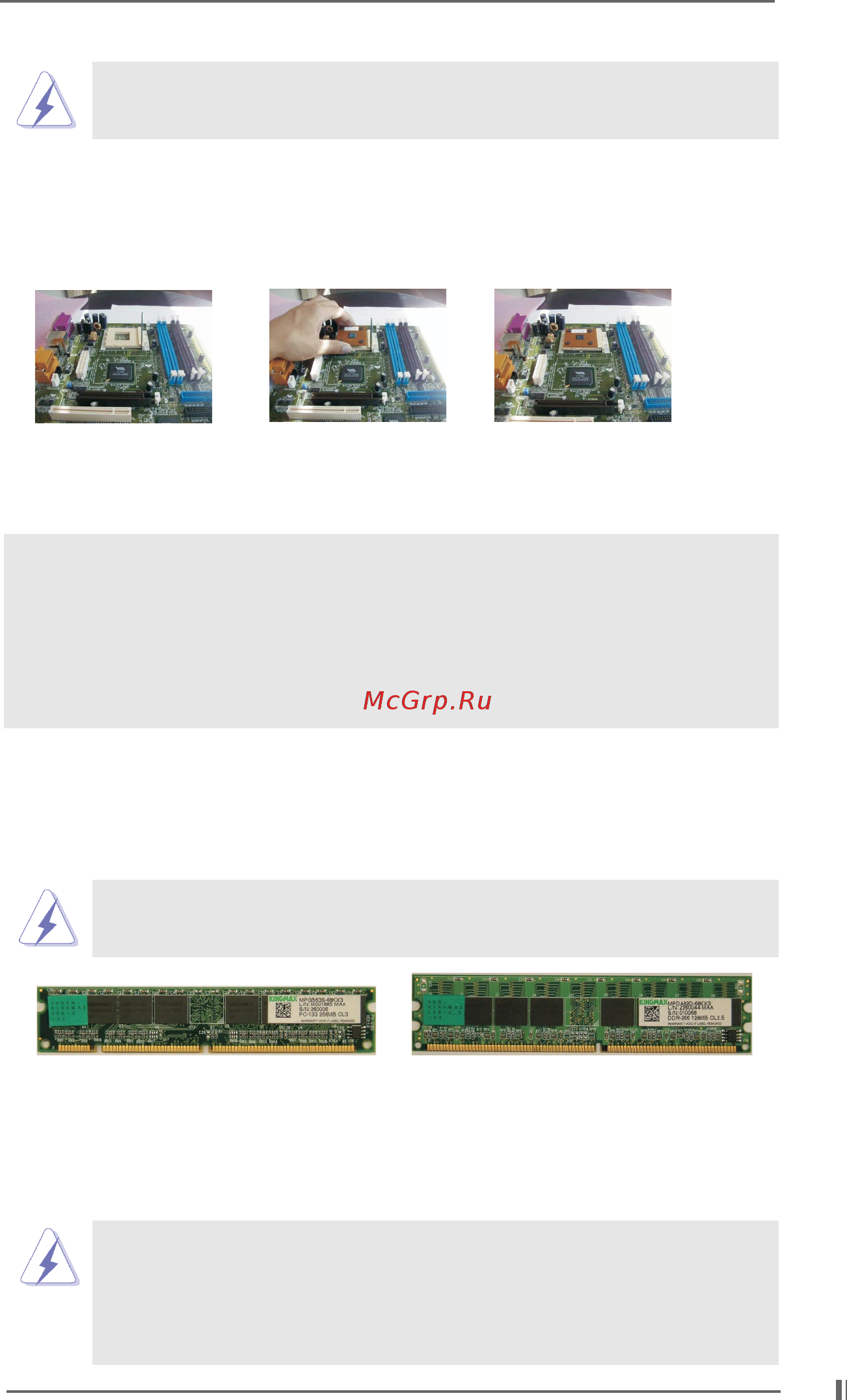

Step 1 Step 2, 3 Step 4

168-pin RAM

184-pin RAM
