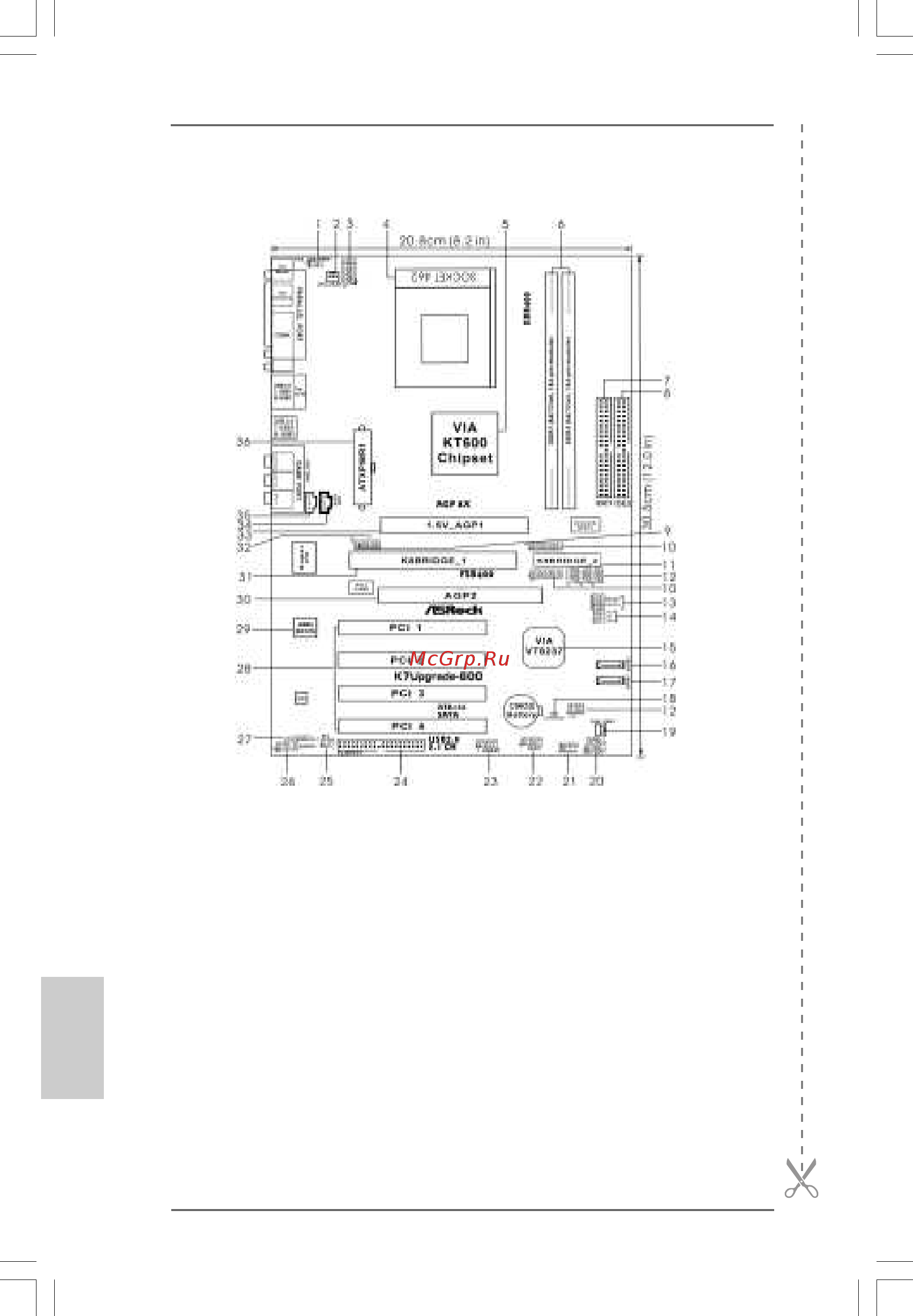

ASRock K7Upgrade-600 Motherboard

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

EnglishEnglish

English

1 PS2_USB_PWR1 Jumper 19 Chassis Fan Connector ( CHA_FAN1 )

2 CPU Fan Connector ( CPU_FAN1 ) 20 System Panel Header ( PANEL1 )

3 J1 Jumper ( 5 x 3-Pin ) 21 Chassis Speaker Header ( SPEAKER1 )

4 CPU Socket 22 USB 2.0 Header ( USB67, Blue )

5 North Bridge Controller 23 USB 2.0 Header ( USB45, Blue )

6 184-pin DDR DIMM Slots ( DDR1-2 ) 24 Floppy Connector ( FLOPPY1 )

7 Primary IDE Connector ( IDE1, Blue ) 25 Infrared Module Header ( IR1 )

8 Secondary IDE Connector ( IDE2, Black ) 26 Front Panel Audio Header ( AUDIO1 )

9 J14 Jumper ( 3 sets of 1 x2-Pin ) 27 JR1 / JL1 Jumpers

10 J4/ J5 Jumpers ( 8 x 2-Pin ) 28 4 x PCI Slots ( PCI1- 4 )

11 Future CPU Bridge ( K8BRIDGE_2 ) 29 Flash Memory

12 J7/ J8/ J9/ J12 Jumpers ( 4 sets of 4 x 3-Pin ) 30 AGP Slot ( AGP2 )

13 FSB Select Jumpers 31 Future CPU Bridge ( K8BRIDGE_1 )

( FSB_SEL0, FSB_SEL1, FSB_SEL2 ) 32 J6 Jumper ( 5 x 2-Pin )

14 J11/ J13/ J16 Jumpers ( 3 sets of 1 x 3-Pin ) 33 AGP Slot ( 1.5V_AGP1 )

15 South Bridge Controller 34 Internal Audio Connector: CD1 ( Black )

16 Secondary Serial ATA Connector ( SATA2 ) 35 Internal Audio Connector: AUX1 ( White )

17 Primary Serial ATA Connector ( SATA1 ) 36 ATX Power Connector ( ATXPWR1 )

18 Clear CMOS Jumper ( CLRCMOS2 )
