English
4

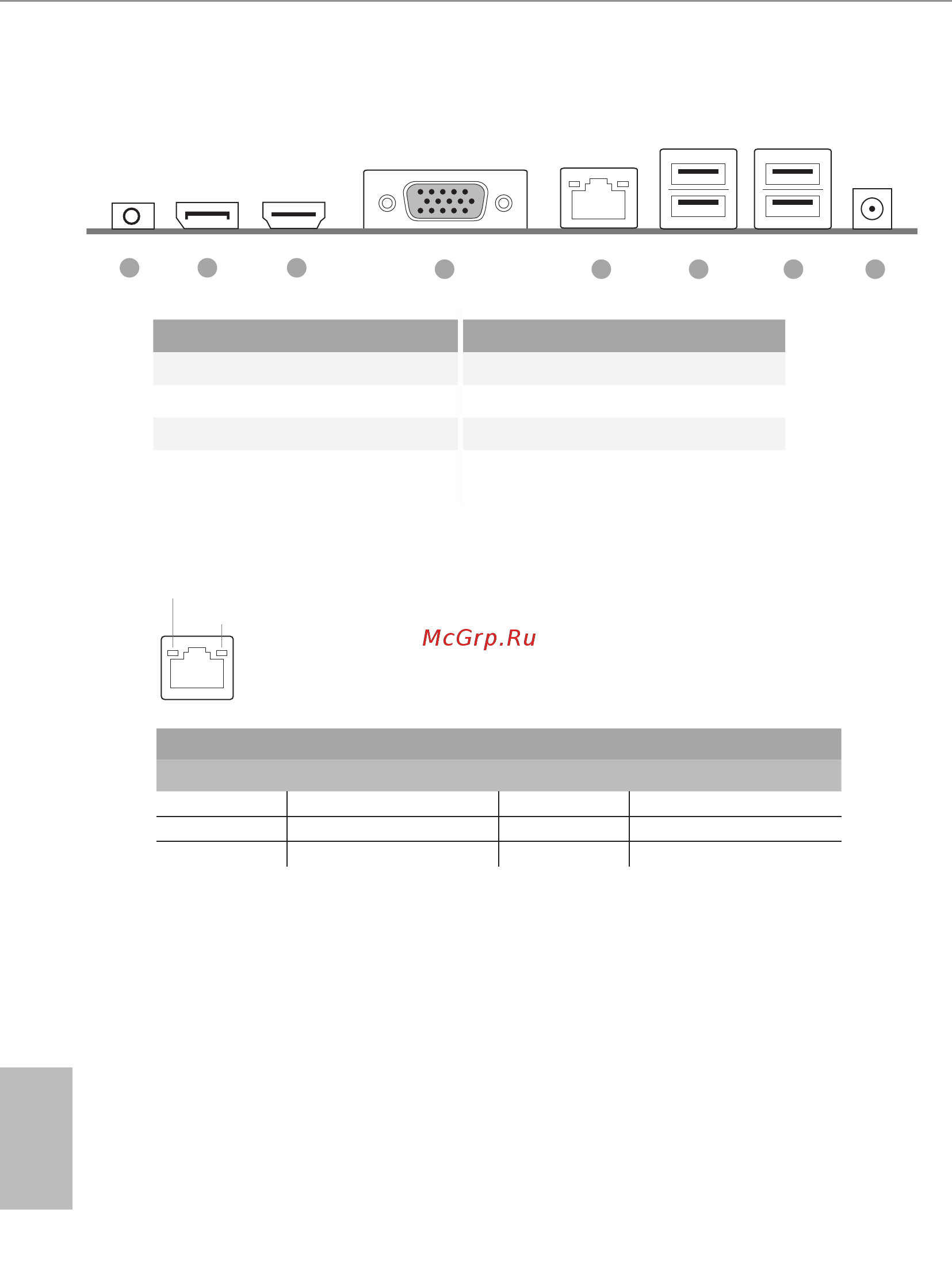

Rear Panel
No. Description No. Description
1 Headphone Jack 5 LAN RJ-45 Port*
2 Display Port 6 USB 2.0 Ports (USB_4_5)
3 HDMI Port 7 USB 2.0 Ports (USB_6_7)
4 D-Sub Port 8 DC Jack
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Green 100Mbps connection
On Link Orange 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 3
4 5 6 7 8
Chapter 1 Introduction
ank you for purchasing H310D4-P1 motherboard. In this documentation,
Chapter 1 and 2 contains the introduction of the motherboard and step-by-step
installation guides. Chapter 3 contains the operation guide of the soware and
utilities. Chapter 4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
•
H310D4-P1 Motherboard
•
H310D4-P1 Quick Installation Guide
•
H310D4-P1 Support CD
•
1 x Serial ATA(SATA) Data with Power Cable (Optional)
•
1 x Screw for M.2 Socket (M2*2) (Optional)
•
1 x Screw for WiFi Module (M2*2) (Optional)
