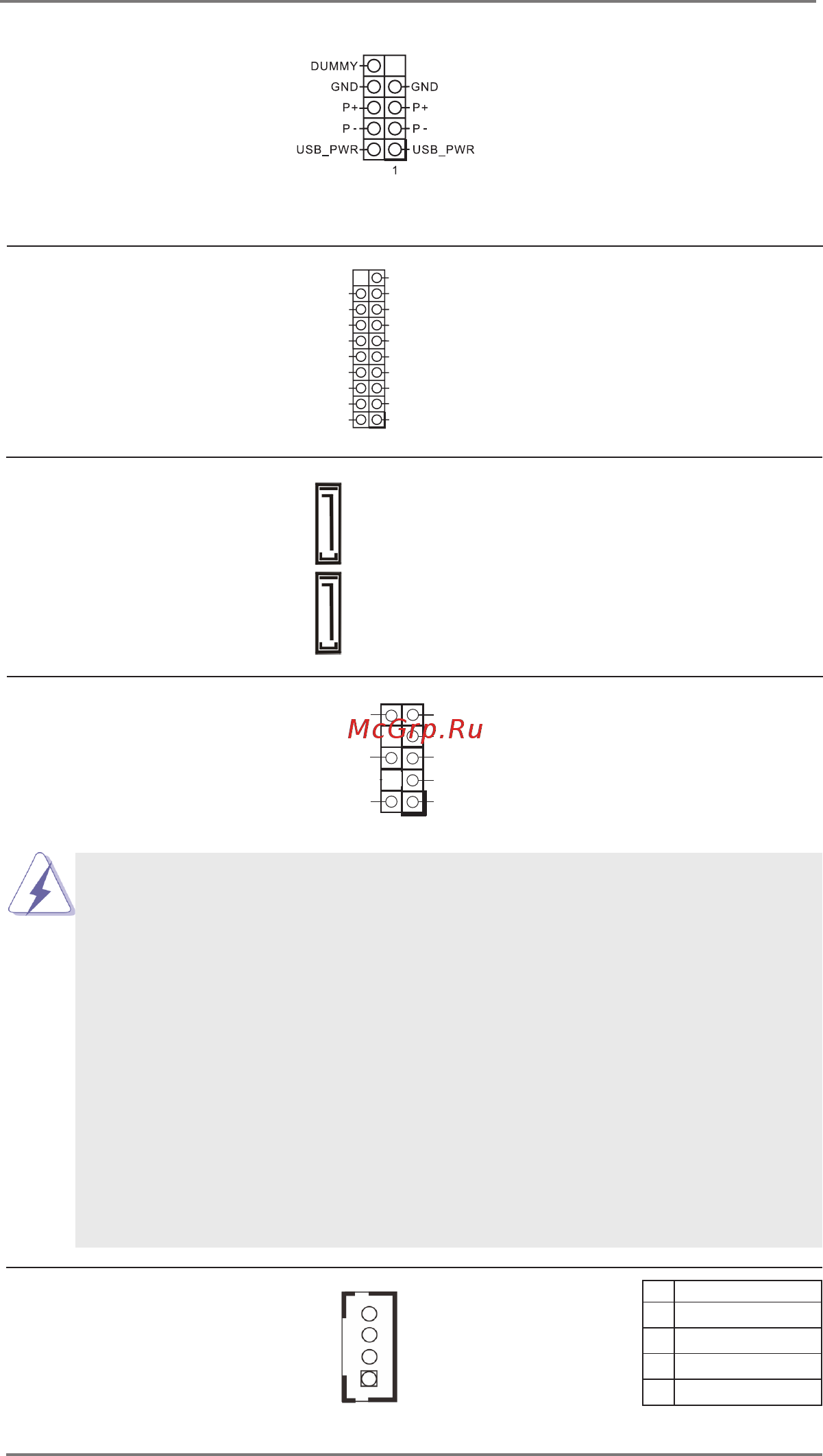

19
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.9 No. 36)
SATA3 Connectors These two Serial ATA3 (SATA3)
(SATA3_1~2: see p.9, No. 6)
connectors support SATA data
cables for internal storage
devices. The current SATA3
interface allows up to 6.0 Gb/s
data transfer rate.
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1)
panel audio cable that allows
(see p.9 No. 35)
convenient connection and
control of audio devices.
1. High Denition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
Go to the “FrontMic” Tab in the Realtek Control panel. Adjust
“Recording Volume”.
USB 2.0 Headers There are two headers on this
(9-pin USB2_11_12, USB2_8_9:
motherboard. Each USB 2.0
see p.9, No. 19)
header can support two ports.
* USB2_11_12 is for IMB-1222 /
IMB-1222-WV / IMB-X1222-
WV Only.
SATA3_1
SATA3_2
USB 3.2 Gen1 Header There is one header on this
(19-pin USB3_3_4,
motherboard. This USB 3.2
(see p.9, No. 1)
Gen1 header can support two
ports.
1
IntA _PB_D +
Dumm y
IntA _PB_D -
GND
IntA _PB_S STX+
GND
IntA _PB_S STX-
IntA _PB_S SRX+
IntA _PB_S SRX-
VbusVbus
Vbus
IntA _PA_SSRX -
IntA _PA_SSRX +
GND
IntA _PA_SSTX -
IntA _PA_SSTX +
GND
IntA _PA_D-
IntA _PA_D+
J_SENS E
OUT2_L
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_R ET
1
1
PIN Signal Name
4 OUTRN
3 OUTRP
2 OUTLP
1 OUTLN
