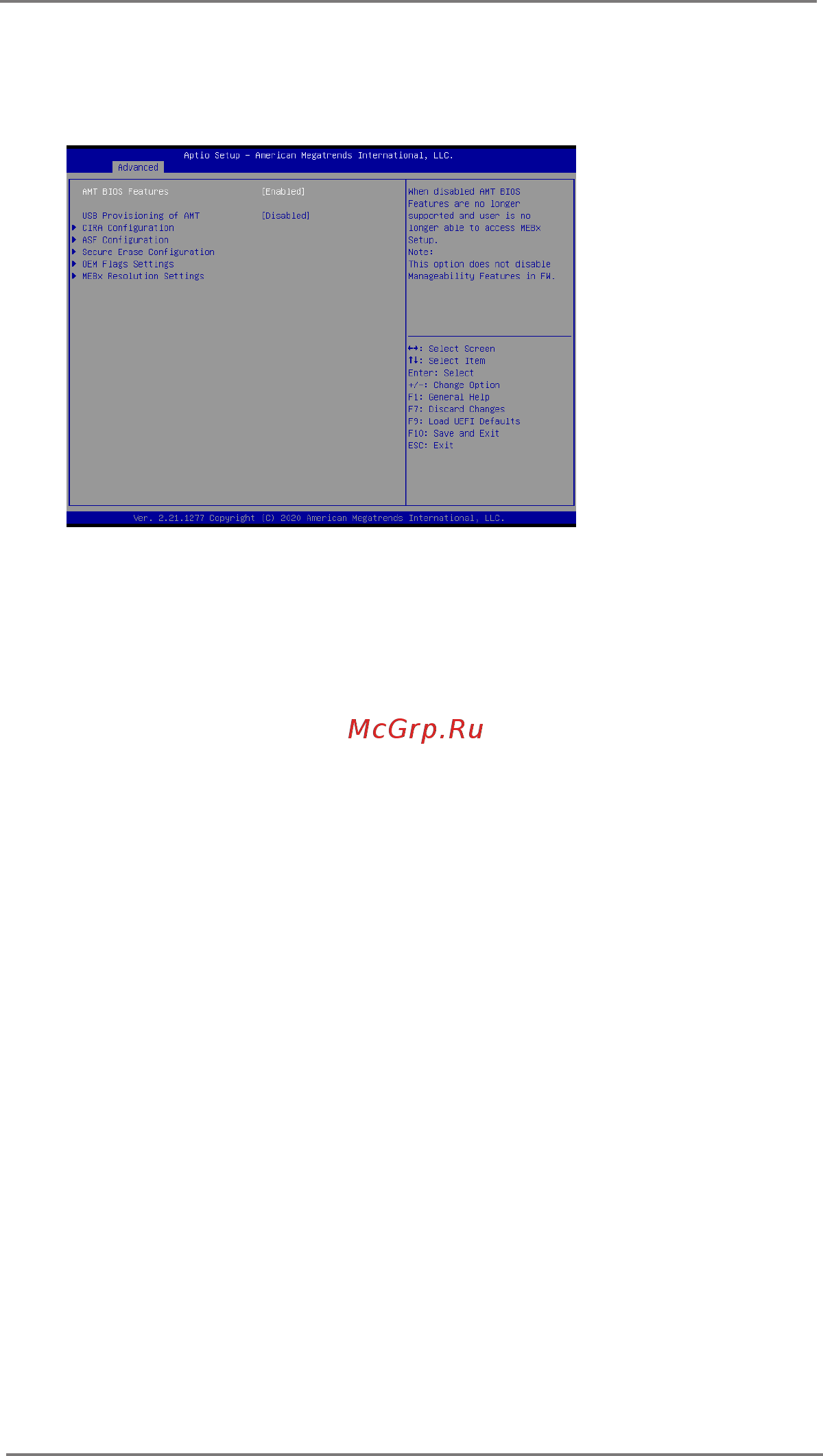

3.3.5 AMT Conguration (For IMB-1222 / IMB-1222-WV /
IMB-X1222-WV Only)
AMT BIOS Features
Use this to enable or disable Intel(R) Active Management Technology
BIOS Extension. The default is [Enabled].
ASF support
Use this to enable or disable Alert Specication Format. The default is [En-
abled].
USB Provisioning of AMT
Use this to enable or disable AMT USB Provisioning. The default is [Dis-
abled].
Secure Erase mode
Change Secure Erase module behavior: Simulated: Performs SE flow
without erasing SSD. Real: Erase SSD.
Force Secure Erase
Use this to enable or disable Force Secure Erase on next boot. The de-
fault is [Disabled].
MEBx hotkey Pressed
Use this to enable or disable MEBx hotkey press. The default is [Disabled].
MEBx Selection Screen
Use this to enable or disable MEBx Selection Screen. The default is [Dis-
abled].
Hide Un-congure ME Conrmation Prompt
Hide Un-Congure ME without password conrmation prompt. The default
is [Disabled].
MEBx OEM Debug Menu Enable
Use this to enable or disable MEBx OEM Debug Menu. The default is [Dis-
abled].
