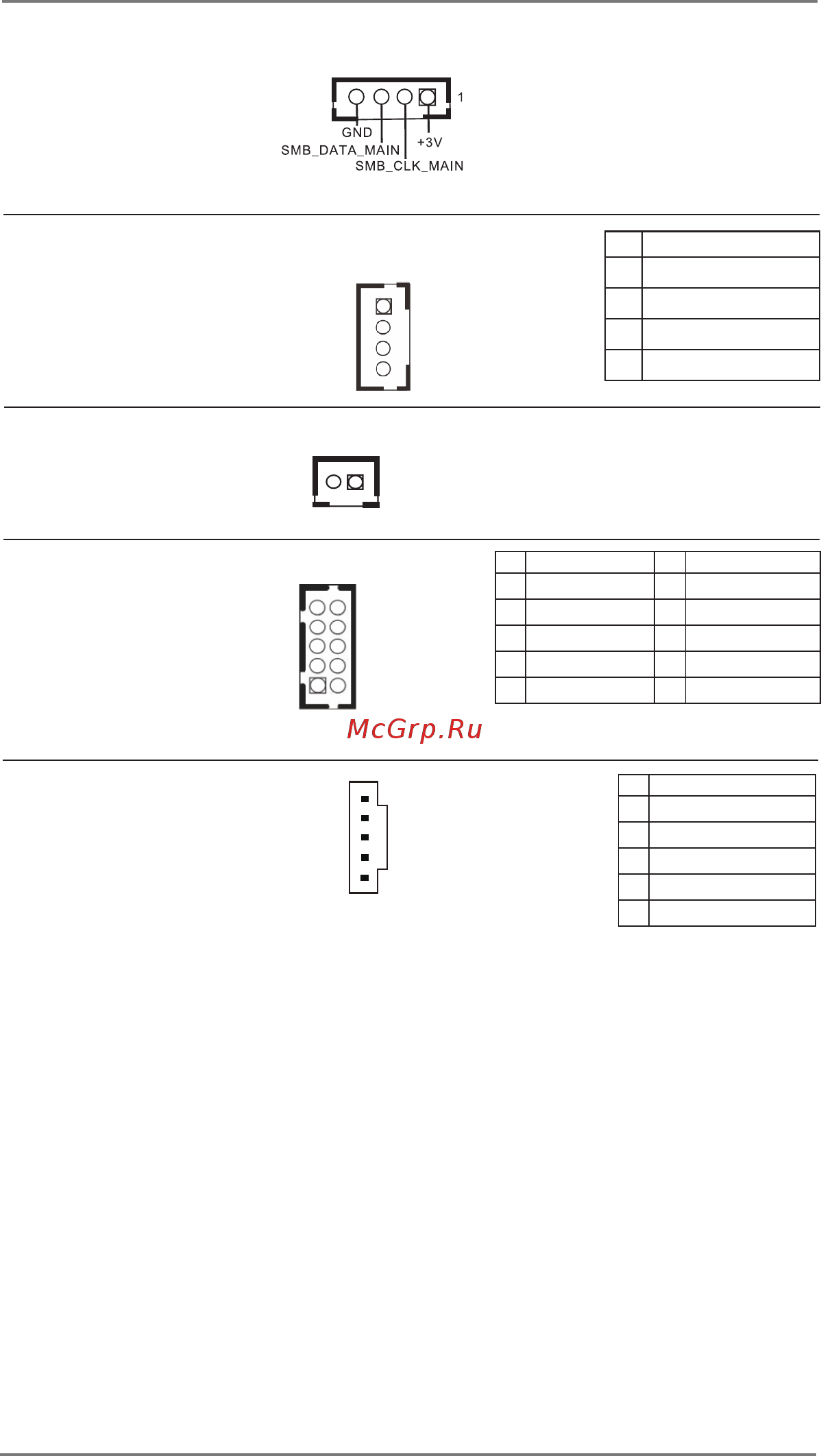

22
1
PIN Signal Name
1 GND
2 5VA_CONTROL
3 5VA
4 GND
1
SMBUS_TEST1
(4-pin SMBUS_TEST1)
(see p.9 No. 22)
Power Adapter (For IMB-1222-WV / IMB-X1222-WV Only)
(4-pin POWER_ADAPTER)
(see p.9 No. 31)
2-pin UPS Module Power Input Connector
Pin1: GND
(2-pin TOP_UPS1)
Pin2: DC Input
(see p.9 No. 33)
1
PIN Signal Name PIN Signal Name
9 DDC_CLK 10 DDC_DATA
7 HSYNC 8 VSYNC
5 BLUE 6 GND
3 GREEN 4 GND
1 RED 2 GND
1
VGA Header (For IMB-1223 / IMB-1223-WV Only)
(10-pin VGA_H1)
(see p.9 No. 37)
ThunderBolt Header
(5-pin TB1)
(see p.9 No. 38)
PIN Signal Name
5 GND
4 TBT_SLP_S5_S4#
3 SLP_S3#
2 TBCIO_PLUG_EVENT
1 TB_FRC_PWR
