20

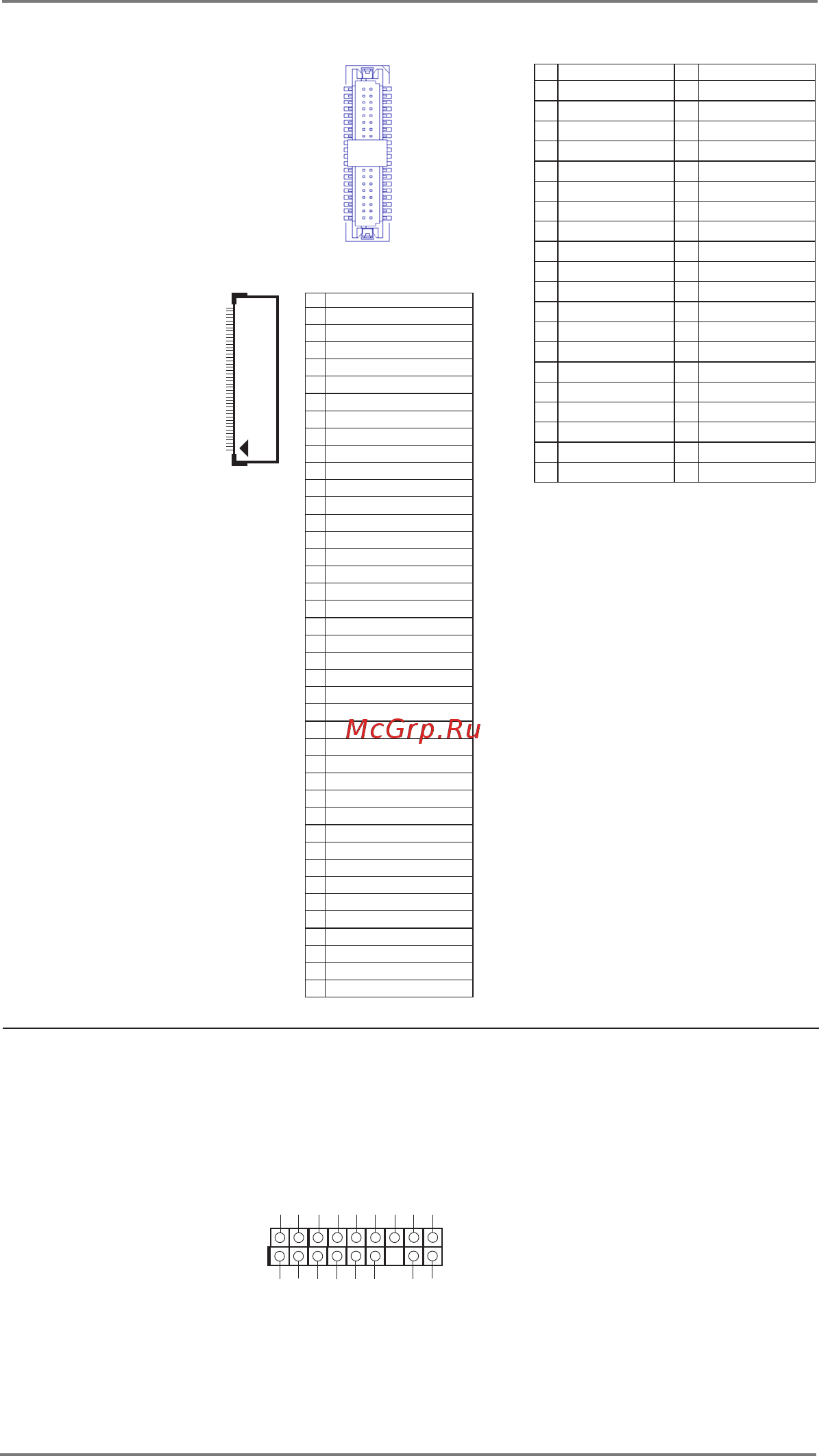

LVDS Panel Connector*
(40-pin LVDS1)
(see p.9 No. 14)
eDP Connector (on the
Backside of PCB)
EDP1
40
1
LPC Header This connector supports a
(For IMB-1222 / IMB-1222-WV / IMB-X1222-WV Only)
Trusted Platform Module (TPM)
(19-pin LPC1)
system, which can
(
see p.9, No. 5)
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
* PD (Panel Detection): Connect this
pin to LVDS Panel’s Ground pin to
detect Panel detection.
1
39
40
2
PIN Signal Name PIN Signal Name
39 LCD_BLT_VCC 40 LCD_BLT_VCC
37 CON_LBKLT_CTL 38 LCD_BLT_VCC
35 GND 36 CON_LBKLT_EN
33 LVDS_B_CLK# 34 LVDS_B_CLK
31 LVDS_B_DATA3 32 GND
29 DPLVDD_EN 30 LVDS_B_DATA3#
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
25 LVDS_B_DATA1 26 GND
23 GND 24 LVDS_B_DATA1#
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
19 LVDS_A_CLK 20 GND
17 GND 18 LVDS_A_CLK#
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
13 LVDS_A_DATA2 14 GND
11 GND 12 LVDS_A_DATA2#
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
7 LVDS_A_DATA0 8 PD (Panel Detection)
5 LDDC_DATA 6 LVDS_A_DATA0#
3 +3.3V 4 LDDC_CLK
1 LCD_VCC 2 LCD_VCC
PIN Signal Name
1 NA
2 GND
3 eDP_TX#3_CON
4 eDP_TX3_CON
5 GND
6 eDP_TX#2_CON
7 eDP_TX2_CON
8 GND
9 eDP_TX#1_CON
10 eDP_TX1_CON
11 GND
12 eDP_TX#0_CON
13 eDP_TX0_CON
14 GND
15 eDP_AUX_CON
16 eDP_AUX#_CON
17 GND
18 LCD_VCC
19 LCD_VCC
20 LCD_VCC
21 LCD_VCC
22 NA
23 GND
24 GND
25 GND
26 GND
27 eDP_HPD_CON
28 GND
29 GND
30 GND
31 GND
32 CON_LBKLT_EN
33 CON_LBKLT_CTL
34 SMB_DATA
35 SMB_CLK
36 LCD_BLT_VCC
37 LCD_BLT_VCC
38 LCD_BLT_VCC
39 LCD_BLT_VCC
40 NA
1
GN D
SM B_ DA TA _M AI N
LA D2
LA D1
GN D
S_ PW RD WN #
SE RI RQ #
GN D
PC IC LK
PC IR ST #
LA D3
+3 V
LA D0
+3 VS B
GN D
FR AM E
SM B_ CL K_ MA IN
