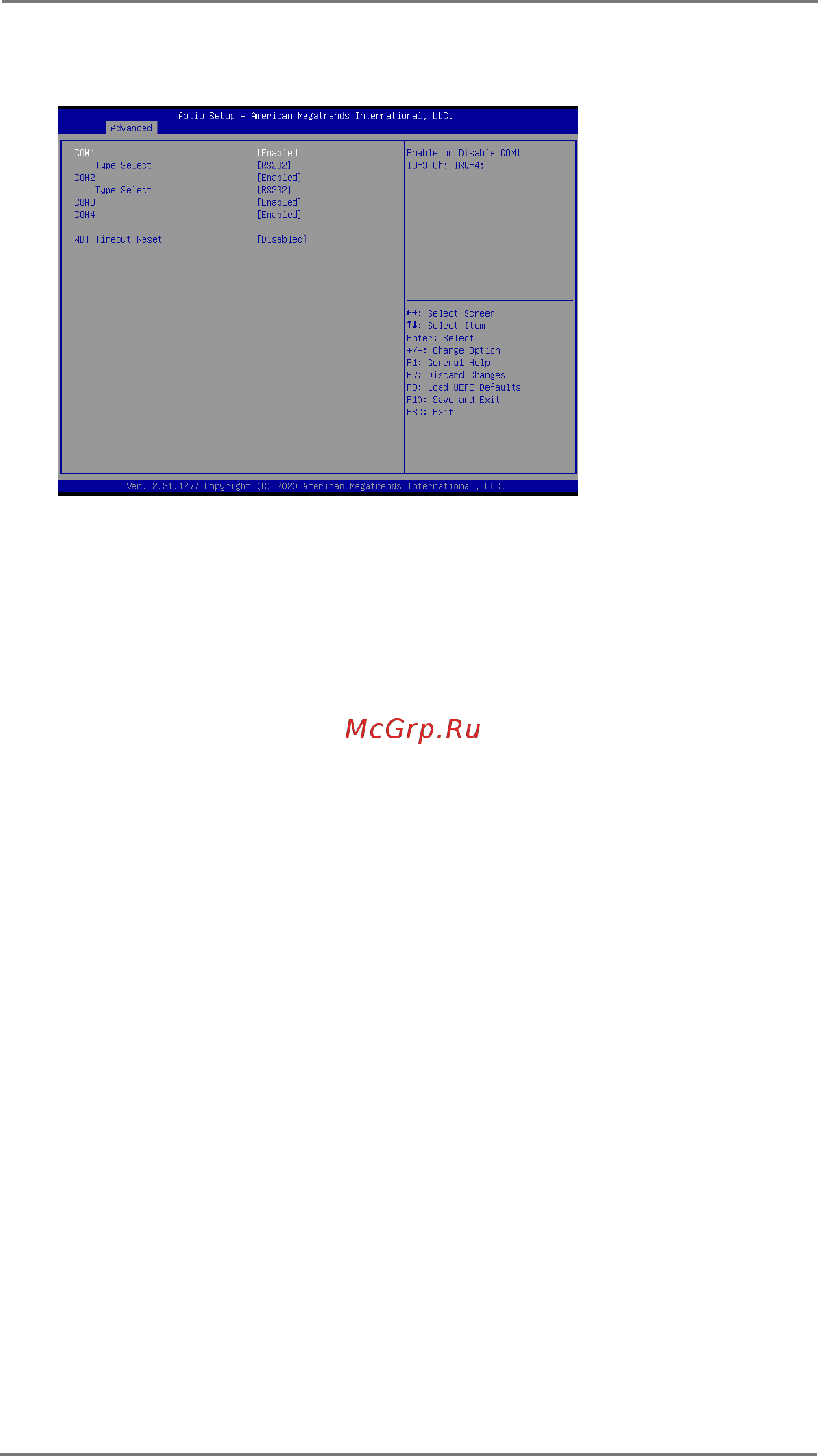

3.3.4 Super IO Conguration
COM1 Conguration
Use this to set parameters of COM1.
Type Select
Use this to select COM1 port type: [RS232], [RS422] or [RS485].
COM2 Conguration
Use this to set parameters of COM2.
Type Select
Use this to select COM2 port type: [RS232], [RS422] or [RS485].
COM3 Conguration
Use this to set parameters of COM3.
COM4 Conguration
Use this to set parameters of COM4.
WDT Timeout Reset
Use this to set the Watch Dog Timer.
