37

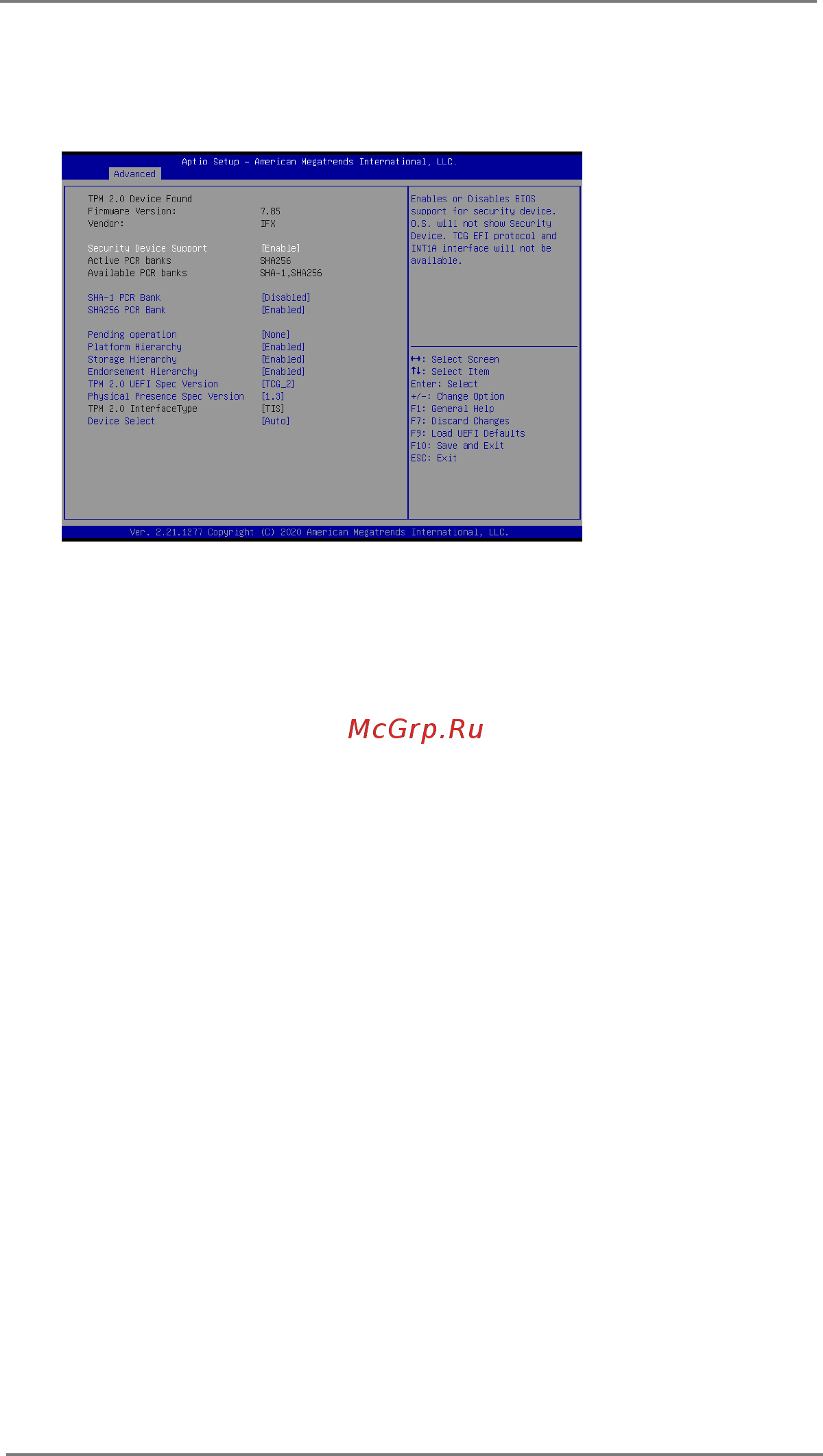

3.3.8 Trusted Computing (For IMB-1222 / IMB-1222-WV /
IMB-X1222-WV Only)
Security Device Support
Enable or disable BIOS support for security device.
