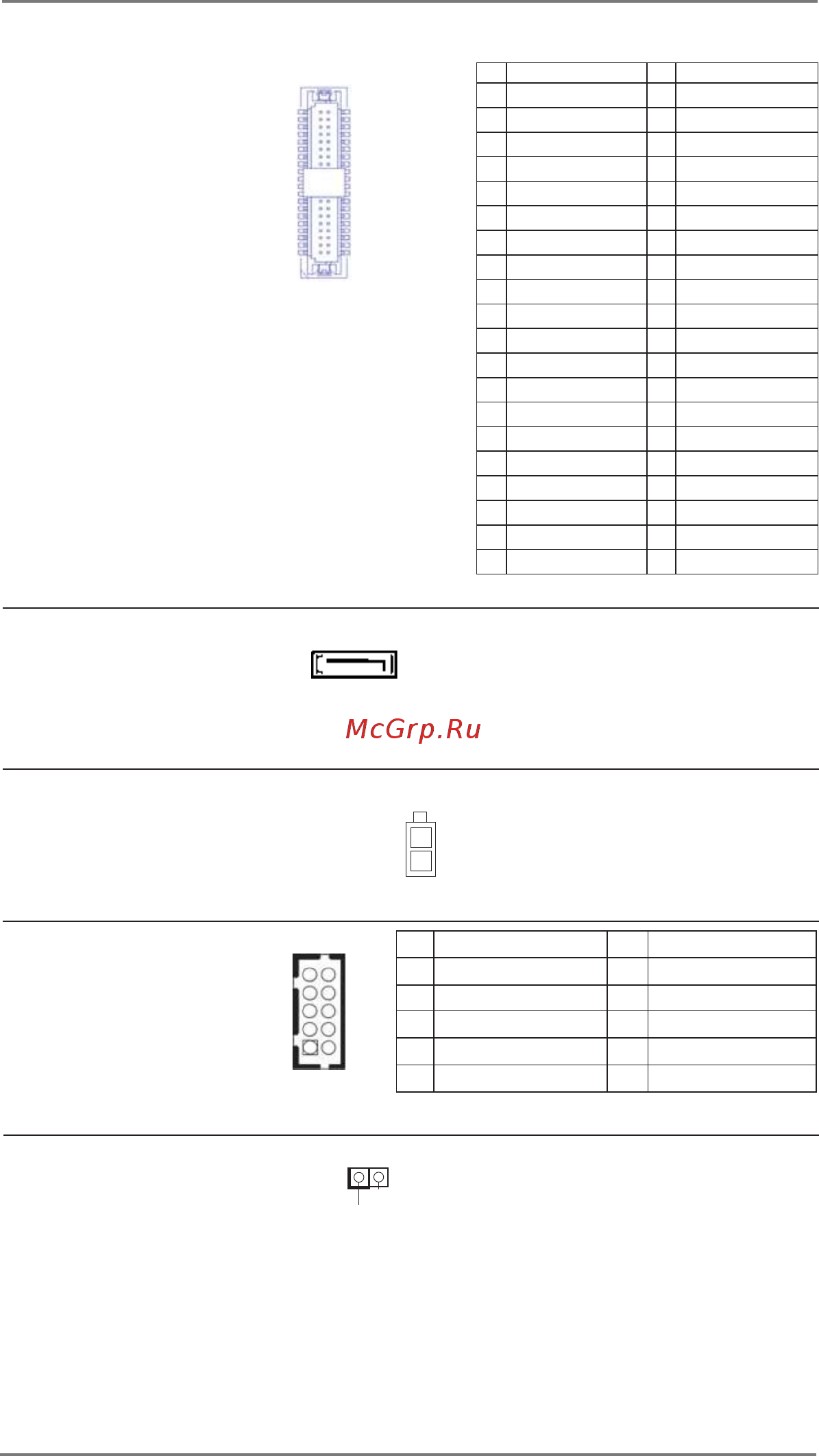

LVDS Connector
(40-pin LVDS1)
(see p.8 No. 15)
PIN Signal Name PIN Signal Name
2 LCD_VCC 1 LCD_VCC
4 LDDC_CLK 3 +3.3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL
40 LCD_BLT_VCC 39 LCD_BLT_VCC
1
39
40
2
SATA Power Connector
Please connect a SATA
(SATA_PWR1)
power cable to this connector.
(see p.8 No. 7)
UPS Module Power Input Connector Please connect an UPS
(UPS_IN1)
power cable to this connector.
(see p.8 No. 1)
1
VGA1
(10-pin VGA1: see p.8, No. 30)
PIN Signal Name PIN Signal Name
9
DDC_CLK
10
DDC_DATA
7 HSYNC 8 VSYNC
5 BLUE 6 GND
3 GREEN 4 GND
1
RED
2
GND
HDMI_SPDIF Header HDMI_SPDIF header, providing
(2-pin HDMI_SPDIF1)
SPDIF audio output to HDMI
(see p.8, No. 24)
VGA card, allows the system to
connect HDMI Digital TV/
projector/LCD devices. Please
connect the HDMI_SPDIF
connector of HDMI VGA card to
this header.
SP DI FO UT
GN D
1
