31

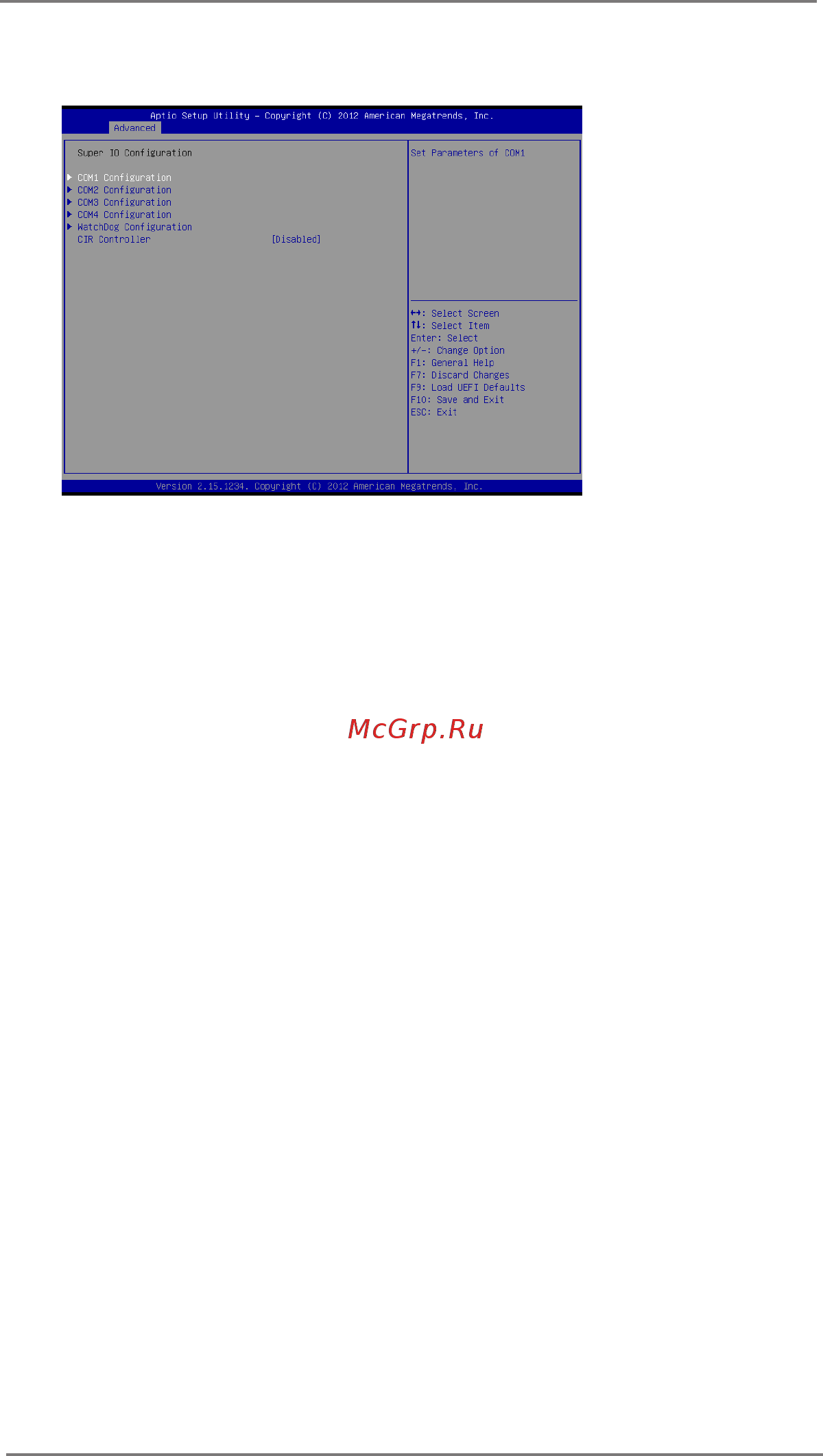

3.3.5 Super IO Conguration
COM1 Conguration
Use this to set parameters of COM1. Select COM1 port type: [RS232],
[RS422] or [RS485].
COM2 Conguration
Use this to set parameters of COM2.
COM3 Conguration
Use this to set parameters of COM3.
COM4 Conguration
Use this to set parameters of COM4.
Watchdog Conguration
Use this to set the Watch Dog Timer.
CIR Controller
Use this to enable or disable CIR controller.
