ASRock IMB-183 [34/40] Voltage configuration
![ASRock IMB-183 [34/40] Voltage configuration](/views2/1693497/page34/bg22.png)
34

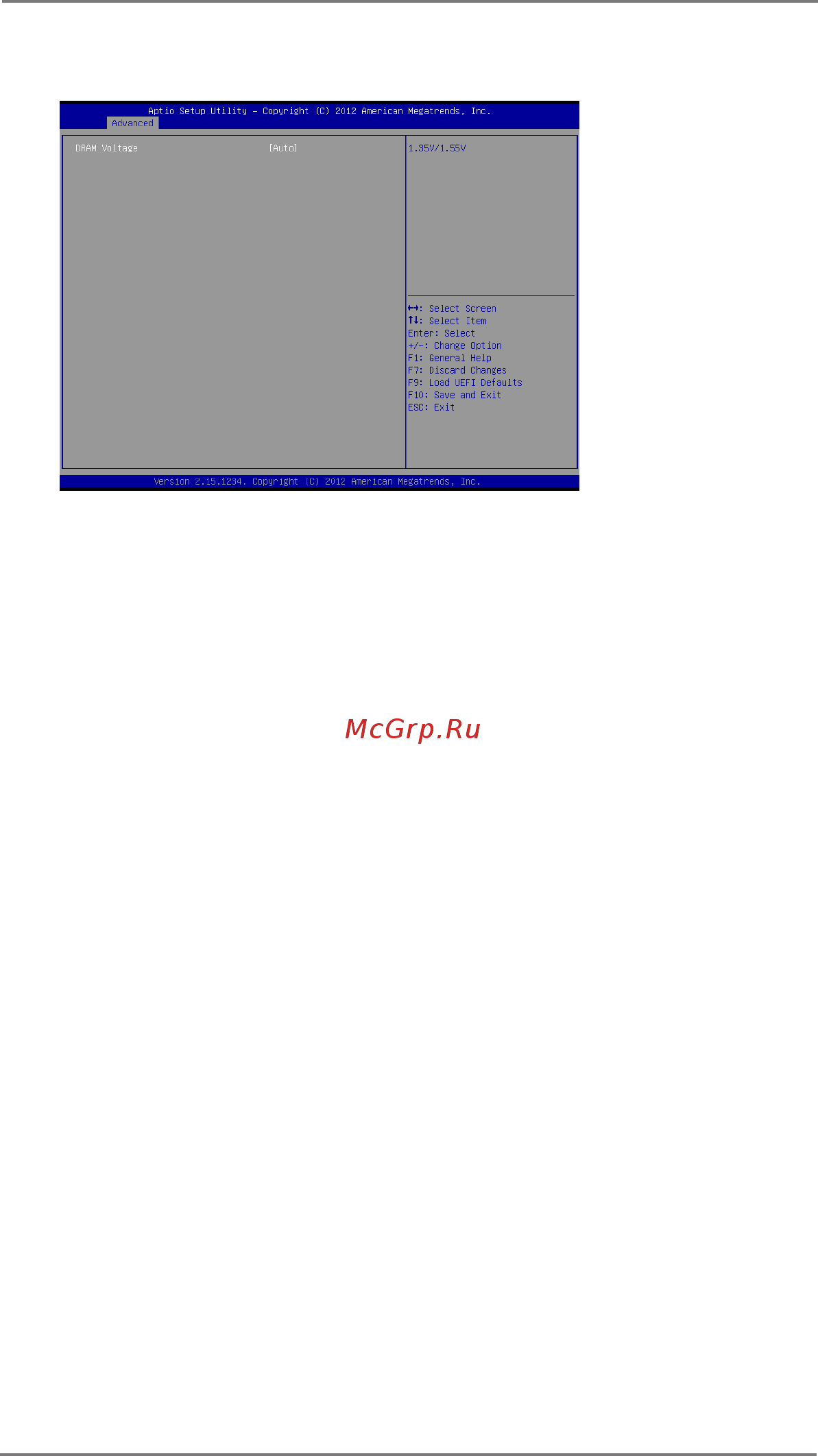

3.3.8 Voltage Conguration
DRAM Voltage
Use this to select DRAM Voltage. The default value is [Auto].
