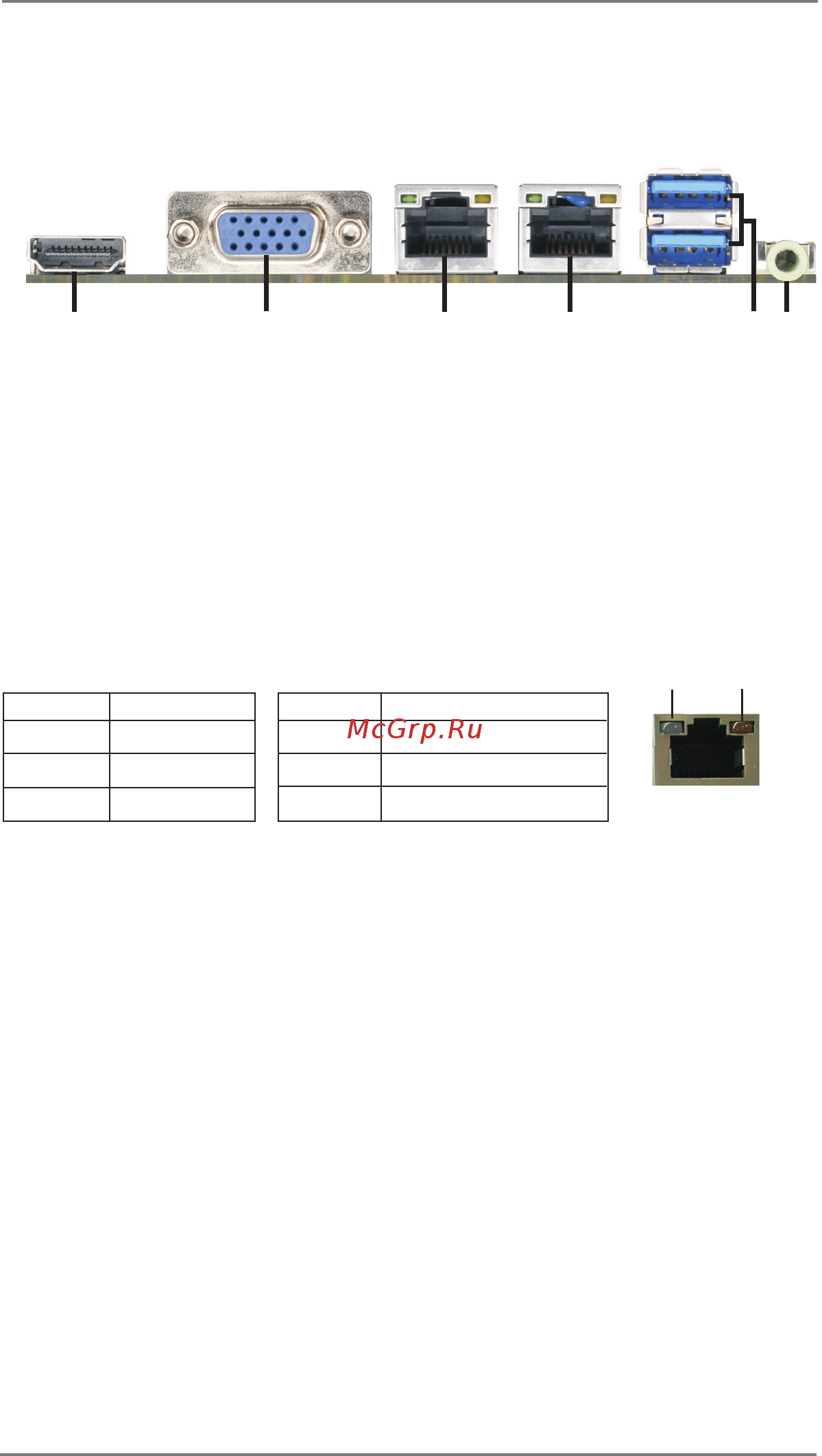

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity O 100Mbps connection
On Link Green 1Gbps connection
1 HDMI Port (HDMI1)
2 VGA Port (VGA1)
3 LAN RJ-45 Port (LAN1)*
4 LAN RJ-45 Port (LAN2)*
5 USB 3.0 Ports (USB01)
6 Line out (Green)
ACT/LINK
LED
SPEED
LED
LAN Port
6
1
2
4
3
5
