ASRock 4X4-V1000M [8/32] Motherboard layout

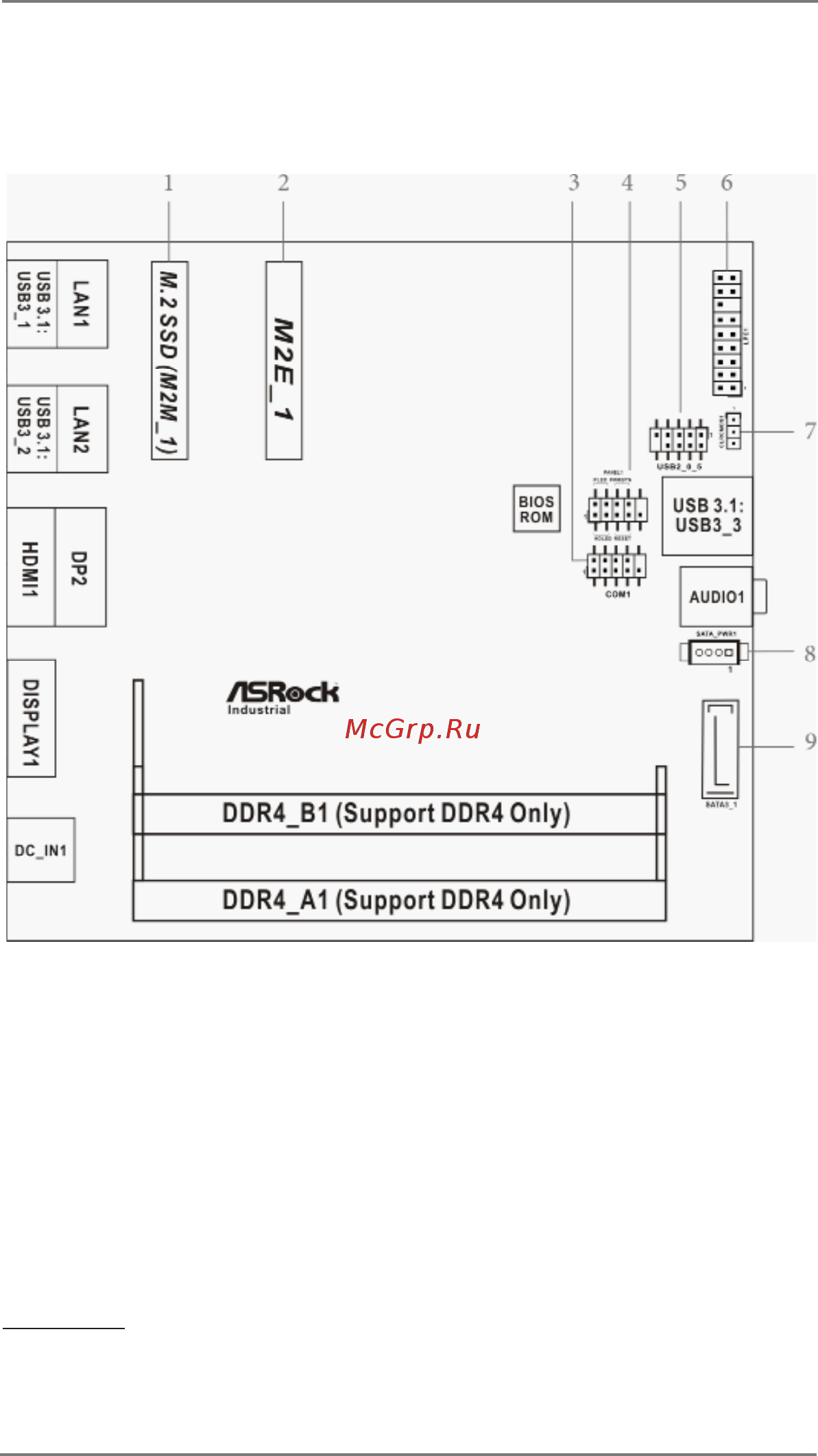

1.3 Motherboard Layout

1 :

M.2 Key-M Socket (M2M_1)

2 :

M.2 Key-E Socket (M2E_1)

3 :

COM Port Header (RS232/422/485)

4 :

System Panel Header (PANEL1)

5 : USB2.0 Connector (USB2_0_5)

6 : LPC Debug Header (LPC1)

7 :

Clear CMOS Headers (CLRCMOS1)

8 :

SATA Power Output Connector (SATA_PWR1)

9 : SATA3 Connector (SATA3_1)

Back Side :

Power Button (PWR_BTN3)

Fan Connector (FAN1)
