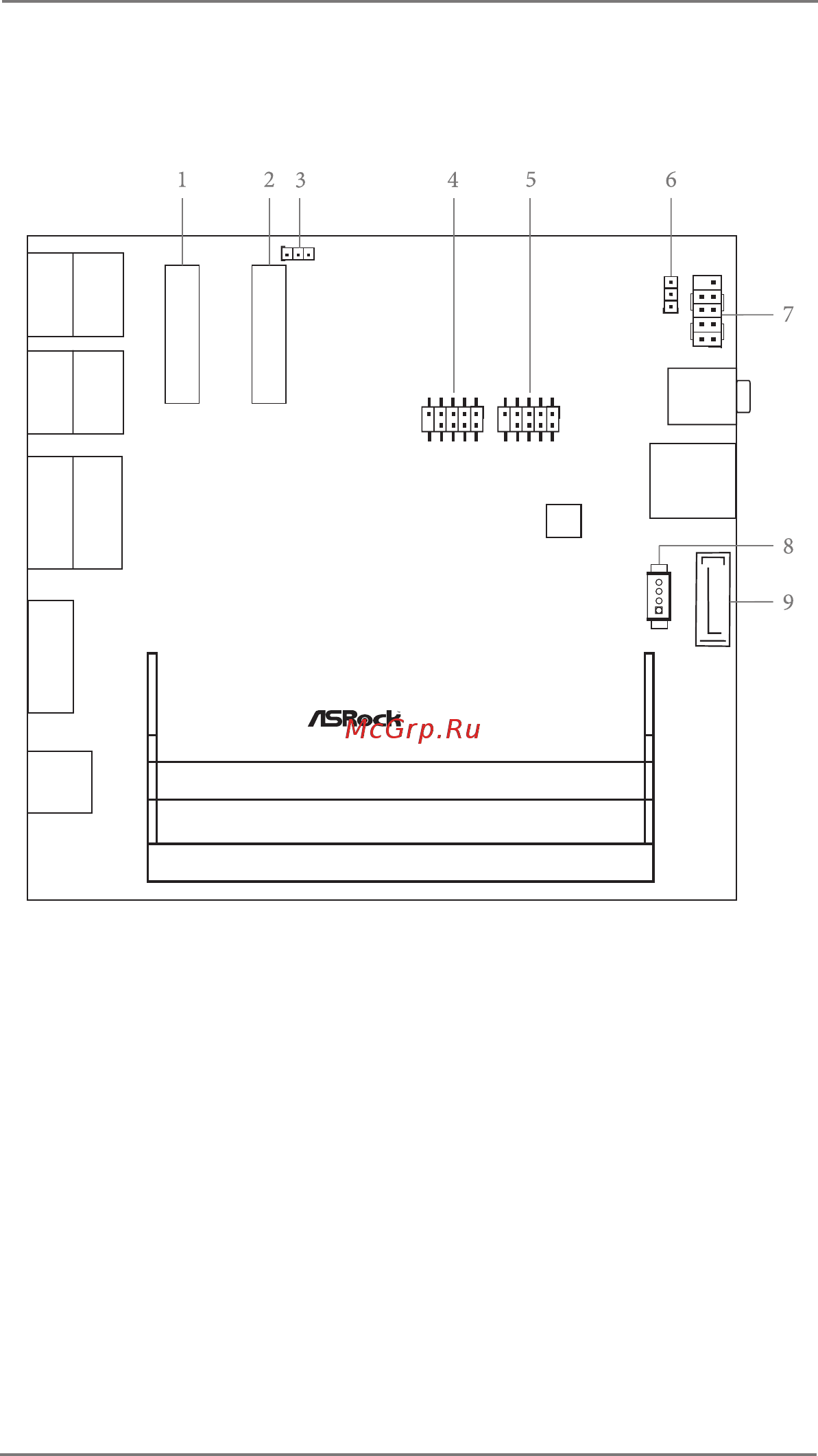

1.3 Motherboard Layout
LAN1
AU DIO1
HDMI1
USB3_2
DC _IN1
M.2 KEY M
USB 3.0:
USB3_1
DP2
DISPLAY1
PANEL1
HDLED RES ET
PLED PWRBTN
1
SATA3 _1
DDR3_A1 (Support DDR3L Only)
DDR3_B1 (Support DDR3L Only)
SATA_ PWR 1
1
N4200-NUC-DL
Ind ust ria l
LAN2
USB 3.0:
USB3_3
M.2 KEY E
1
PWR_J P1
1
COM1
1
USB2_4_5
BIOS
Chip
1
CLR MOS 1
1 :
M.2 Socket (
Key-M)
(M2M_1)
2 :
M.2 Socket (
Key-E)
(M2E_1)
3 : Clear CMOS Header (CLRMOS1)
4 : COM Port Header (COM1)
5 : USB2.0 Header (USB2_4_5)
6 : ATX/AT Mode Select (PWR_JP1)
7 :
System Panel Header (PANEL1)
8 :
SATA Power Output Connector (SATA_PWR1)
9 : SATA3 Connector (SATA3_1)
