9

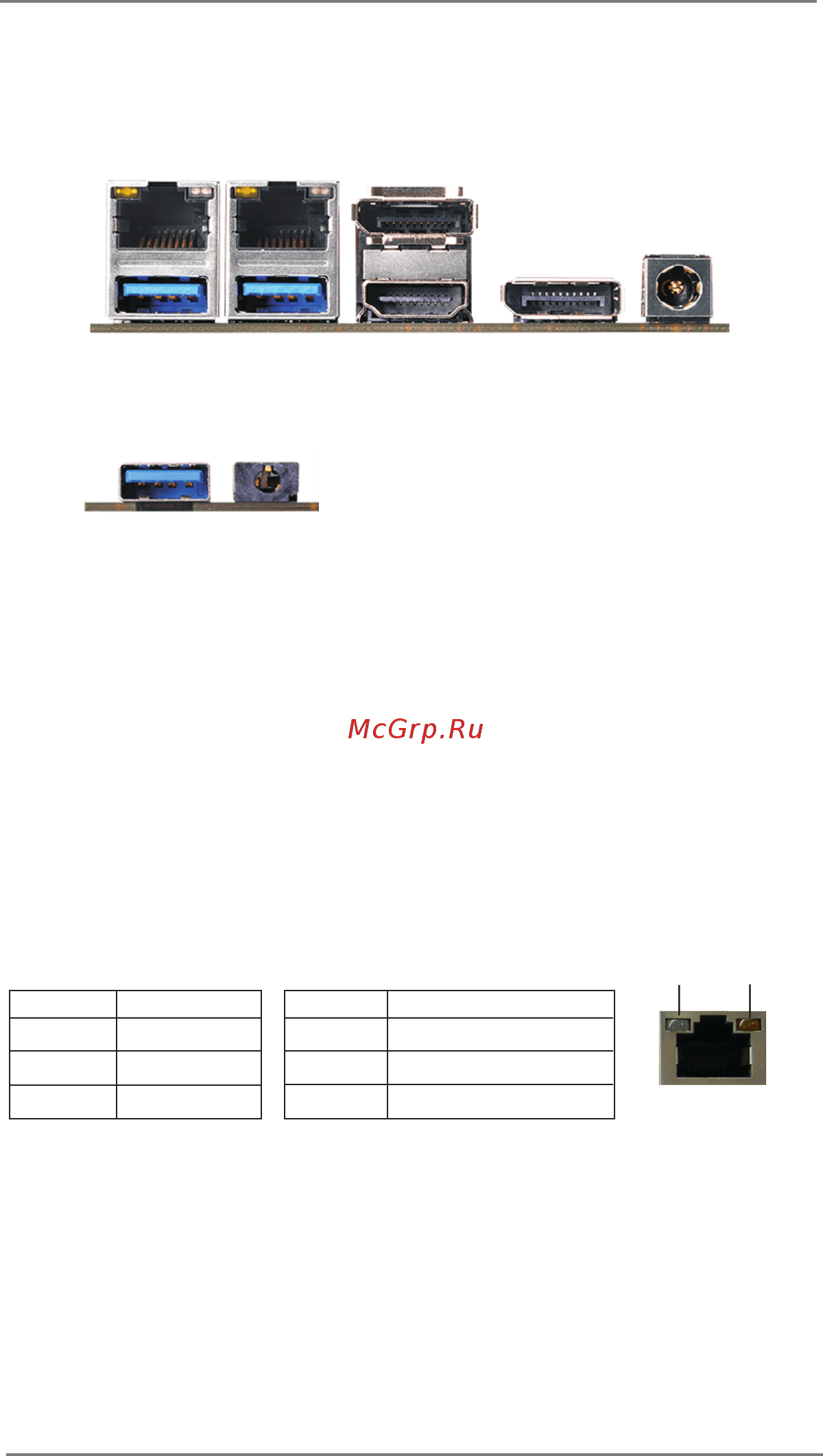

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 LAN RJ-45 Port (LAN1)*
2 USB 3.0 Port (USB3_1)
3 LAN RJ-45 Port (LAN2)*
4 USB 3.0 Port (USB3_3)
5 DisplayPort (DP2)
6 HDMI Port (HDMI1)
7 DisplayPort (DISPLAY1)
8 DC-In Jack (DC_IN1)
9 USB 3.0 Port (USB3_2)
10 Audio Jack (AUDIO1)
3
4
5
6
7
8
1
2
9
10
