M2X4-SATA-4P

Package Contents

•

1 x Screw (M2*2)

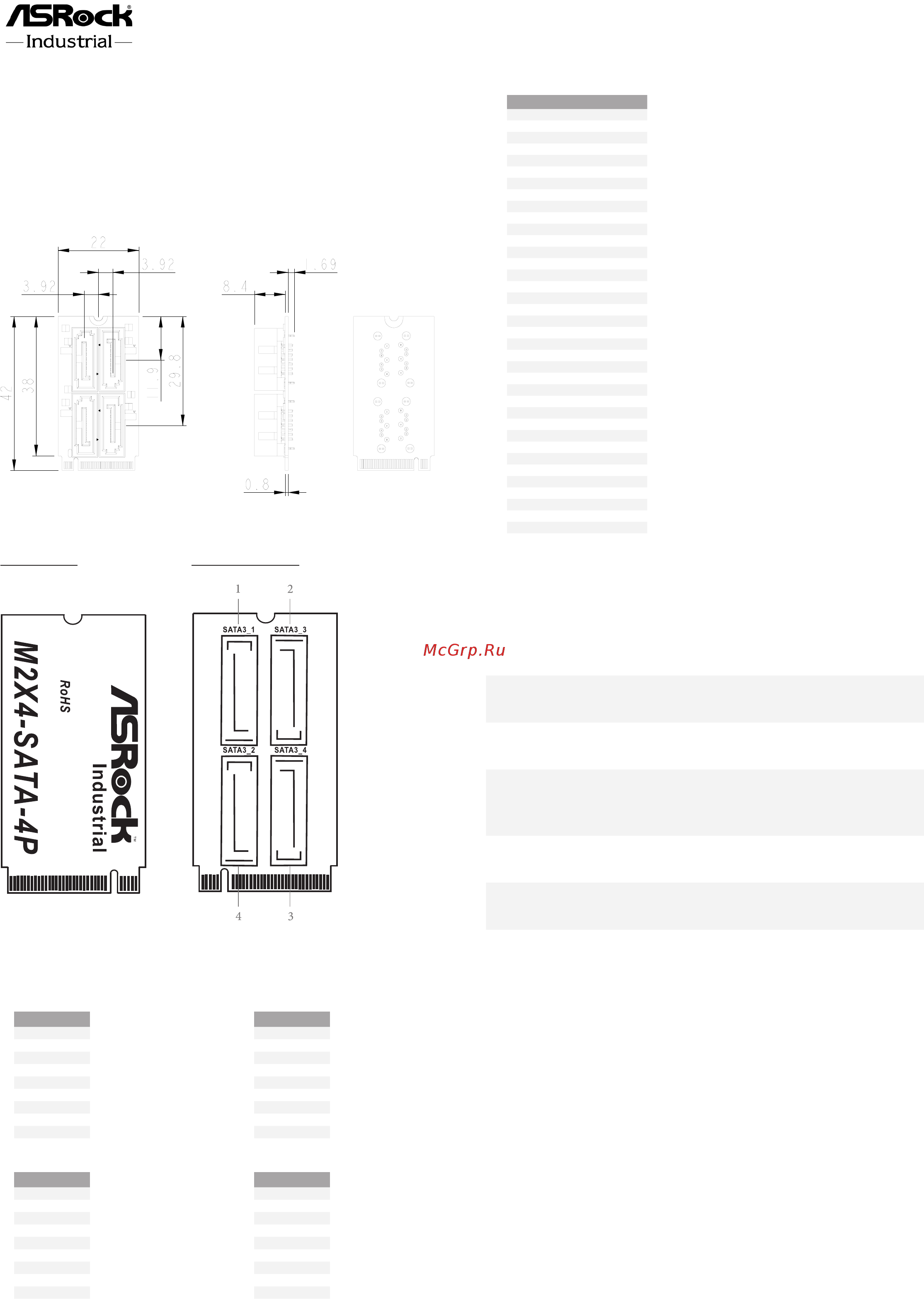

Mechanical Drawing

Card Layout

Top Layer Bottom Layer

Jumpers/Headers Denition

1. SATA3 Connector (SATA3_1) 2. SATA3 Connector (SATA3_3)

3. SATA3 Connector (SATA3_4) 4. SATA3 Connector (SATA3_2)

Function

•

PCIE x4 to SATA x4 card

Form Factor

•

M.2 Key M 2242

Controller / Major IC

•

N/A

Input I/F

•

PCIe Gen3 x4 (Flexible I/O

needed)

Output I/F

•

SATA3 x 4

Dimensions (W x L x H/mm)

•

22mm x 42mm x 9.31mm

Operating Temperature

•

0ºC ~ 60ºC

Specications

SATA3_1

1 GND

2 SATA_TXP1

3 SATA_TXN1

4 GND

5 SATA_RXN1

6 SATA_RXP1

7 GND

8 GND

9 GND

PIN Signal PIN Signal

74 N/C

75 GND

72 N/C

73 N/C

70 N/C 71 GND

N/C

M.2_SEL

67 N/C

58 N/C

56 N/C 57 GND

54 N/C 55 N/C

52 N/C 53 N/C

50 N/C 51 GND

48 N/C 49 SATA_TXP1

46 N/C 47 SATA_TXN1

44 N/C 45 GND

42 N/C 43 SATA_RXN1

40 N/C 41 SATA_RXP1

38 N/C 39 GND

36 N/C 37 SATA_TXP2

34 N/C 35 SATA_TXN2

32 N/C 33 GND

30 N/C 31 SATA_RXP2

28 N/C 29 SATA_RXN2

26 N/C 27 GND

24 N/C 25 SATA_TXP3

22 N/C 23 SATA_TXN3

20 N/C 21 GND

18 N/C 19 SATA_RXP3

16 N/C 17 SATA_RXN3

14 N/C 15 GND

12 N/C 13 SATA_TXP4

10 N/C 11 SATA_TXN4

8 N/C 9 GND

6 N/C 7 SATA_RXP4

4 N/C 5 SATA_RXN4

2 N/C 3 GND

1 GND

* Key-M M.2 Socket

SATA3_3

1 GND

2 SATA_TXP3

3 SATA_TXN3

4 GND

5 SATA_RXN3

6 SATA_RXP3

7 GND

8 GND

9 GND

SATA3_4

1 GND

2 SATA_TXP4

3 SATA_TXN4

4 GND

5 SATA_RXN4

6 SATA_RXP4

7 GND

8 GND

9 GND

SATA3_2

1 GND

2 SATA_TXP2

3 SATA_TXN2

4 GND

5 SATA_RXN2

6 SATA_RXP2

7 GND

8 GND

9 GND
