E2+E4MV03~10A6

Kit of the motorized ON/OFF valve

4PW17554-2

Installation manual

3 Insert the bushing in the hole at the rear of the unit’s galvanized

side panel (see figure 2).

4 Pass the cable of the actuator through the hole and secure it to

the cable clamps located on the fan seat until it reaches the side

where the electrical connections are located (the side opposite

the hydraulic joint side) (see figure 3).

5 Electrical connections up to the controller

! Refer to the wiring diagram of the relative controller.

! For the connection to the FWEC1A, FWEC2A or FWEC3A

controller, place the water temperature sensor in the correct

position. Refer to the installation and user manual of the

controller in question.

6 When using the standard heat exchanger, always insolate the

valve kit with the pre-shaped insulating material supplied.

! Make sure that all the pipes, which may contain chilled water

(including the heat exchanger fittings), are well insulated.

! Use the insulating tape supplied to close the pre-shaped

insulating part and wrap it around any part that could cause

condensation.

The valve kit + insulation supplied are optimized to be

installed on the left-hand side.

7 Place back the outer covering frame.

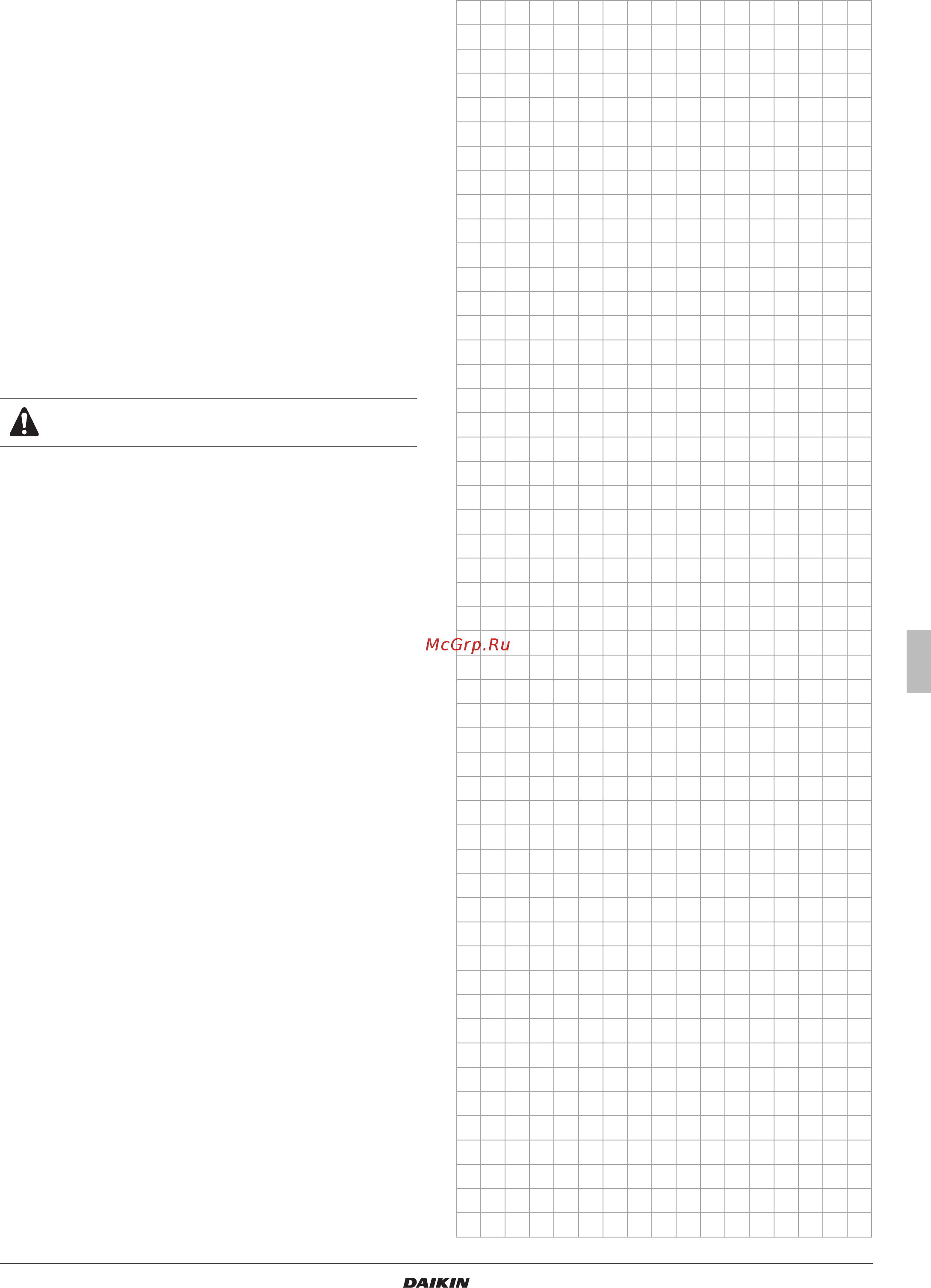

notes
