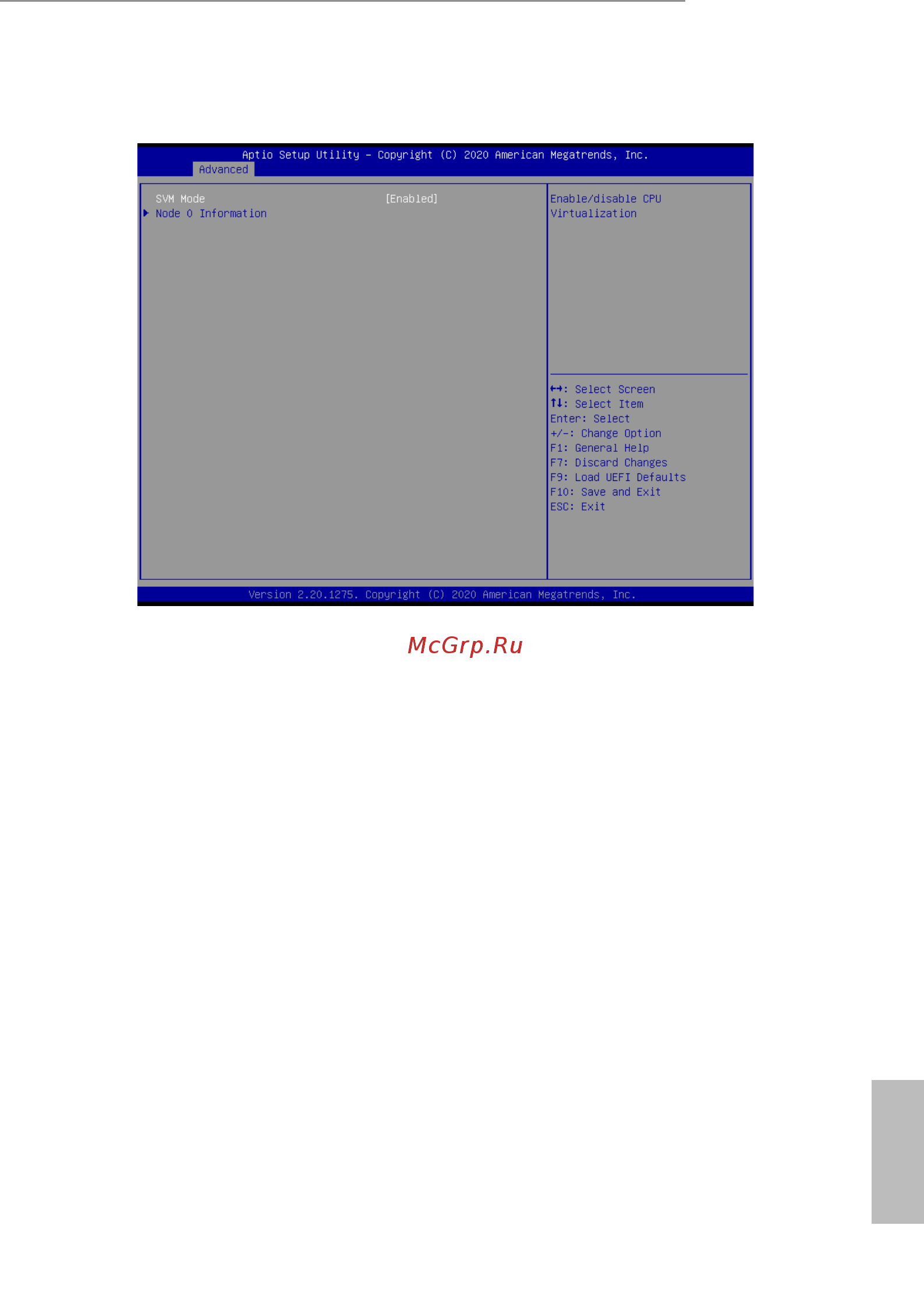

3.3.1 CPU Conguration
SVM Mode
Enable or disable CPU Virtualization.
Node 0 Information
View Memory Information related to Node 0.
