ASRock D1521D4I [52/84] English
![ASRock D1521D4I [52/84] English](/views2/1694221/page52/bg34.png)
46 47
English

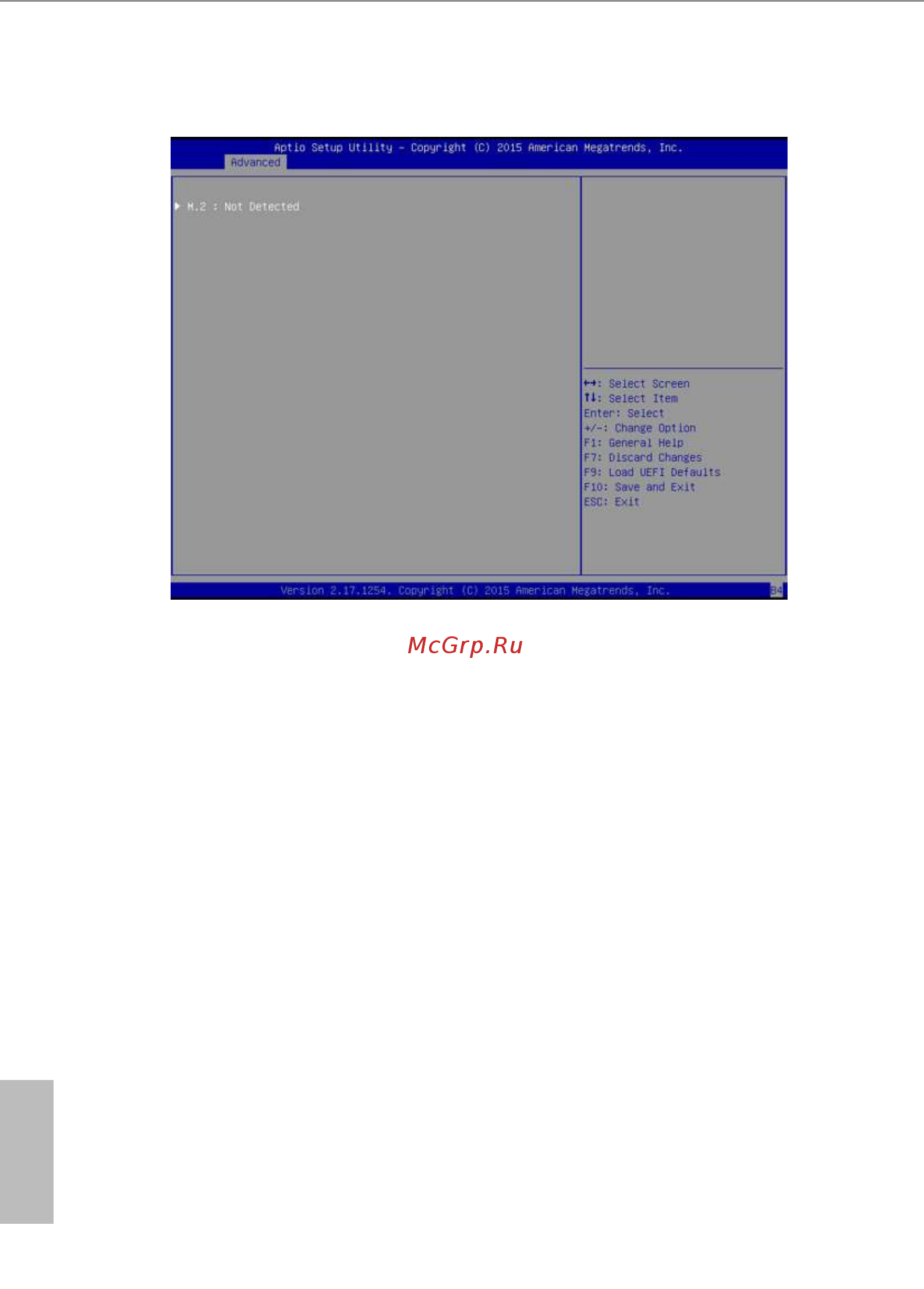

3.3.8 3rd Storage Conguration
In this section, you may set the congurations or see the information of the connected 3rd
storage device.
