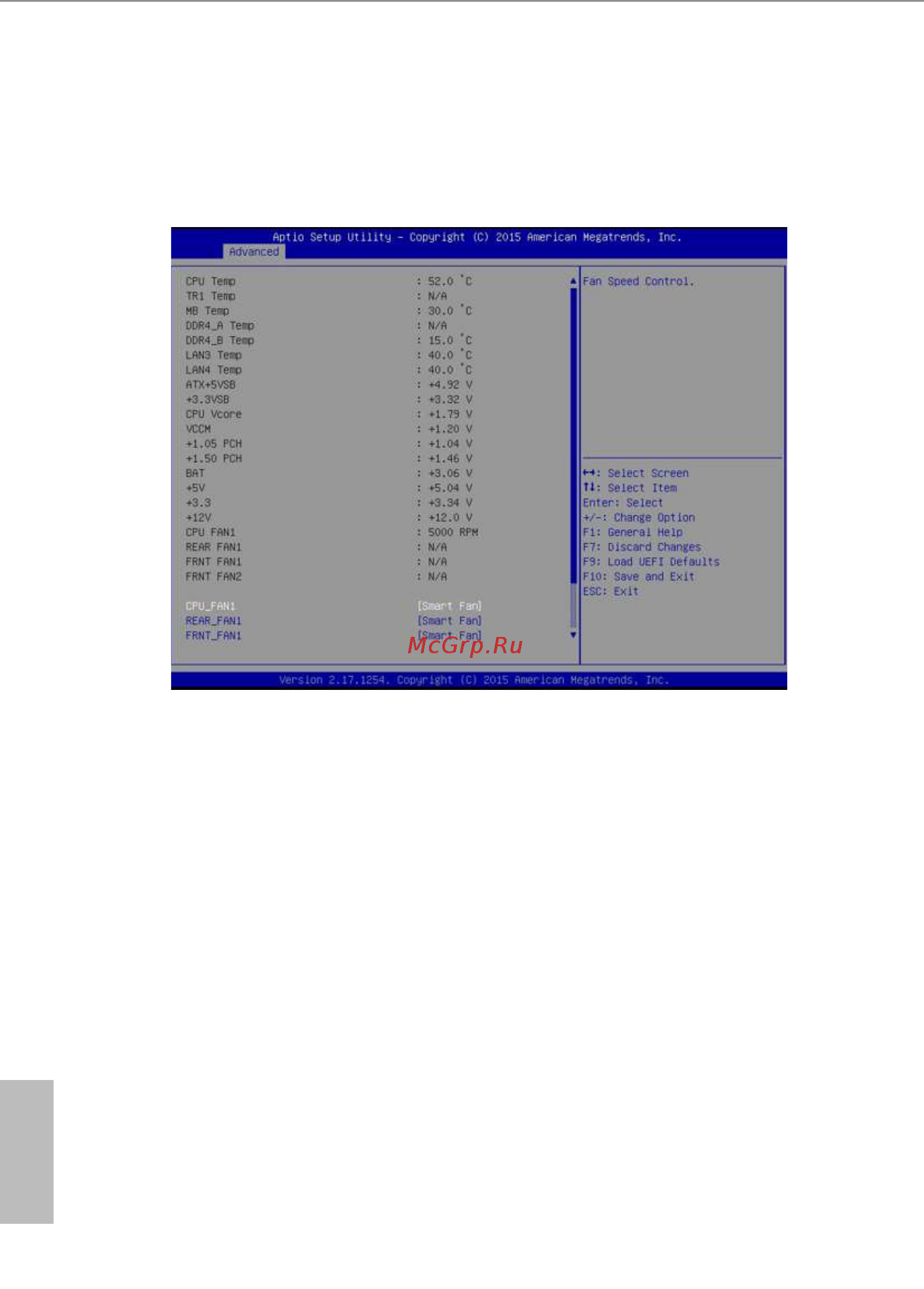

3.3.9 H/W Monitor
In this section, it allows you to monitor the status of the hardware on your system, includ-
ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed,
chassis fan speed, and the critical voltage.
CPU_FAN1
is allows you to set the CPU fan1’s speed. e default value is [Smart Fan].
REAR_FAN1
is allows you to set the rear fan 1’s speed. e default value is [Smart Fan].
FRNT_FAN1
is allows you to set the front fan 1’s speed. e default value is [Smart Fan].
FRNT_FAN2
is allows you to set the front fan 2’s speed. e default value is [Smart Fan].
Smart Fan Control
is allows you to set the Smart fan’s level speed.
Smart Fan Duty Control
Smart Fan Duty x (x means 1 to 11 stage)
is allows you to set duty cycle for each stage.
