24 25
English
1
Dummy
GND
GND
Vbus
GND
GND
IntA_PA_SSRX+
Vbus
IntA_PA_D+
IntA_PA_D-
IntA_PA_SSTX+
IntA_PA_SSTX-
IntA_PA_SSRX-
IntA_PB_SSRX-
IntA_PB_SSRX+
IntA_PB_SSTX-
IntA_PBA_SSTX+
IntA_PB_D-
IntA_PB_D+

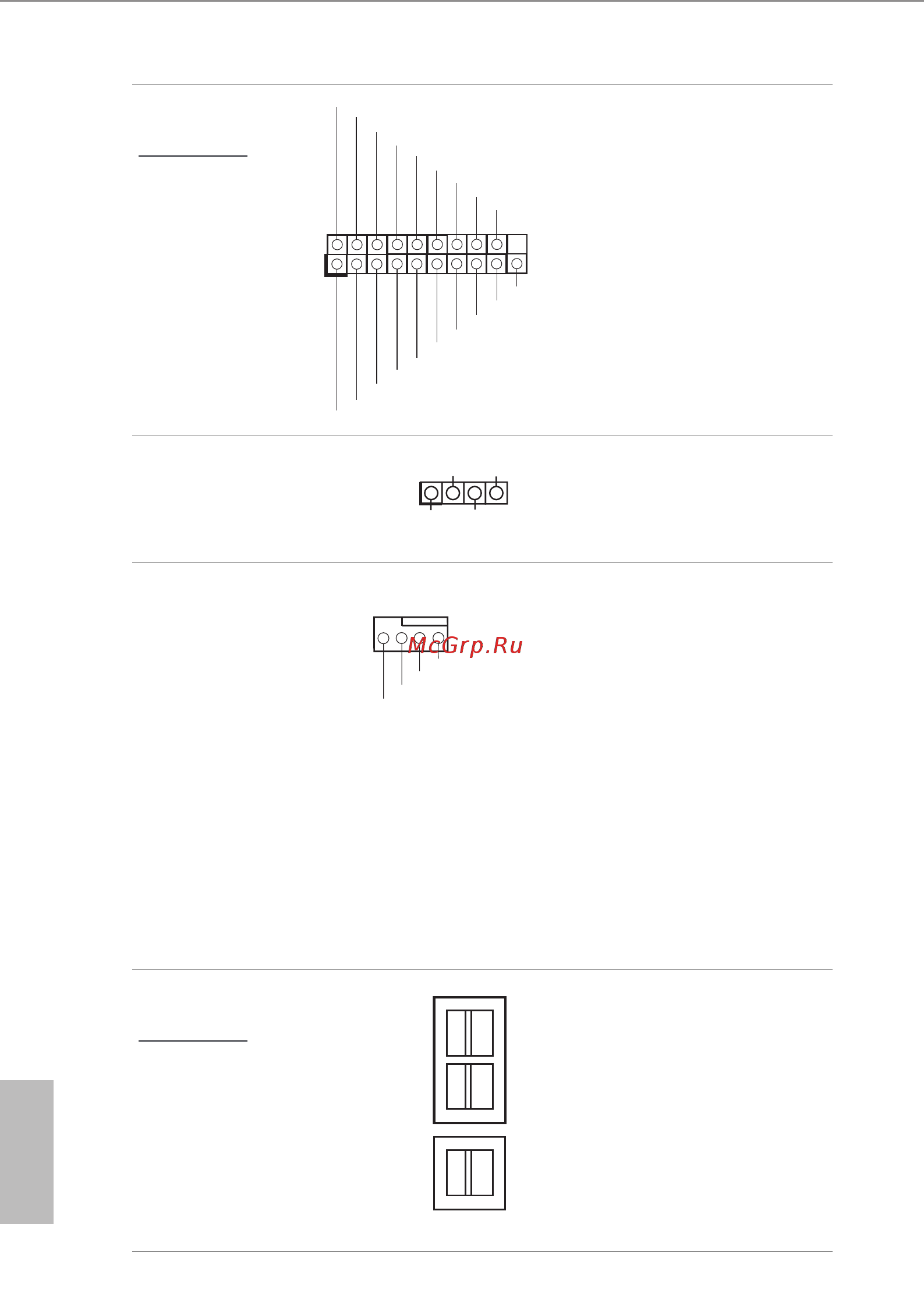

USB 3.2 Gen1 Header
Right-Angled:
(19-pin USB3_3_4)
(see p.6, No. 30)
Besides two default USB 3.2
Gen1 ports on the I/O panel,
there is one USB 3.2 Gen1
header on this motherboard.
is USB 3.2 Gen1 header can
support two USB 3.2 Gen1
ports.
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 22)
1
+5V
DUMMY
DUMMY
SPEAKER
Please connect the chassis
speaker to this header.
System Fan Connectors
(4-pin FAN1)
(see p.6, No. 6)
(4-pin FAN2)
(see p.6, No. 7)
(4-pin FAN3)
(see p.6, No. 8)
(4-pin FAN4)
(see p.6, No. 6)
(4-pin FAN5)
(see p.6, No. 7)
(4-pin FAN6)
(see p.6, No. 8)
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE_CONTROL
GND
4 3 2 1
Please connect the fan cables to
the fan connectors and match
the black wire to the ground
pin. All fans supports Fan
Control.
Mini-SAS HD Connectors
Right-Angled:
(MSAS_HD0)
(see p.6, No. 20)
(MSAS _HD1)
(see p.6, No. 21)
MSAS_HD0
MSAS_HD1
ese connectors
support MiniSAS-to-
SATA data cables for
internal storage devices
with up to 6.0 Gb/s data
transfer rate.
