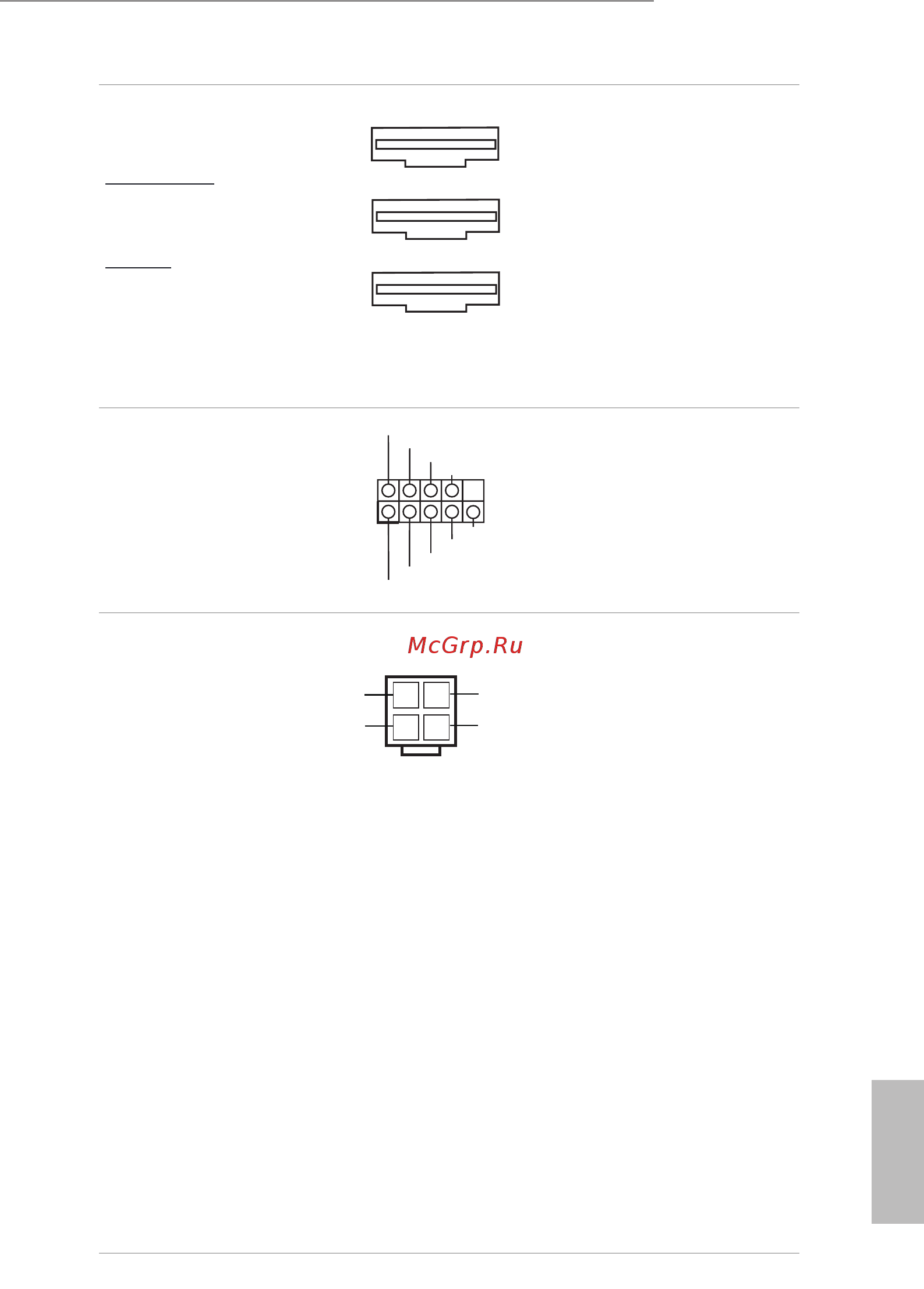

![ASRock ROMED6U-2L2T [31/78] English](/views2/1694367/page31/bg1f.png)
ROMED6U-2L2T
24 25
English
Slimline NVMe
Connectors
Right-Angled:
(SLIM1)
(see p.6, No. 18)
Vertical:
(SLIM2)
(see p.6, No. 17)
(SLIM3)
(see p.6, No. 16)
SLIM 3
SLIM 2
SLIM 1
ese connectors are used for
the NVME PCIE devices.
Serial Port Header
(9-pin COM1)
(see p.6, No. 32)
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
is COM header supports a
serial port module.
ATX 4-PIN Power
Connector
(4-pin ATX4PIN1
(ATX 24pin-to-4pin)
)
(see p.6, No. 3)
e motherboard provides one
4-pin power/signal connector
which is a required input for
ATX power source.
When using ATX power, it is
necessary to use a 24pin-to-
4pin power cable to connect
between the 24pin power
connector of PSU and the
ATX4PIN1 connector on the
motherboard for power supply
and signal communication.
For DC-IN 12V application,
it is not necessary to use this
ATX 4-PIN power connector.
*Caution: Misconnection between
the ATX4PIN1 and the SATA_PWR1
connectors may permanently damage
the motherboard.
1
2
3
4
ATX_PWROK
PSON#
GND
ATX_+5VSB
