ROMED6U-2L2T
50 51
English

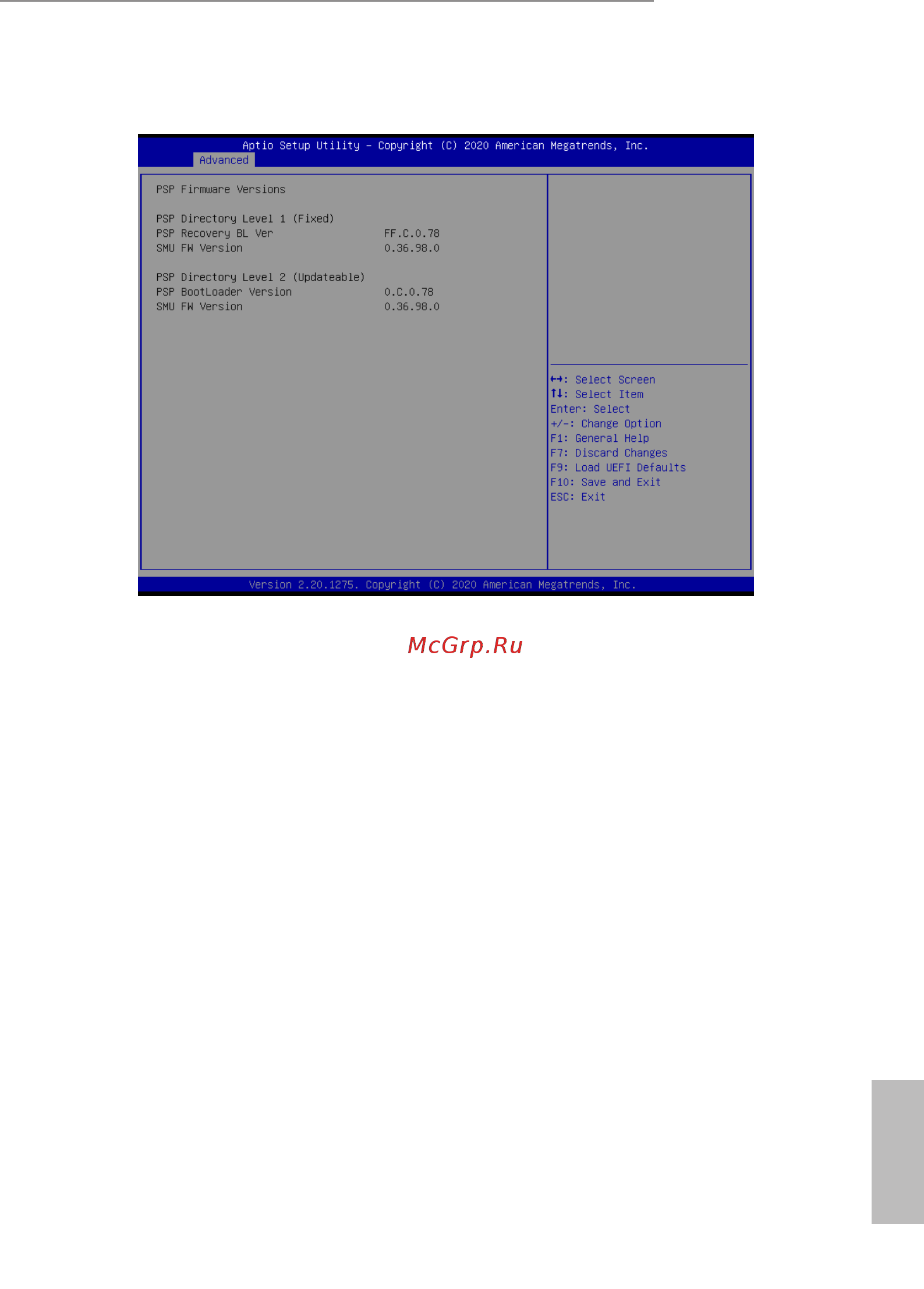

3.3.12 PSP Firmware Versions
The PSP Firmware Verions displays the version information of PSP Recovery BL, PSP
BootLoader, SMU FW, ABL, APCB, APDB, and APPB.
