ASRock EPC621D6U-2T [23/66] Advanced radius settings

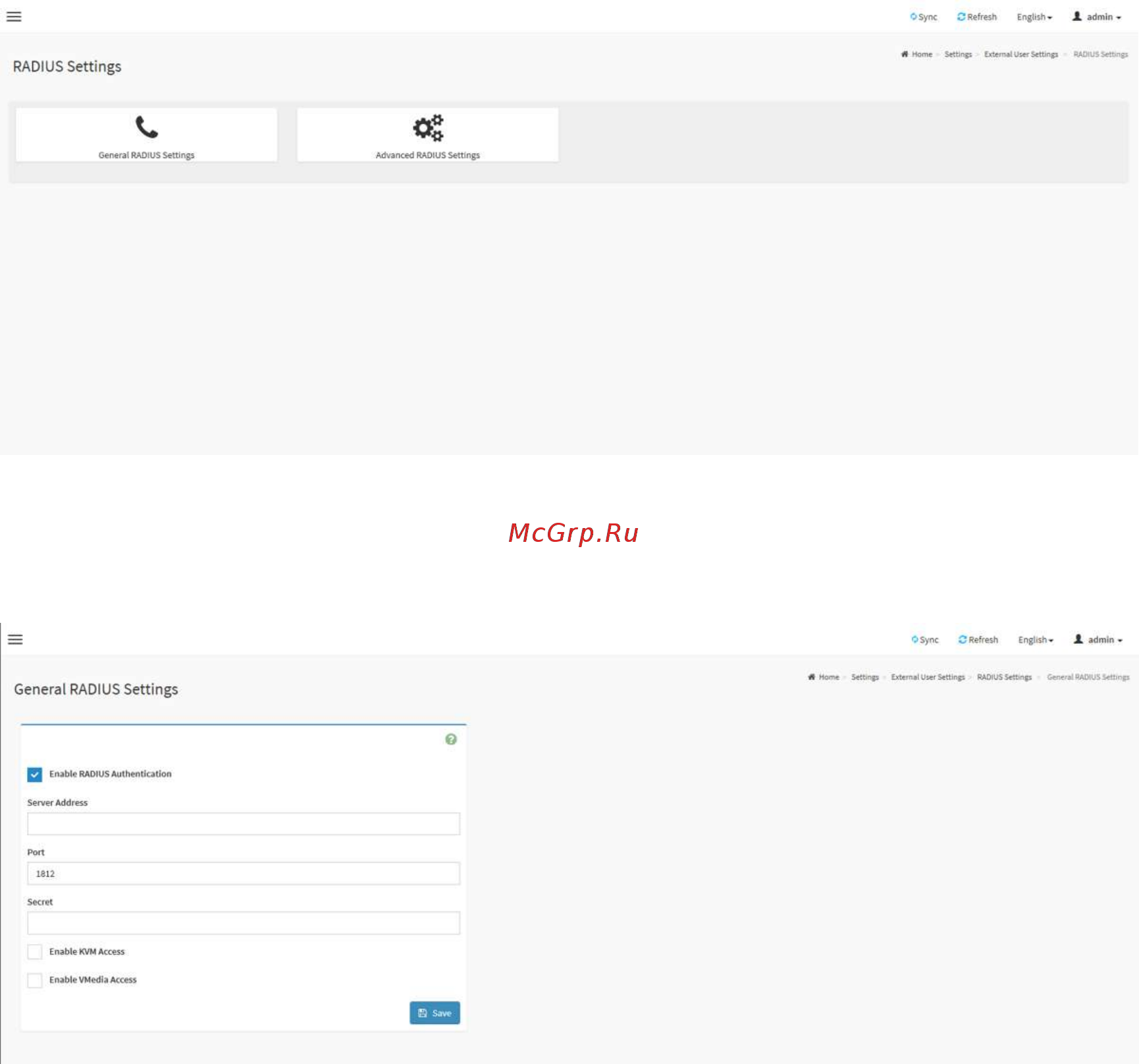

RADIUS Settings Page

General RADIUS Settings:

This page is used to configure Radius general settings.

General RADIUS Settings Page

Enable RADIUS Authentication: Check the box to enable Radius authentication.

Server Address: The IP address of Radius server.

Port: The port number of Radius server.

Secret: The authentication secret of Radius ser ver.

KVM Access: Check the box to enable KVM access for Radius authenticated users.

VMedia Access: Check the box to enable VMedia access for Radius authenticated

users.

Advanced RADIUS Settings: This page is used to configure Advanced Radius

authorization setting.
