Retry Time Interval(Seconds): This option is used to give time interval for each

attempts.

Automatically OFF Server Monitor, When KVM Launches: Check the box to enable

Automatically OFF Server Monitor, When KVM Launches.

Note:

It will automatically close the existing remote redirection either KVM or Virtual media sessions on

Single Port enable/Disable or KVM Encryption Enable/Disable.

3.7.6 Network Settings

This page is used to configure the network settings for the available LAN channels.

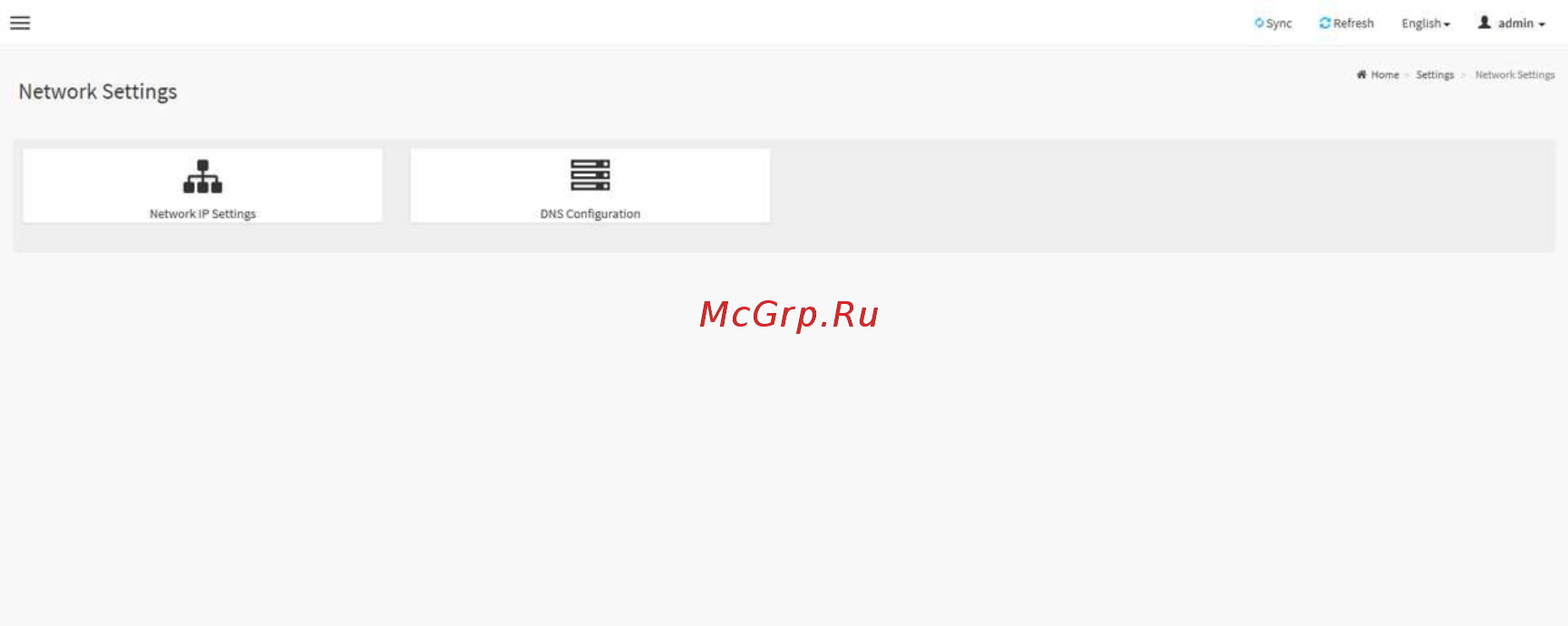

Network Settings Page

3.7.6.1 Network IP Settings

This page is used to configure the network IP settings.
