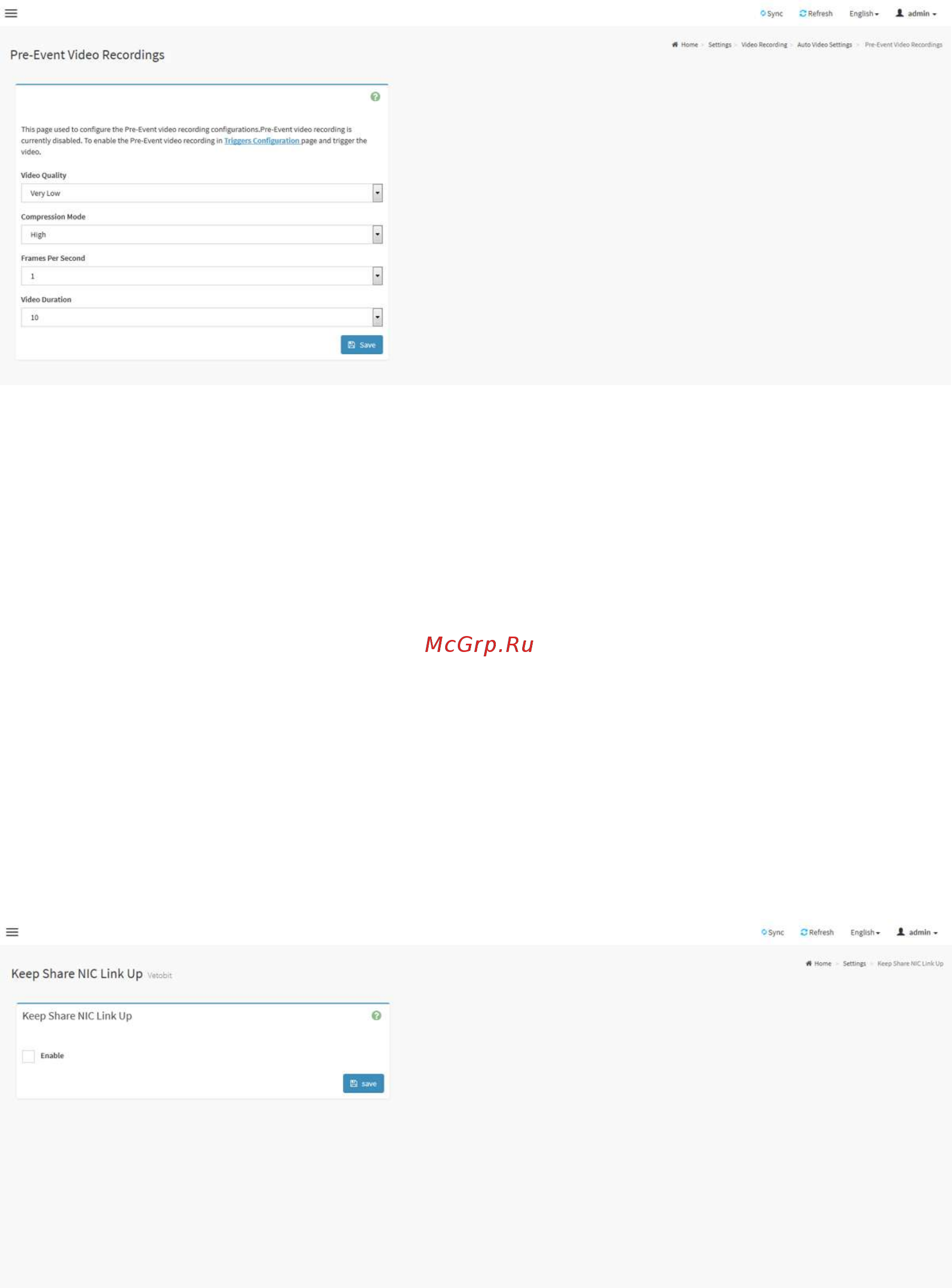

Pre-Event Video Recording Page

Video Quality: To set video quality, select ranges from the drop-down list.

Compression Mode: To set compression mode, select modes from the drop-down

list.

Frames Per Second: To set number of frames per second, select frames/sec (1-4)

from the drop-down list.

Video Duration: To set duration of video, select second (10-60) from the drop-down

list.

3.7.15 Keep Share NIC Link Up

This page is used to configure share NIC(NCSI) PHY link up setting.

Keep Share NIC Link Up Page

Enable: Check the box to enable Keep Share NIC Link Up, share NIC PHY will keep link

up, and it could avoid share NIC disconnection while system reset.
