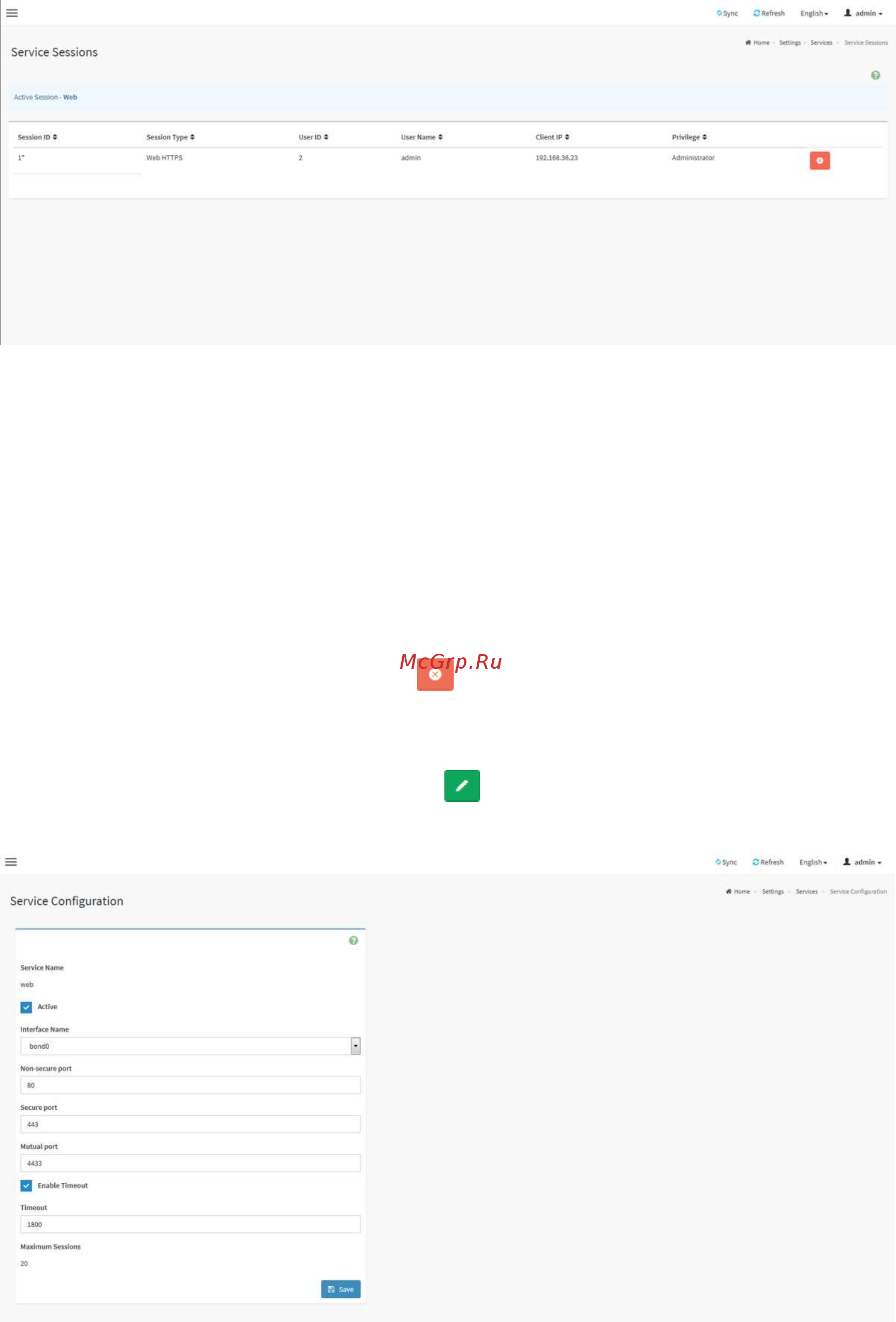

Service Sessions Page

Session ID: Displays the ID of the active sessions.

Session Type: Displays the type of the active sessions.

User ID: Displays the ID of the user.

User Name: Displays the name of the user.

Client IP: Displays the IP addresses that are already configured for the active sessions

Privilege: Displays the access privilege of the user.

Terminate Session: Click Terminate icon to terminate the particular session of

the service.

Edit the existing service: Click Edit icon to modify the configuration of the

service.

Service Configuration Page
