ASRock EP2C621D8 [51/86] Storage configuration
![ASRock EP2C621D8 [51/86] Storage configuration](/views2/1694426/page51/bg33.png)
EP2C621D8 / EP2C621D8-16R
44 45
English

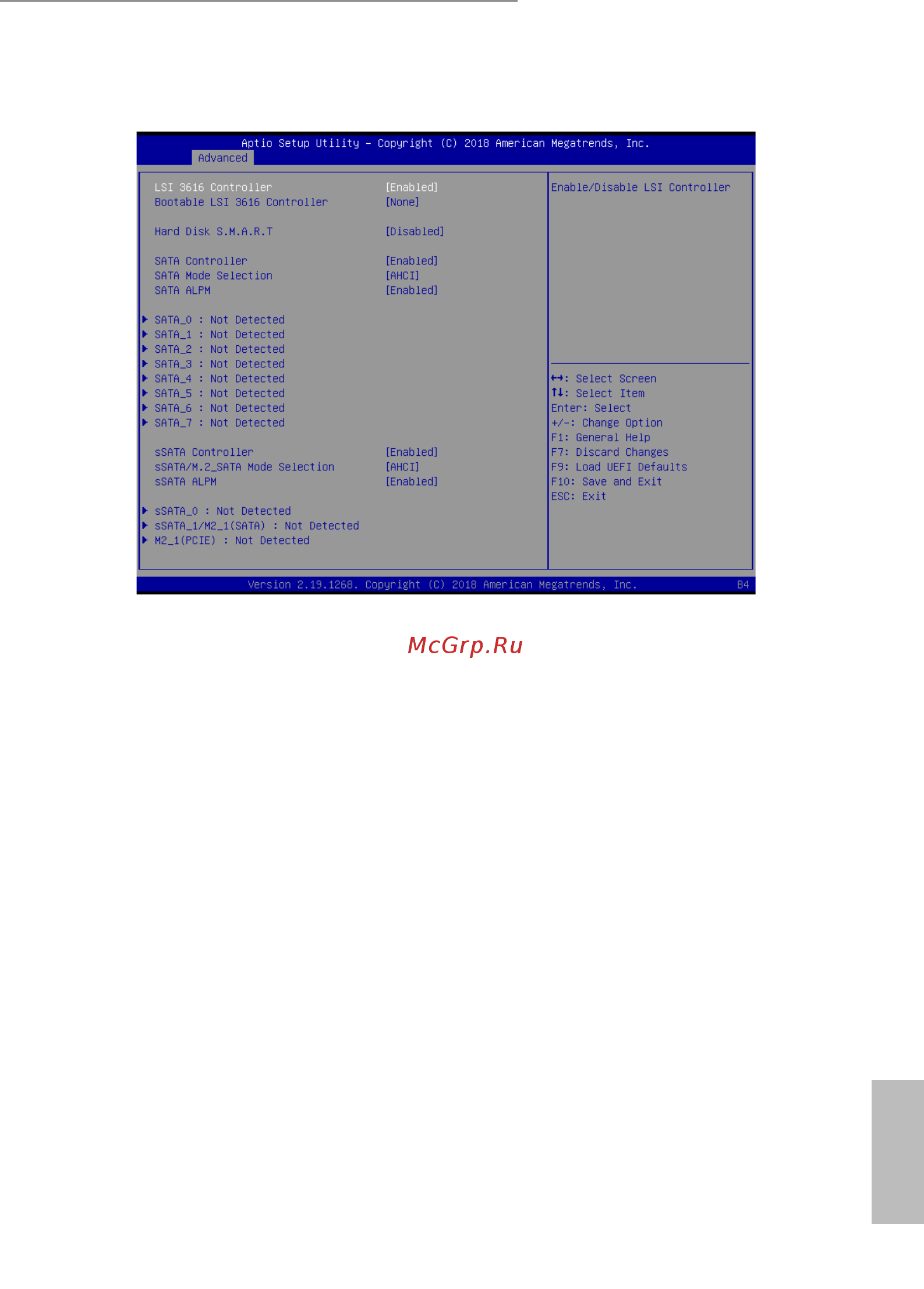

3.3.4 Storage Conguration
LSI 3616 Controller
(EP2C621D8-16R only)
Use item to enable or disable LSI Controller.
Bootable LSI 3616 Controller
(EP2C621D8-16R only)
Use item to enable or disable Bootable LSI Controller.
Hard Disk S.M.A.R.T.
Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting
Technology) feature. Conguration options: [Disabled] and [Enabled].
SATA Controller
Use this item to enable or disable SATA Controllers.
SATA Mode Selection
Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. Press
<Ctrl+I> to enter RAID ROM during UEFI POST process.
SATA ALPM
Use this item to enable or disable SALP.
