36 37
English

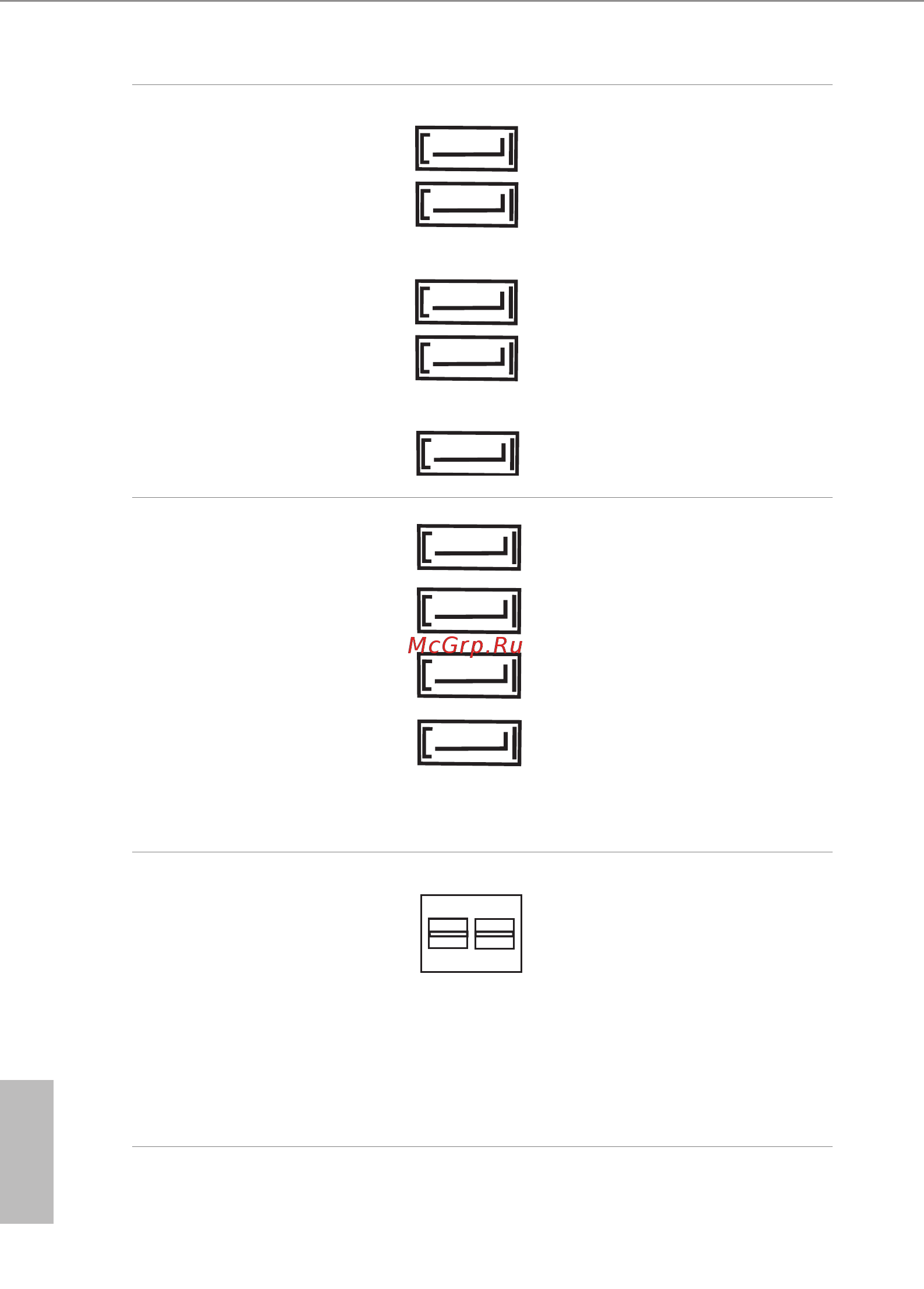

Serial ATA3 Connectors
(SATA_0)
(SATA_1)
(SATA_2)
(SATA_3)
(SATA_4)
(SATA_5)
SA TA_4
SA TA_5
SA TA_2
SA TA_3
SA TA_0
SA TA_1
ese ten SATA3 connectors
support SATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate.
SCU Connectors
(SCU_0)
(SCU_1)
(SCU_2)
(SCU_3)
SCU_0
SCU_3
SCU_2
SCU_1
is SCU connector
supportsSATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate. For connecting SAS
HDDs, please contact SAS
data cable dealers.
Mini SAS HD Connector
(LSI_SAS_0_7)
*Not supported for EP2C612D8
motherboard
LSI_SAS_0_7
is Mini SAS HD connector
supports SAS/ SATA data
cables for internal storage
devices.
e current SAS3/SATA3
interface allows up to 12.0
Gb/s data transfer rate. For
connecting SAS HDDs, please
contact SAS data cable dealers.
