EP2C612D8 Series
36 37
English

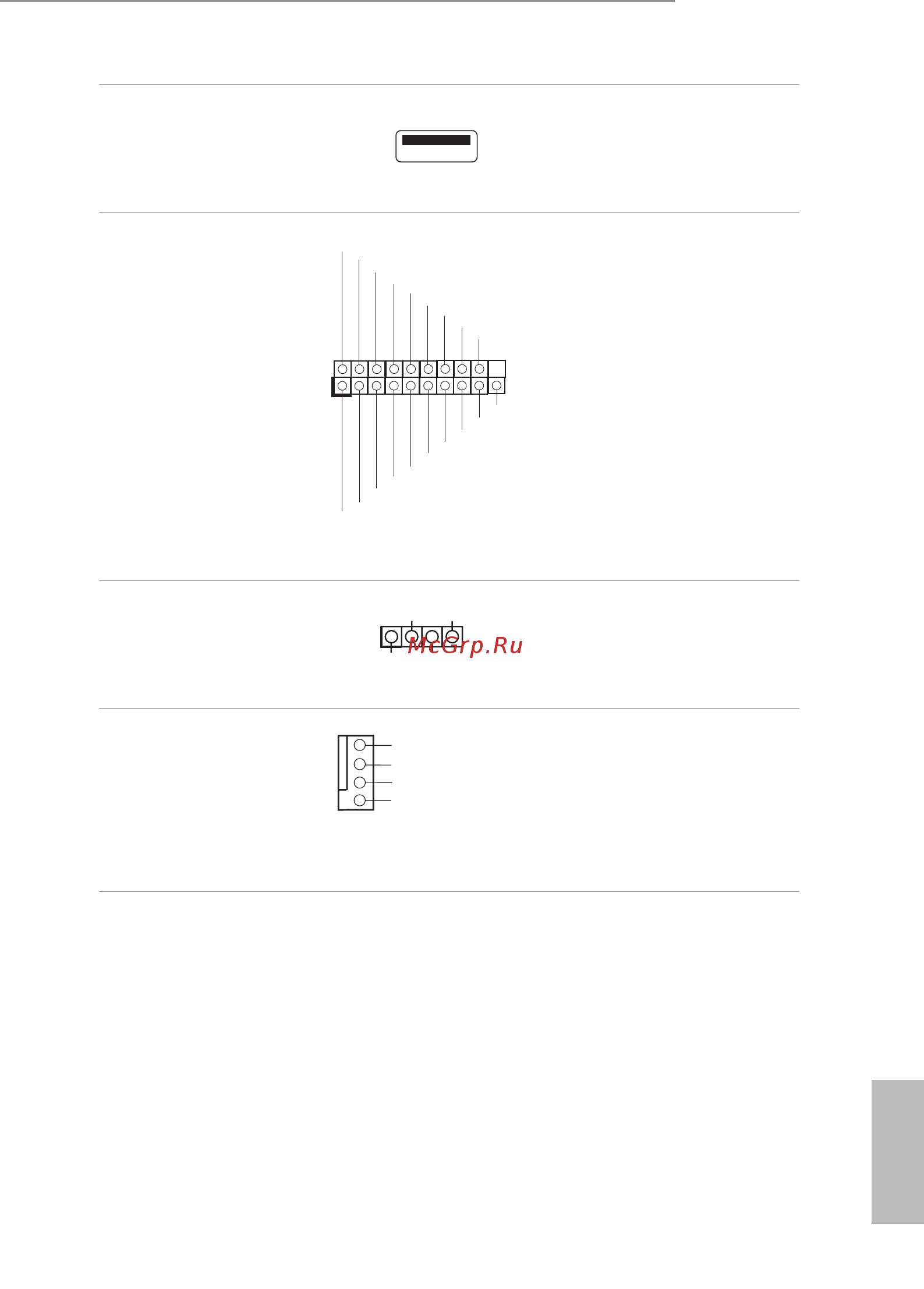

USB 2.0 Connector
(USB3_5)
USB 3.0 Header
(19-pin USB3_2_3)
1
Dummy
GND
GND
Vbus
GND
GND
IntA_PA_SSRX+
Vbus
IntA_PA_D+
IntA_PA_D-
IntA_PA_SSTX+
IntA_PA_SSTX-
IntA_PA_SSRX-
IntA_PB_SSRX-
IntA_PB_SSRX+
IntA_PB_SSTX-
IntA_PBA_SSTX+
IntA_PB_D-
IntA_PB_D+
Besides two default USB 3.0
ports on the I/O panel, there
is one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
Chassis Speaker Header
(4-pin SPEAKER1)
1
+5V
DUMMY
DUMMY
SPEAKER
Please connect the chassis
speaker to this header.
CPU Fan Connectors
(4-pin CPU1_FAN)
(4-pin CPU2_FAN)
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
is motherboard provides
two 4-Pin CPU fan (Quiet
Fan) connectors. If you plan
to connect a 3-Pin CPU fan,
please connect it to Pin 1-3.
