Installation ED43-441
62 Packaged Air Conditioners UATY-K Series

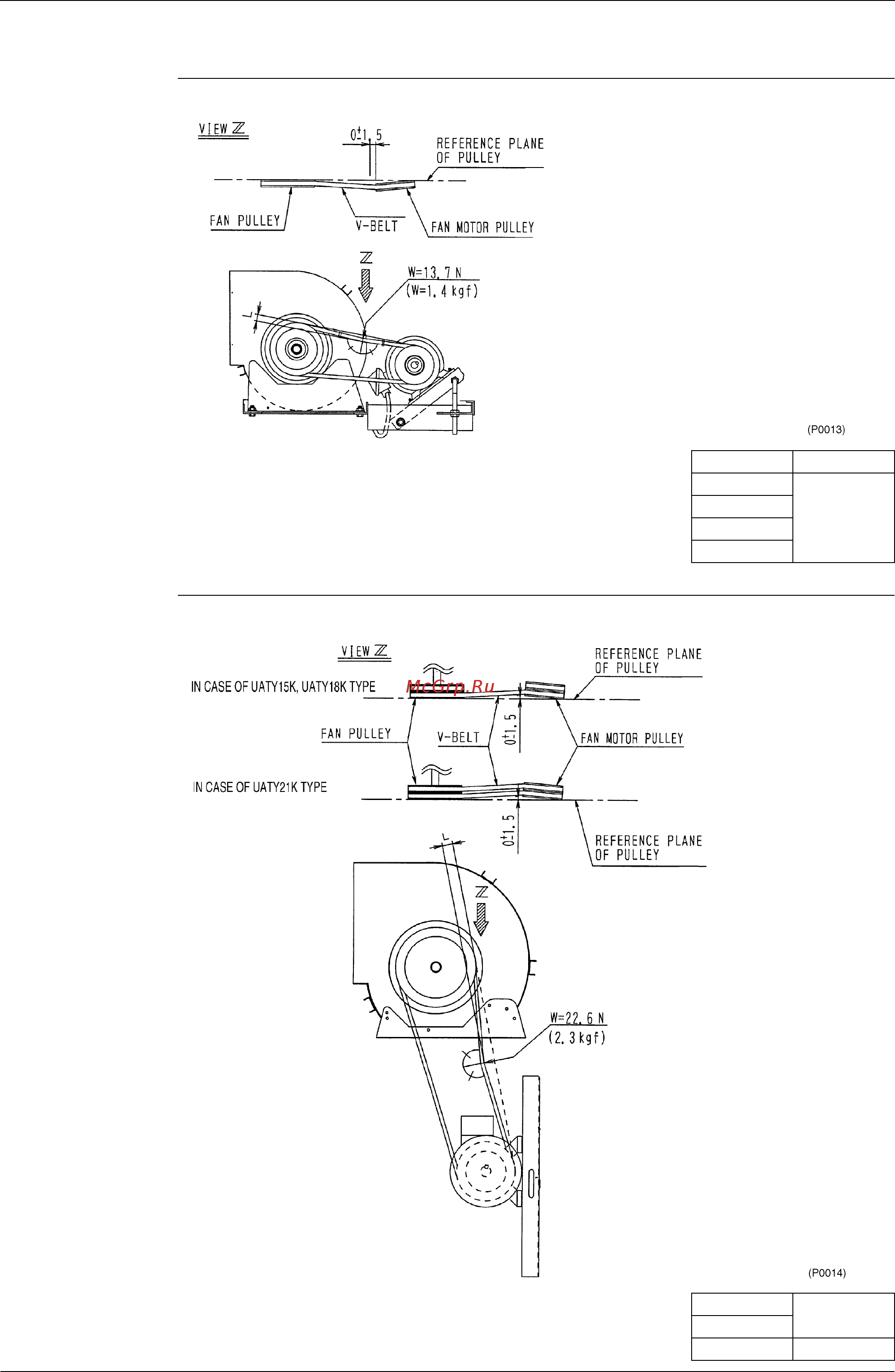

14.2 How to Install Pulley
UATY06K
UATY08K
UATY09K
UATY10K
UATY12K
UATY15K
UATY18K
UATY21K
UATY06K L = 5mm
UATY08K
L = 6mm
UATY09K
UATY10K
UATY12K
UATY15K
L = 4mm
UATY18K
UATY21K L = 8mm
